# Buzzer Check

#Required Tools

---

#Estimate Time

Approx. 1 min.

#Startup Mode

Repair mode

#Standard Values

---

#Step

1. Start the printer in repair mode. Turn the power on while touching [Screen Center], and keep pressing until the mode select screen is displayed. Touch the center of the panel to start repair mode.

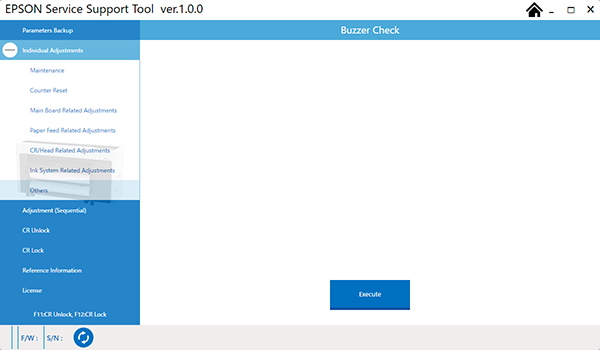

2. Start the Service Program, and select Cutter Motor Measurement & Auto Adjustment.Buzzer CheckをSelect

3. Click [Execute] to run the Buzzer Check.

4. If the check finished unsuccessfully, check that the cable is connected properly and then run the check again. If the check still fails, there is a problem with the Buzzer Unit. Replace it.
