Printing Flow

The outline of the printing operation will be described. The printing flow is as follows.

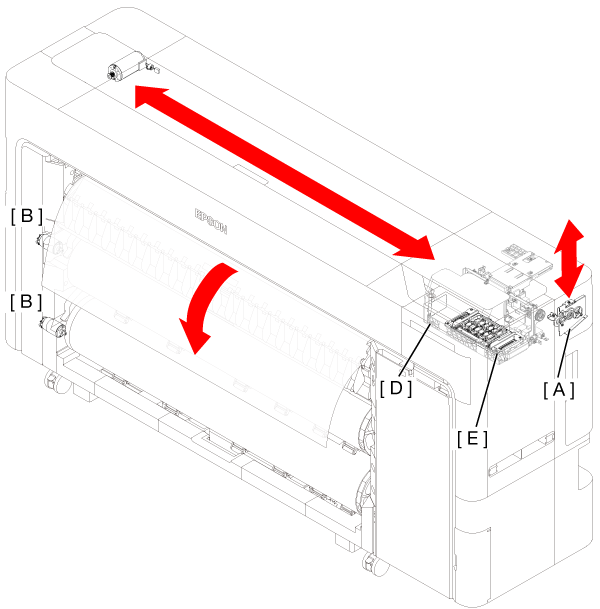

  1. Adjust the height of the PG with respect to the media with the APG unit (A).
  2. Feed the roll paper to be printed by the 1st Roll Paper Motor (B) or the 2nd Roll Paper Motor (B)*11*2
  3. CR unit is operated by CR motor (C), and media is detected by PW sensor (D).
  4. Print by the print head (E).

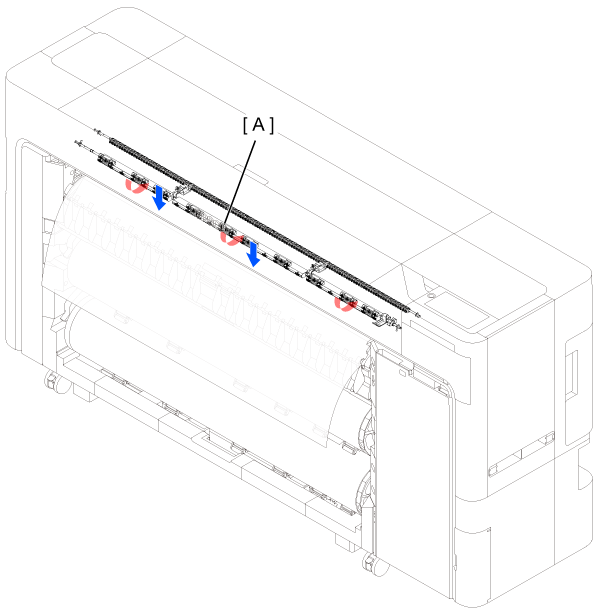

    • *1: Depending on the media used, the media is held by the Paper Eject Star Wheel Roller Unit (A).
    • *2: If the media is 30 inches or less, use the shutter mechanism (A) to narrow the suction range of the platen suction fan. (Note: only the 44-inch size printers have the shutter mechanism)
