# 2nd Roll Paper Motor Assy / 2nd Roll Paper Gears

1. Insert a flathead screwdriver and release the two hooks, and remove the screw cover (A).

2. Open the Printer Cover (A) and the Cutter Cover (B).

3. Remove the three screws at the front side.

   • : Silver M3x10 Cup P-tite screw
   • : Silver M3x8 Cup S-tite screw
4. Remove the screw at the top side.

   • : Silver M3x8 Cup S-tite screw
5. Remove the four screws at the rear side.

   • : Silver M3x8 Cup S-tite screw with plastic washer
   • : Silver M3x8 Cup S-tite screw

6. Remove the four screws at the left side.

   • : Silver M3x8 Cup S-tite screw

7. On the printer rear side, release the dowel of the Full Side Cover Unit (A).


8. Remove the Full Side Cover Unit (A) from the dowels, and remove it while it in the direction of the arrow.


   Assemble / 組み立て

   When installing the Full Side Cover Unit (B), carefully the Head FFC (A) so that it does not damage.

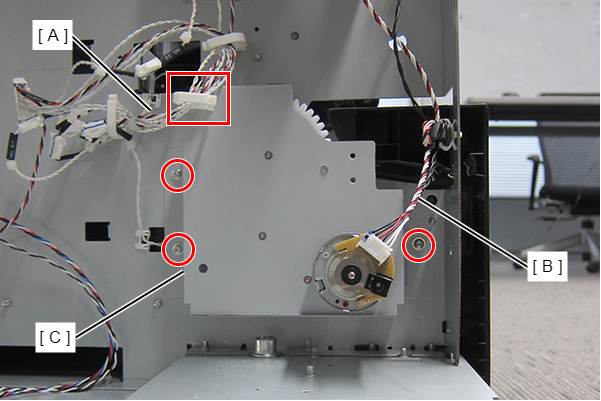

9. Release cable (A) from clamp.
10. Disconnect the cable (B) from the connector.
11. Remove the three screws, and remove the 2nd Roll Paper Motor Assy (C).

    • : Silver M3x8 Cup S-tite screw

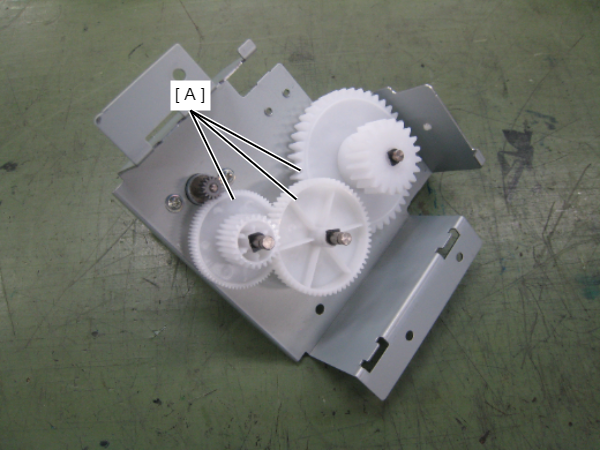

12. Remove the washer (A) and remove the 2nd Roll Paper Gears (B).


    Assemble / 組み立て

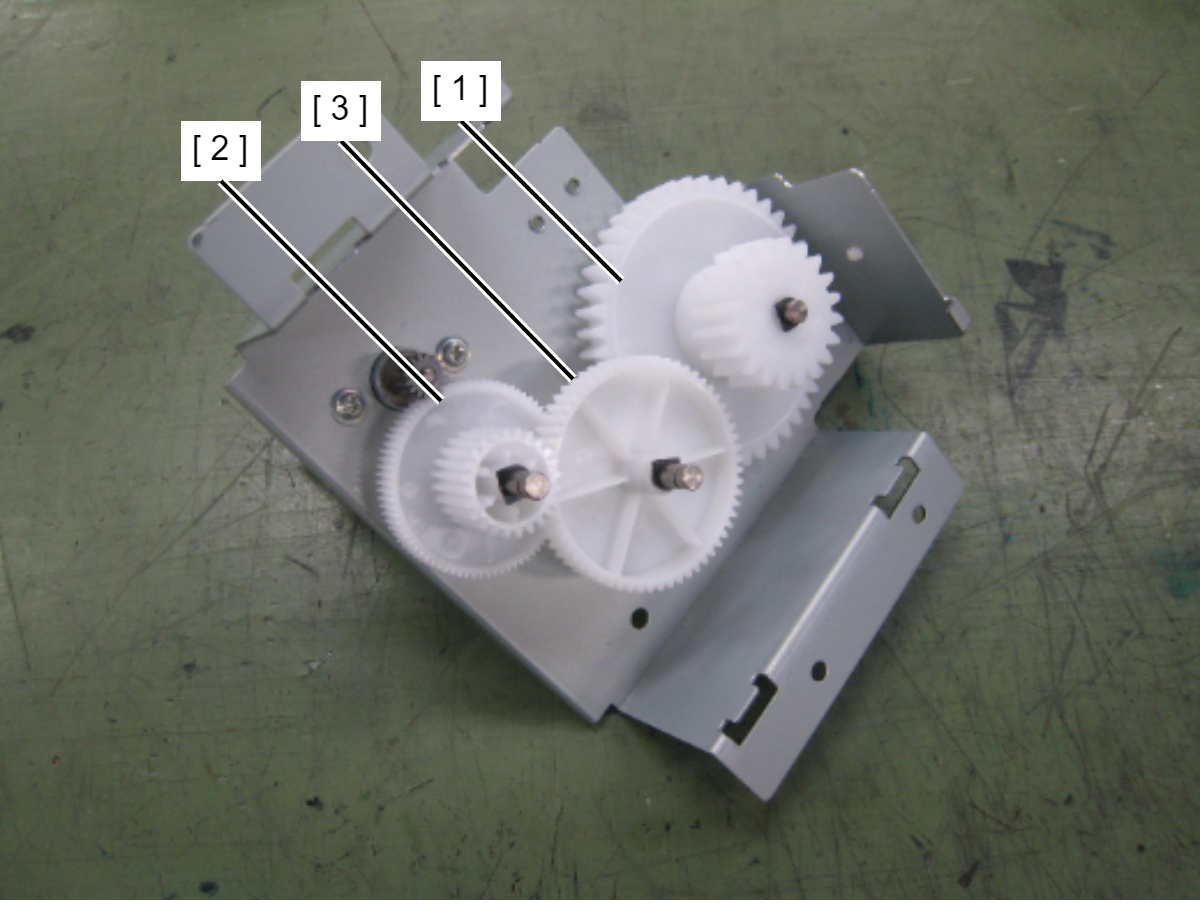

    Install the 2nd Roll Paper Gears in the order shown in the figure.
