Document Feed Scale Encoder

  1. Insert a flathead screwdriver and release the two hooks, and remove the screw cover (A).
  2. Open the Printer Cover (A) and the Cutter Cover (B).
  3. Remove the three screws at the front side.
    • : Silver M3x10 Cup P-tite screw
    • : Silver M3x8 Cup S-tite screw
  4. Remove the screw at the top side.
    • : Silver M3x8 Cup S-tite screw
  5. Remove the four screws at the rear side.
    • : Silver M3x8 Cup S-tite screw with plastic washer
    • : Silver M3x8 Cup S-tite screw
  6. Remove the four screws at the left side.
    • : Silver M3x8 Cup S-tite screw

  7. On the printer rear side, release the dowel of the Full Side Cover Unit (A).

  8. Remove the Full Side Cover Unit (A) from the dowels, and remove it while it in the direction of the arrow.

    Assemble / 組み立て

    When installing the Full Side Cover Unit (B), carefully the Head FFC (A) so that it does not damage.
  9. Push two buttons (A), and open the Scanner Unit (B). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  10. Remove the screw on the printer home side. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  11. Remove the C Shape Washer (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Black M3x4 Cup Step type S-tite screw
  12. Remove the Fixing Slider (A) from shaft. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  13. Remove the screw on the printer full side. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  14. Remove the C Shape Washer (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Black M3x4 Cup Step type S-tite screw
  15. Remove the Fixing Slider (A) from shaft. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  16. Open the Scanner Unit (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  17. Release the sensor cable (A). (Only perform for SC-P8500DL series/SC-T7700DL series)
  18. Remove the two screws. (Only perform for SC-P8500DL series/SC-T7700DL series)

    • : Silver M3x8 Cup S-tite screw
  19. Remove the screw, and then remove the Scanner Full Side Front Cover (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Silver M3x8 Cup S-tite screw
    Check Point / チェックポイント
    • Scanner Full Side Front Cover of SC-T5700DM series
  20. Remove the FFD (B) from the connector of the Document Feed Scale Encoder (A).
  21. Remove the two screws, and remove the Document Feed Scale Encoder (A).

    • : Silver M2x6 Bind P-tite screw
    Assembly / 組み立て

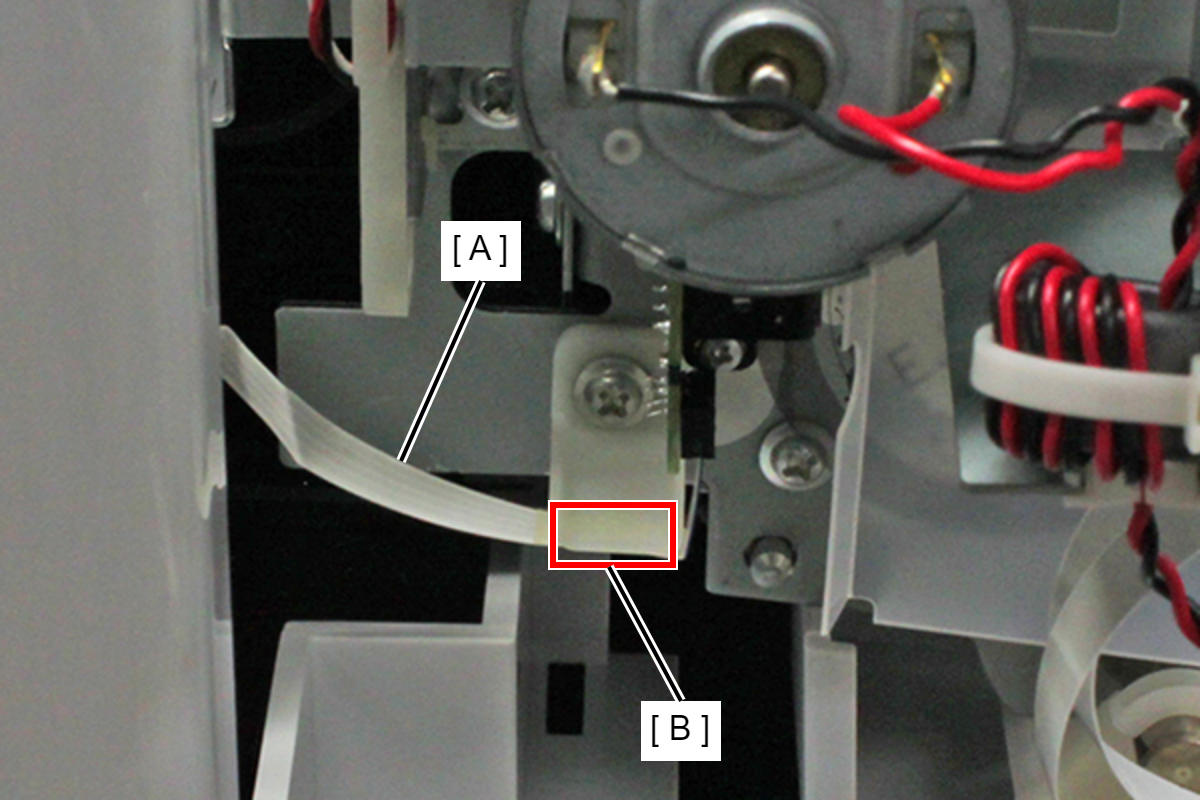

    • Secure the FFC (A) to the position shown in the figure below using double-sided tape (B).

Adjustment / 調整

When removing/replacing this part, refer to following page and make sure to perform the specified operations including required adjustment.
