# Full Side Cover E

1. Insert a flathead screwdriver and release the two hooks, and remove the screw cover (A).

2. Open the Printer Cover (A) and the Cutter Cover (B).

3. Remove the three screws at the front side.

   • : Silver M3x10 Cup P-tite screw
   • : Silver M3x8 Cup S-tite screw
4. Remove the screw at the top side.

   • : Silver M3x8 Cup S-tite screw
5. Remove the four screws at the rear side.

   • : Silver M3x8 Cup S-tite screw with plastic washer
   • : Silver M3x8 Cup S-tite screw

6. Remove the four screws at the left side.

   • : Silver M3x8 Cup S-tite screw

7. On the printer rear side, release the dowel of the Full Side Cover Unit (A).


8. Remove the Full Side Cover Unit (A) from the dowels, and remove it while it in the direction of the arrow.


   Assemble / 組み立て

   When installing the Full Side Cover Unit (B), carefully the Head FFC (A) so that it does not damage.

9. Remove the seven screws and remove the Full Side Cover A (A).

   • : Silver M3x10 Cup P-tite screw

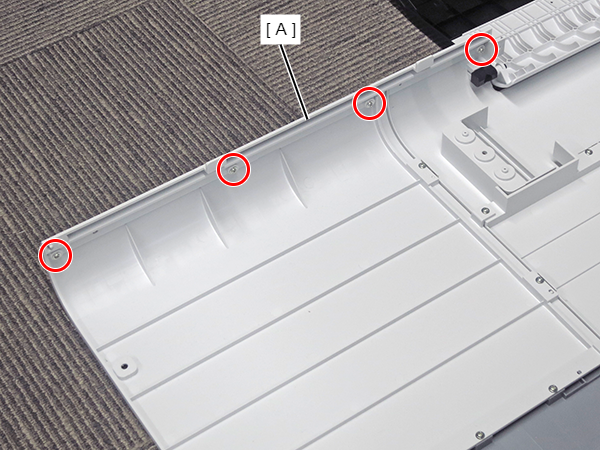

10. Remove the four screws and remove the Full Side Cover B (A).

    • : Silver M3x10 Cup P-tite screw
11. Remove the three screws and remove the Full Side Cover C (A).

    • : Silver M3x10 Cup P-tite screw

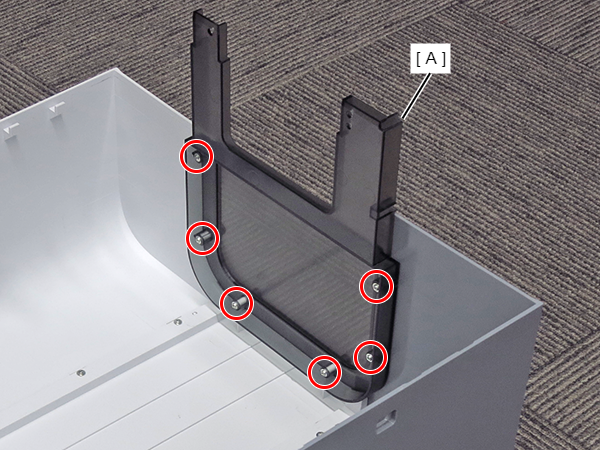

12. Remove the six screws and remove the Full Side Cover D (A).

    • : Silver M3x10 Cup P-tite screw

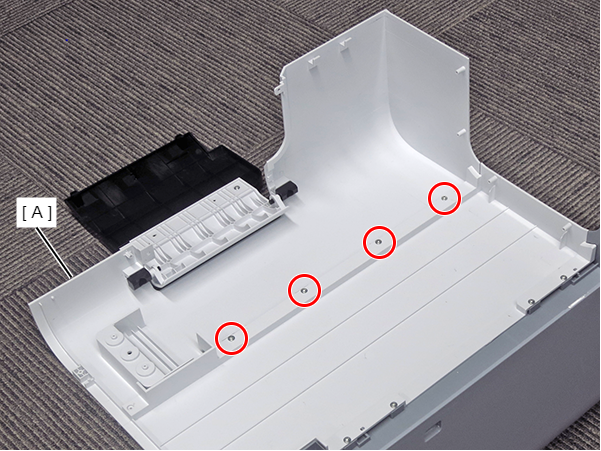

13. Remove the four screws and remove the Full Side Cover E (A).

    • : Silver M3x10 Cup P-tite screw
