# Take-up Button (CH83 SUB-S) Board

1. Open the IH Cover Unit (A). (Only perform for SC-P8500DL series/SC-T7700DL series)

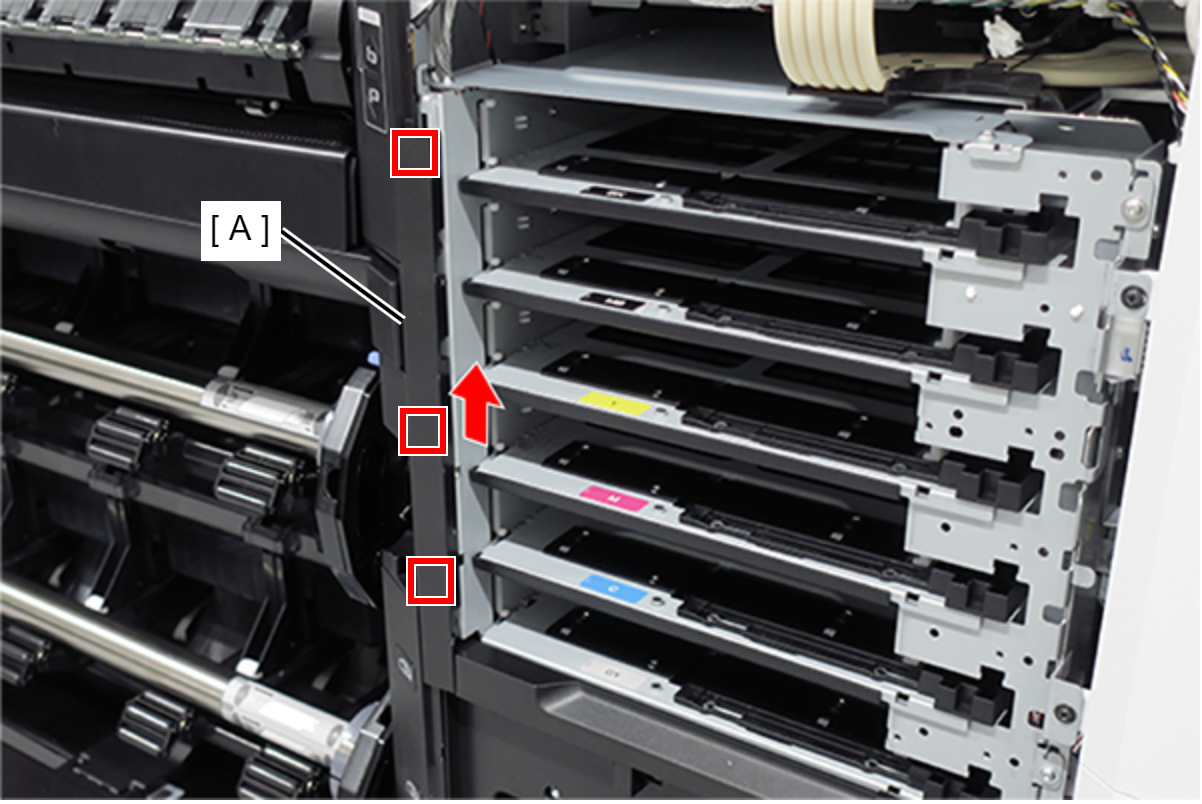

2. Slide the Ink Pack Tray Left Side (A) upwards and release the 3 hooks to remove. (Only perform for SC-P8500DL series/SC-T7700DL series)

3. Open the Ink Cartridge Cover (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

4. Remove the two screws.
5. Release the 2 hooks and then remove the Take-up Button Board Cover (A).

   • : Black M3x10 Cup P-tite screw (SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series only)
   • : Black M3x10 Cup P-tite screw (SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
   • :Black M3x6 Cup S-tite screw (SC-P8500DL series/SC-T7700DL series)
6. Remove the cable (A) from the connector.

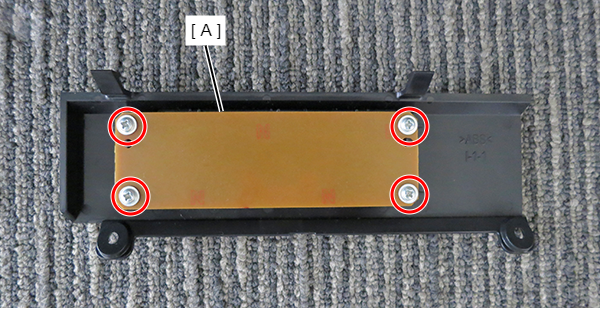

7. Remove the four screws, and remove the Take-up Button (CH83 SUB-S) Board (A).

   • : Silver M3x10 Cup P-tite screw
