Main Parts

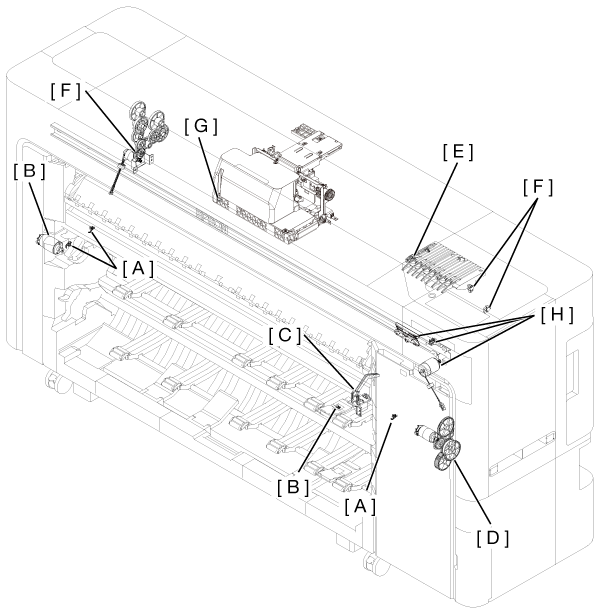

Explanation for related 1st roll paper feeding operation sensors and motors.
No. | Each Sensors/Motors | Role | Type |
|---|---|---|---|
A | 1st Roll Spindle Lock Position Detection Sensor Home | Check if there is the 1st roll spindle lock or not. | Mechanical switch |
1st Roll Spindle Lock Position Detection Sensor Full | Mechanical switch | ||
1st Roll Spindle Detection Sensor | Check for the presence of the 1st roll spindle. | Mechanical switch | |
B | 1st Roll Paper Edge Detection Sensor | Detect the paper edge. | Reflective |
1st Roll Paper Motor Assy | The motor for paper feeding the 1st roll. | － | |
C | 1st Roll Paper Detection Sensor Unit | Detects the position of the 1st roll paper arm and the presence or absence of 1st roll paper. | Through beam |
D | ASF Motor Unit/ASF Gears | Operate the 1st roll arm. | － |
E | BPE Sensor | Detects the presence or absence of roll paper and paper jam. | Reflective |
F | 1st/2nd Release Motor | PF driven / Sub PF driven roller move to Nip / Release position. | － |
ASF sub Gears | |||
PF Release Sensor | Check if the PF driven roller is Nip. | Through beam | |
Sub PF Driven Sensor | Check if the Sub PF driven roller is Nip. | Through beam | |
G | CR unit PW sensor | Detect for paper jam detection / paper edge / both ends detection of paper | Reflective |
H | Cutter / Cutter Motor Unit | Cut the media. | - |
Cutter Home Position Detect Sensor | Detect the cutter home position. | Through beam |
