# SC-P8500DM series/SC-T7700DM series/SC-T5700DM series

Check Point / チェックポイント

Each icon in the flowchart has the following meaning. : Parts required to be replaced (adjusted) before starting the disassembly process : Parts required to be lubricated when replacing the parts

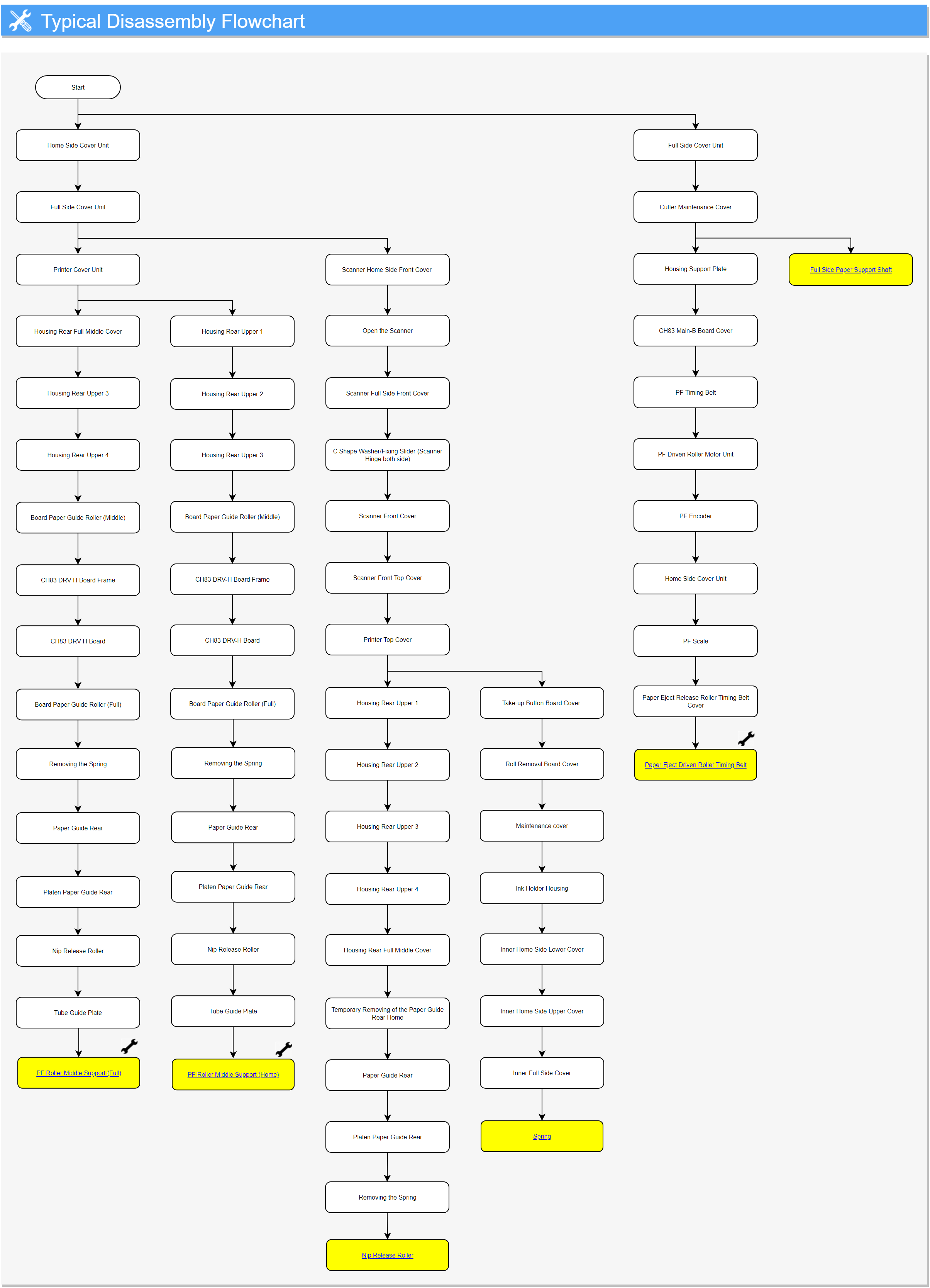

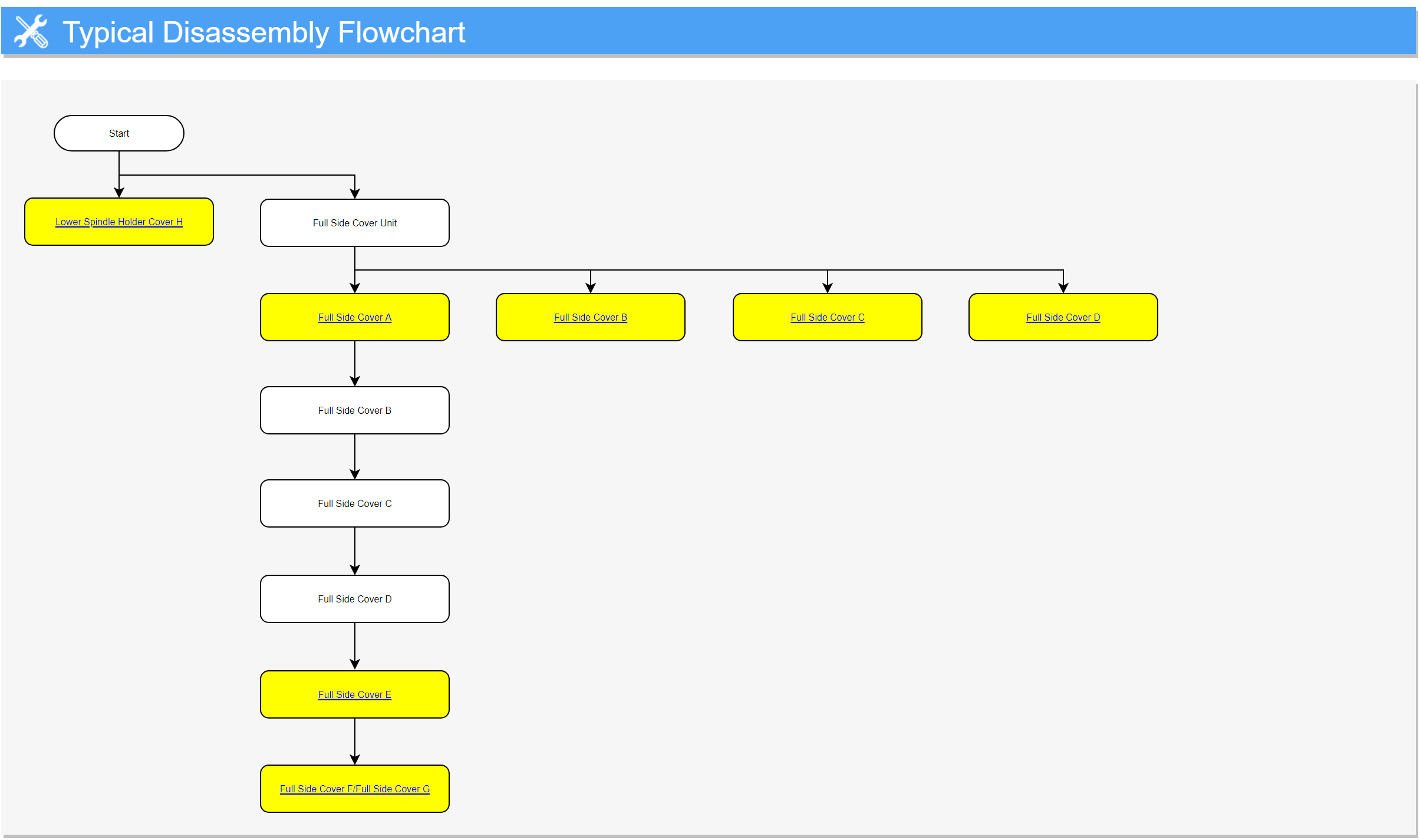

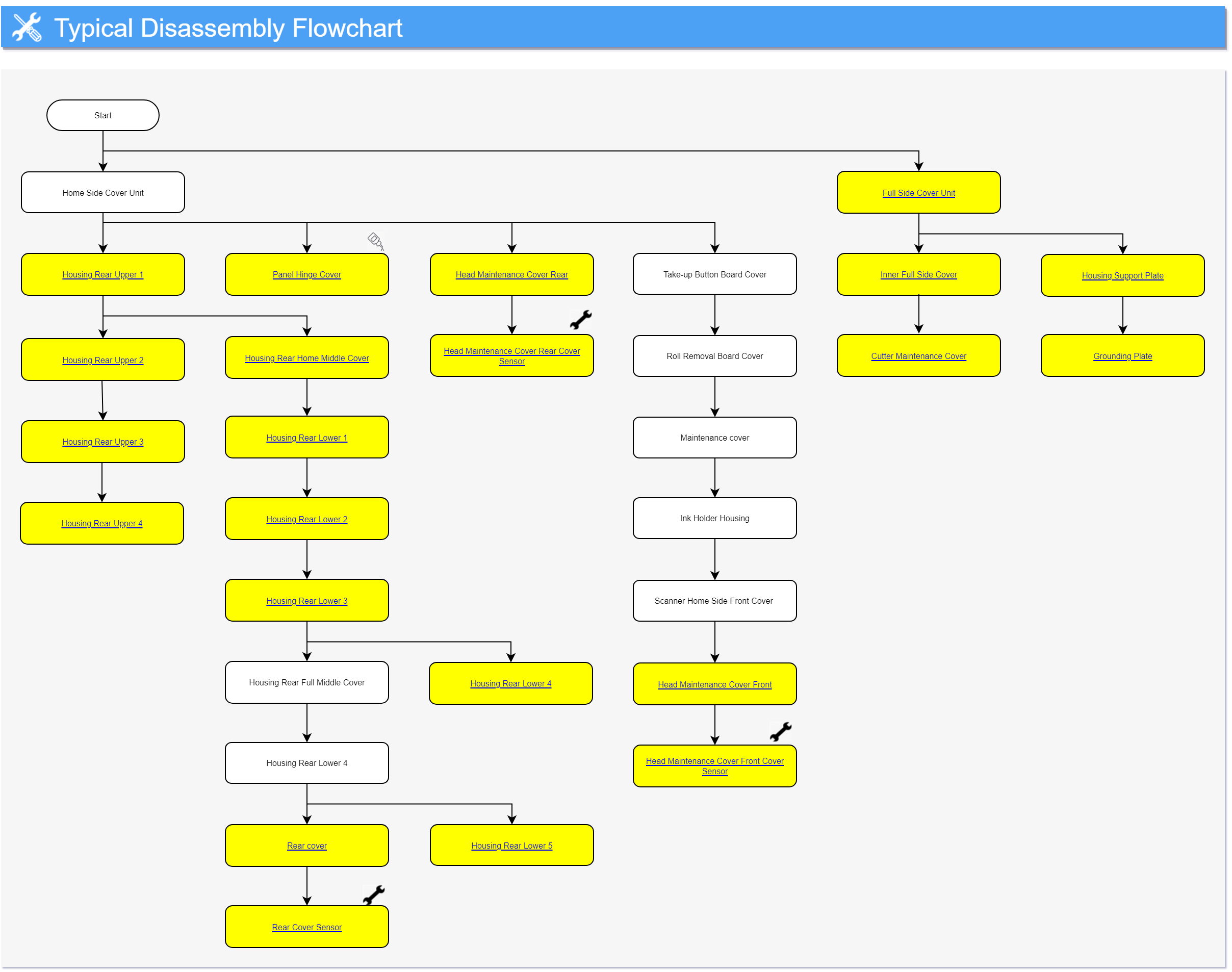

#Housing 1/4

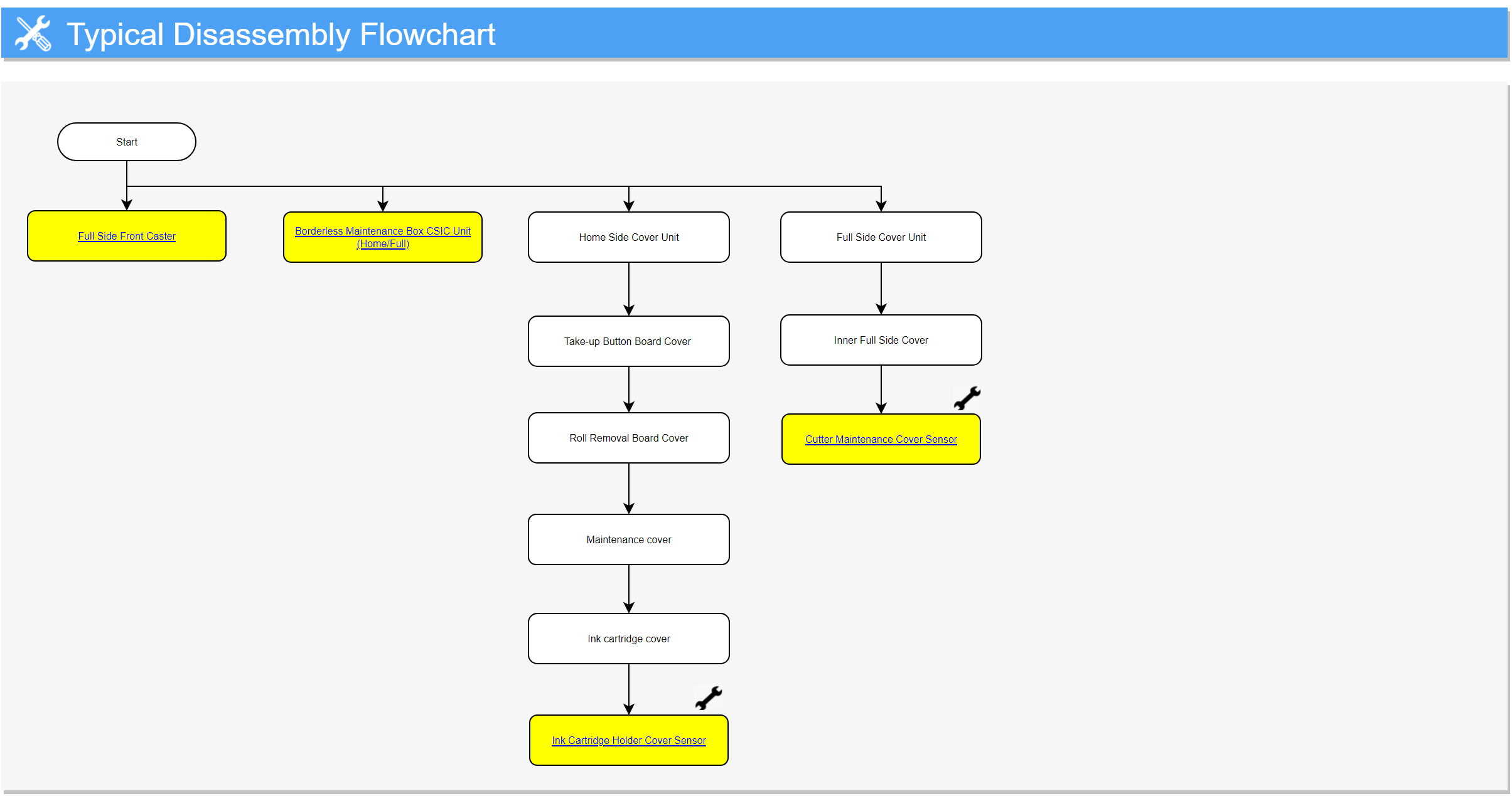

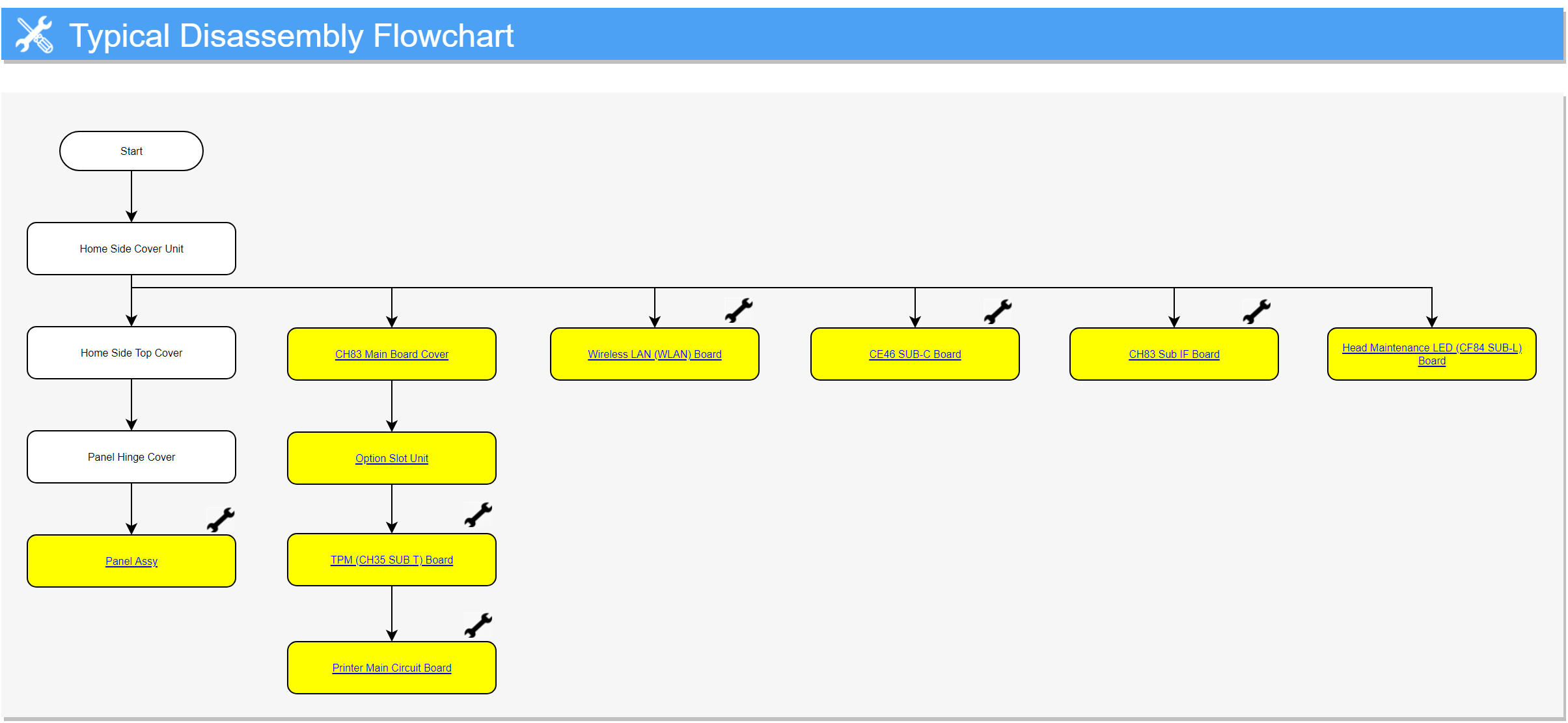

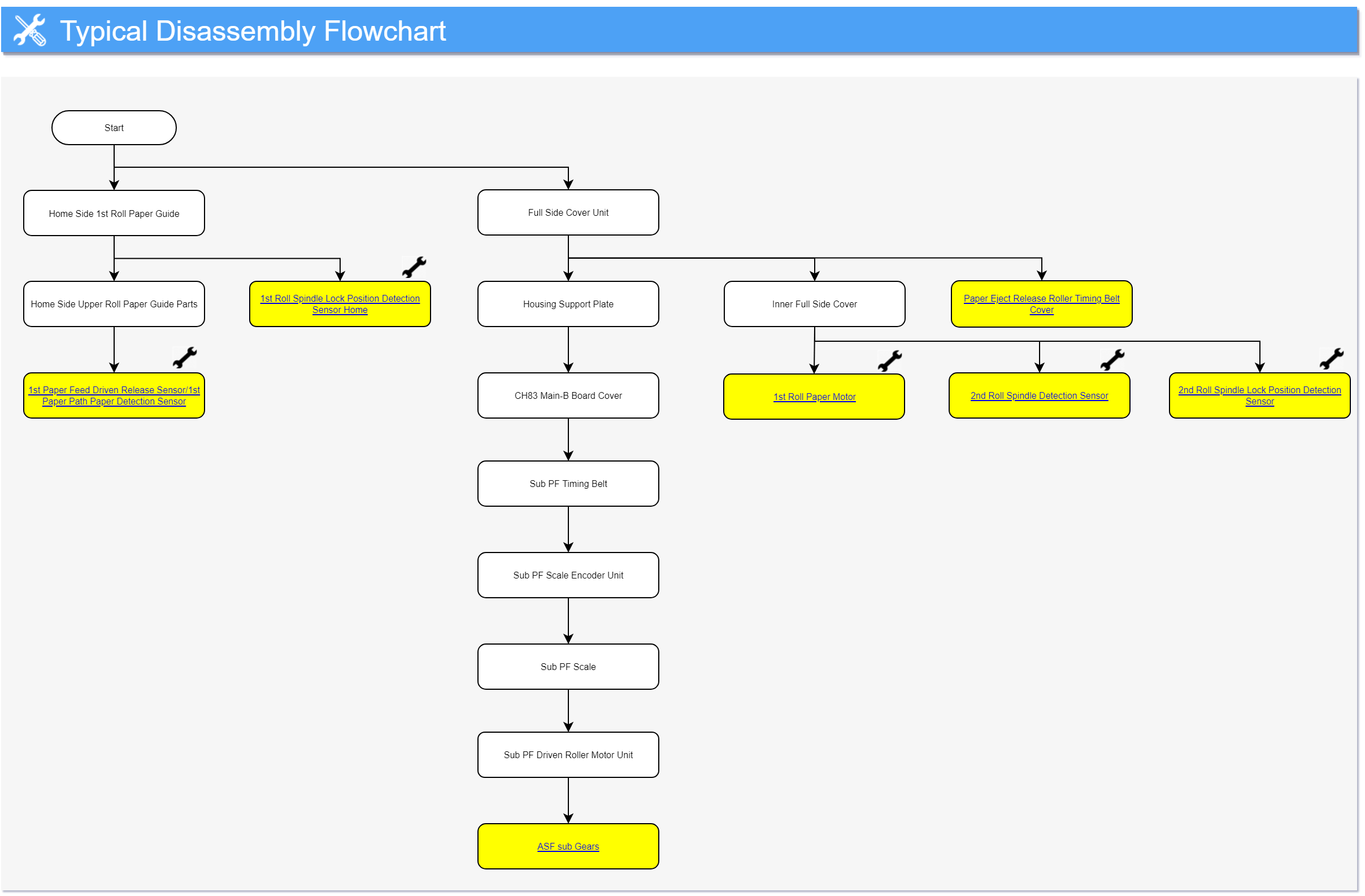

#Housing 2/4

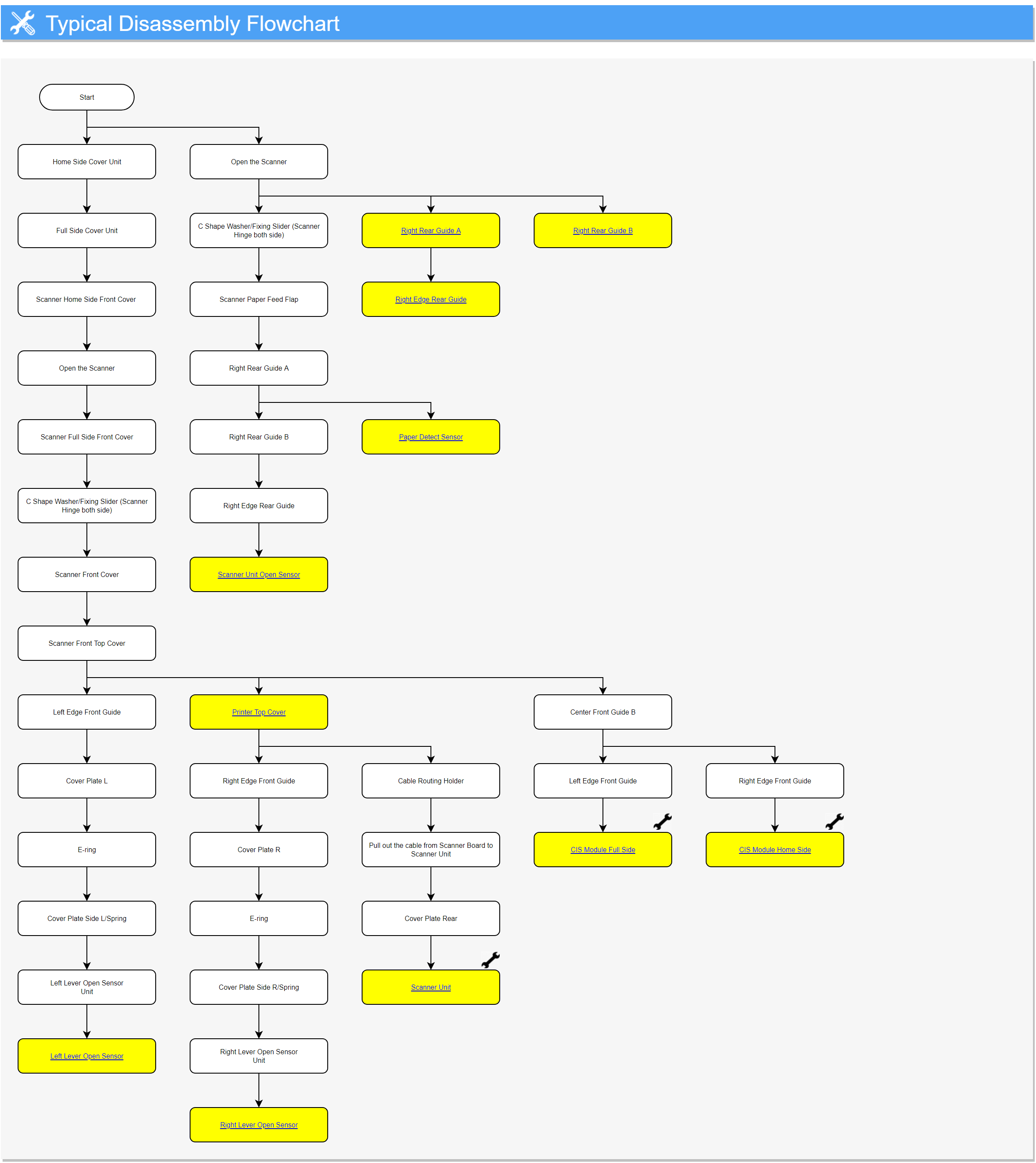

#Housing 3/4

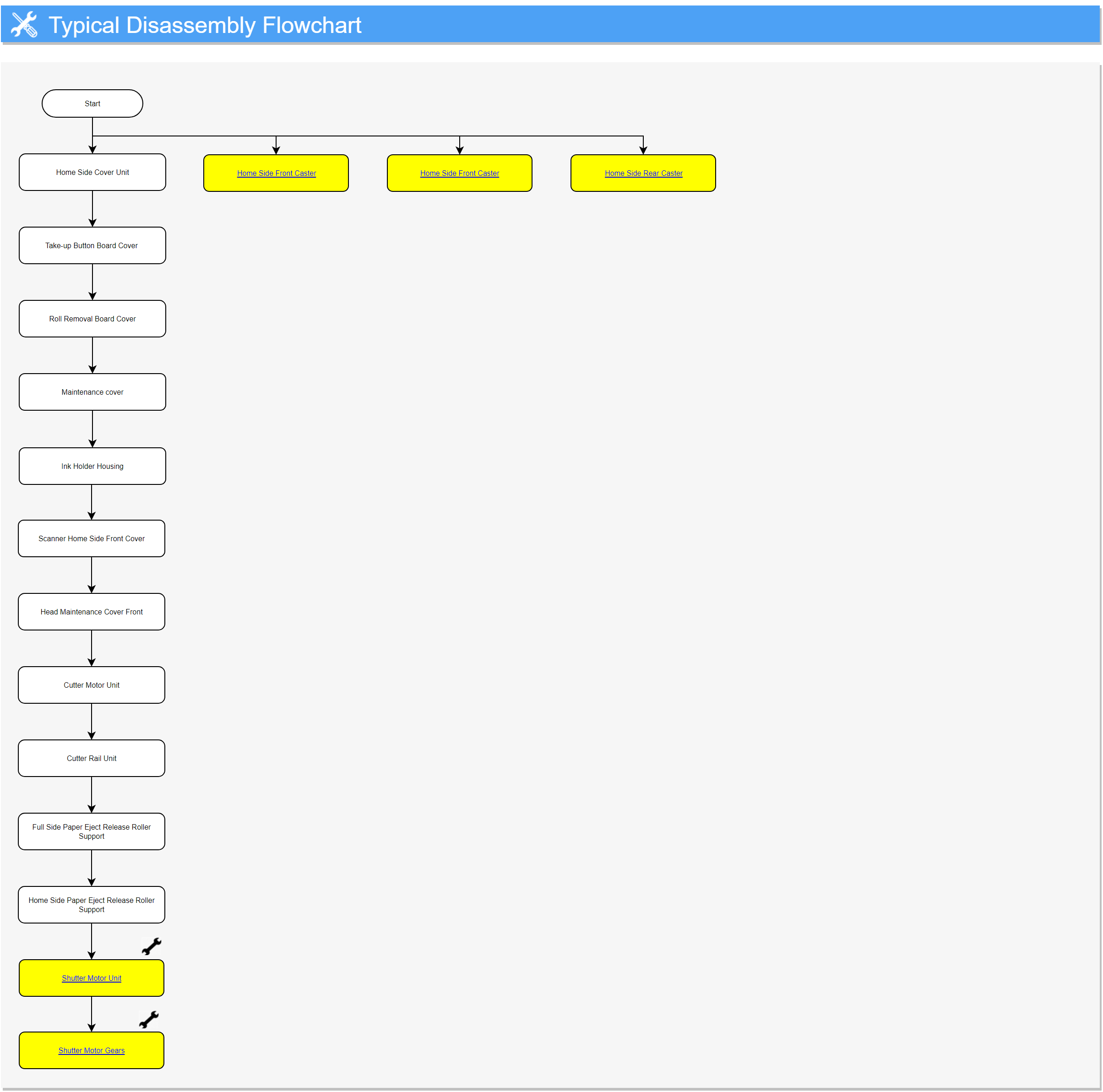

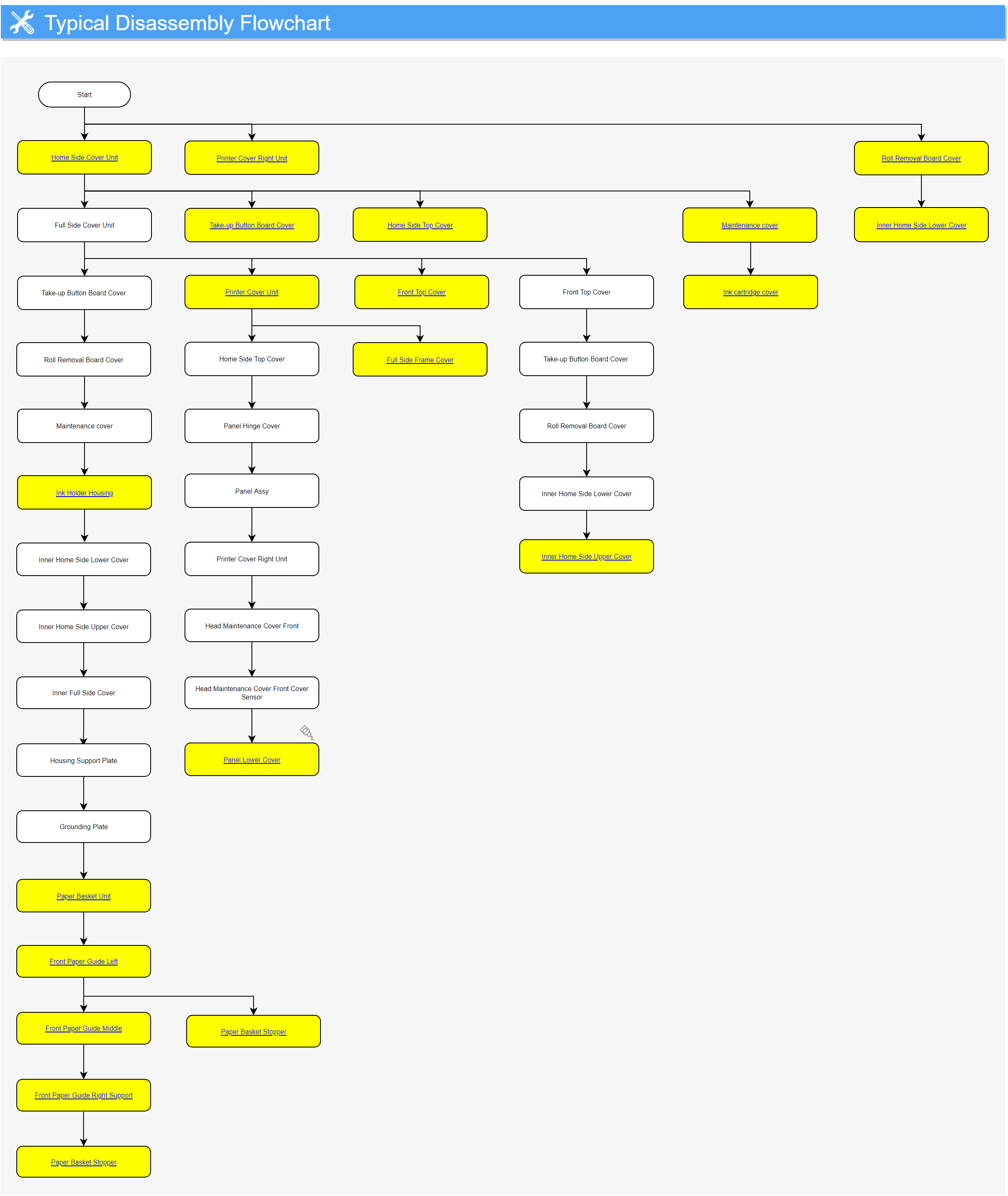

#Housing 4/4

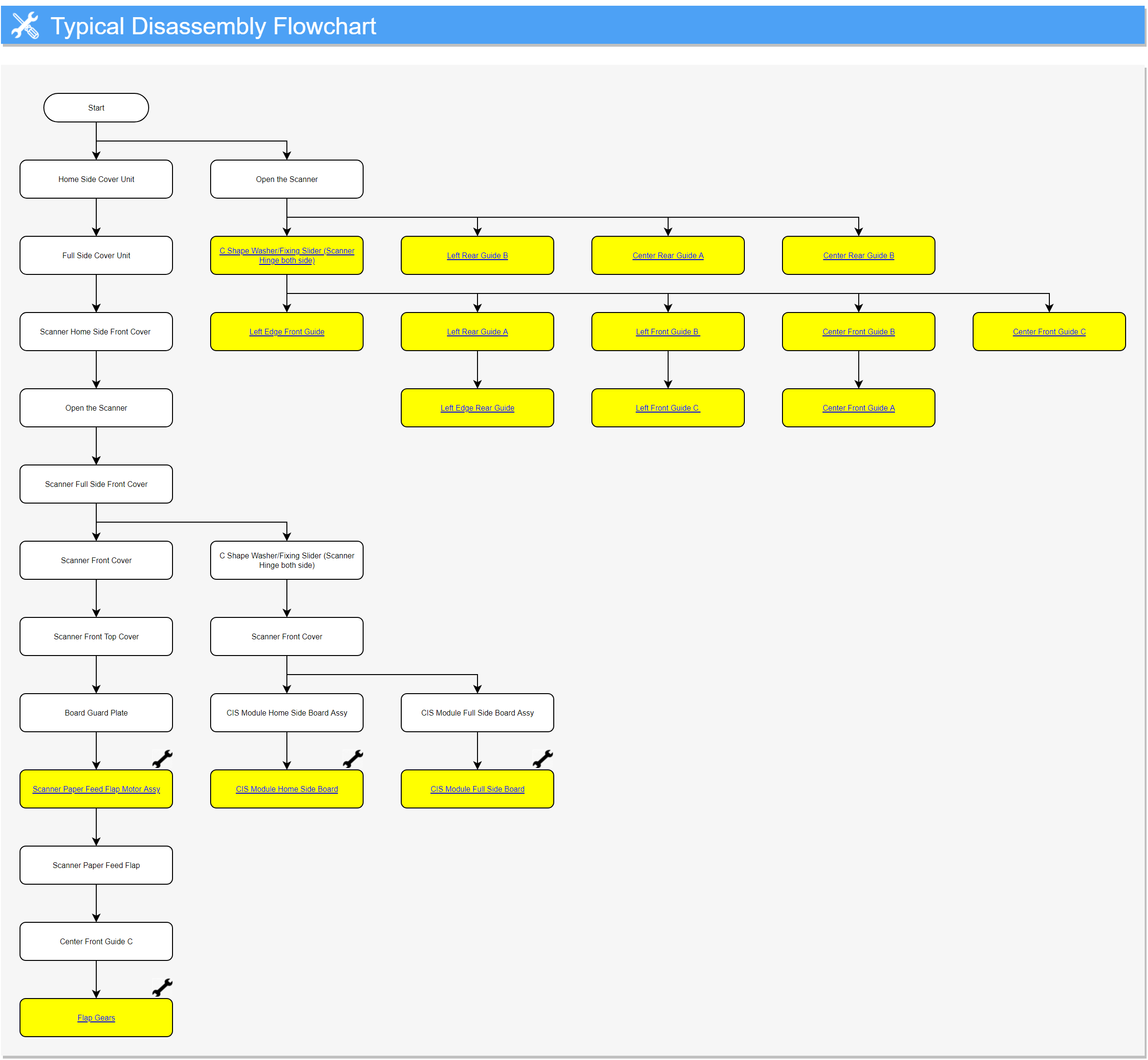

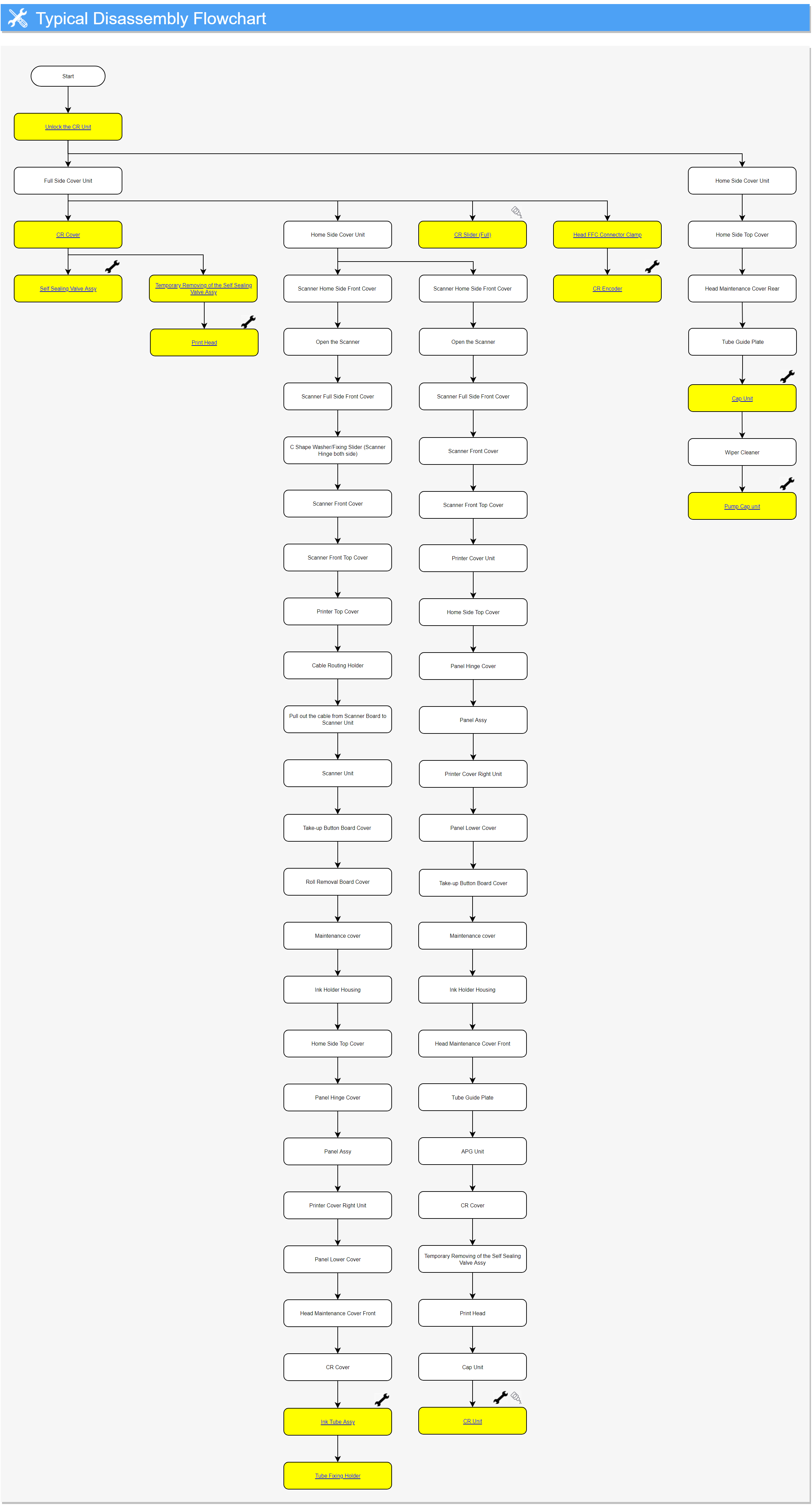

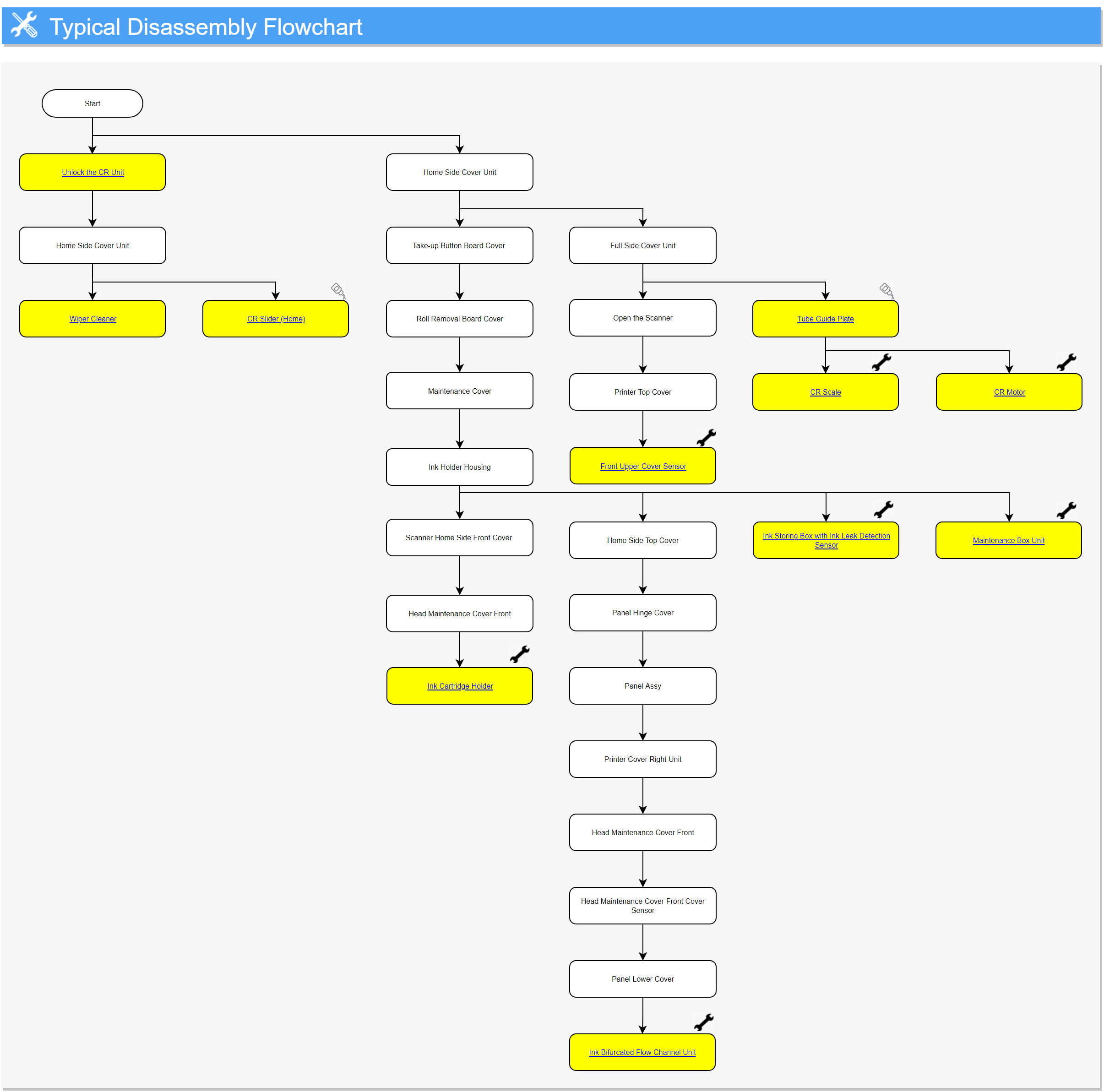

#Electric Circuit Components 1/3

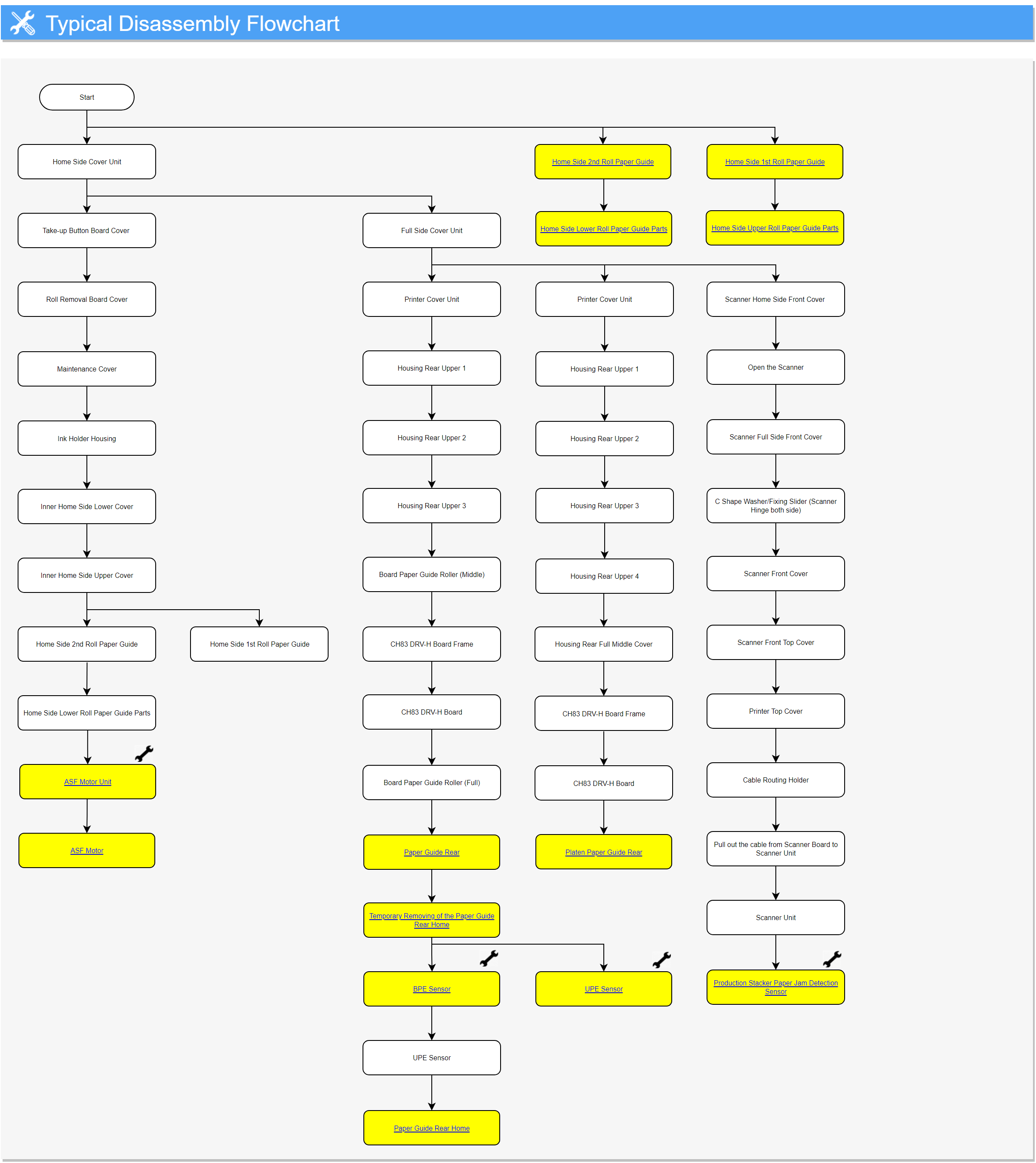

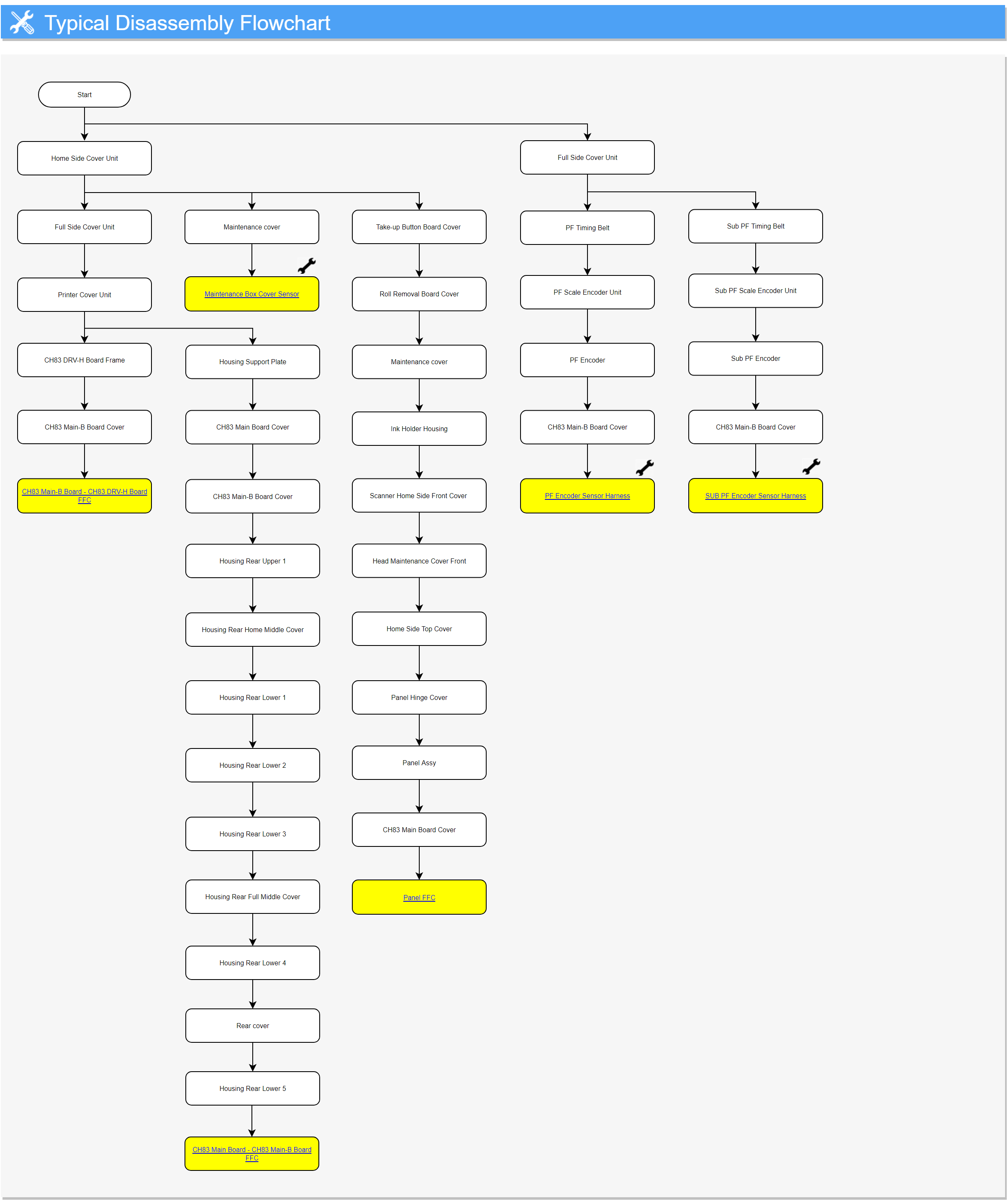

#Electric Circuit Components 2/3

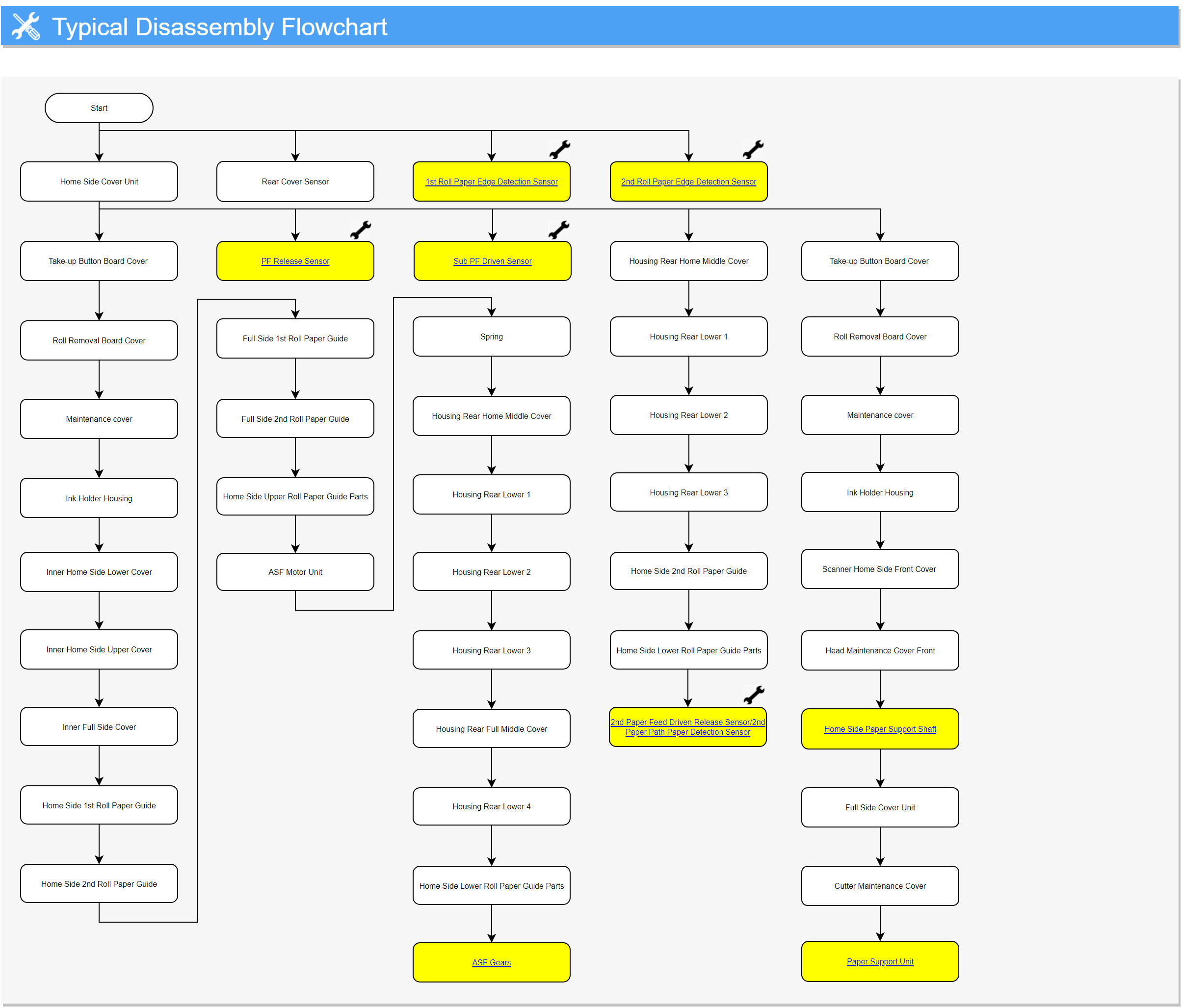

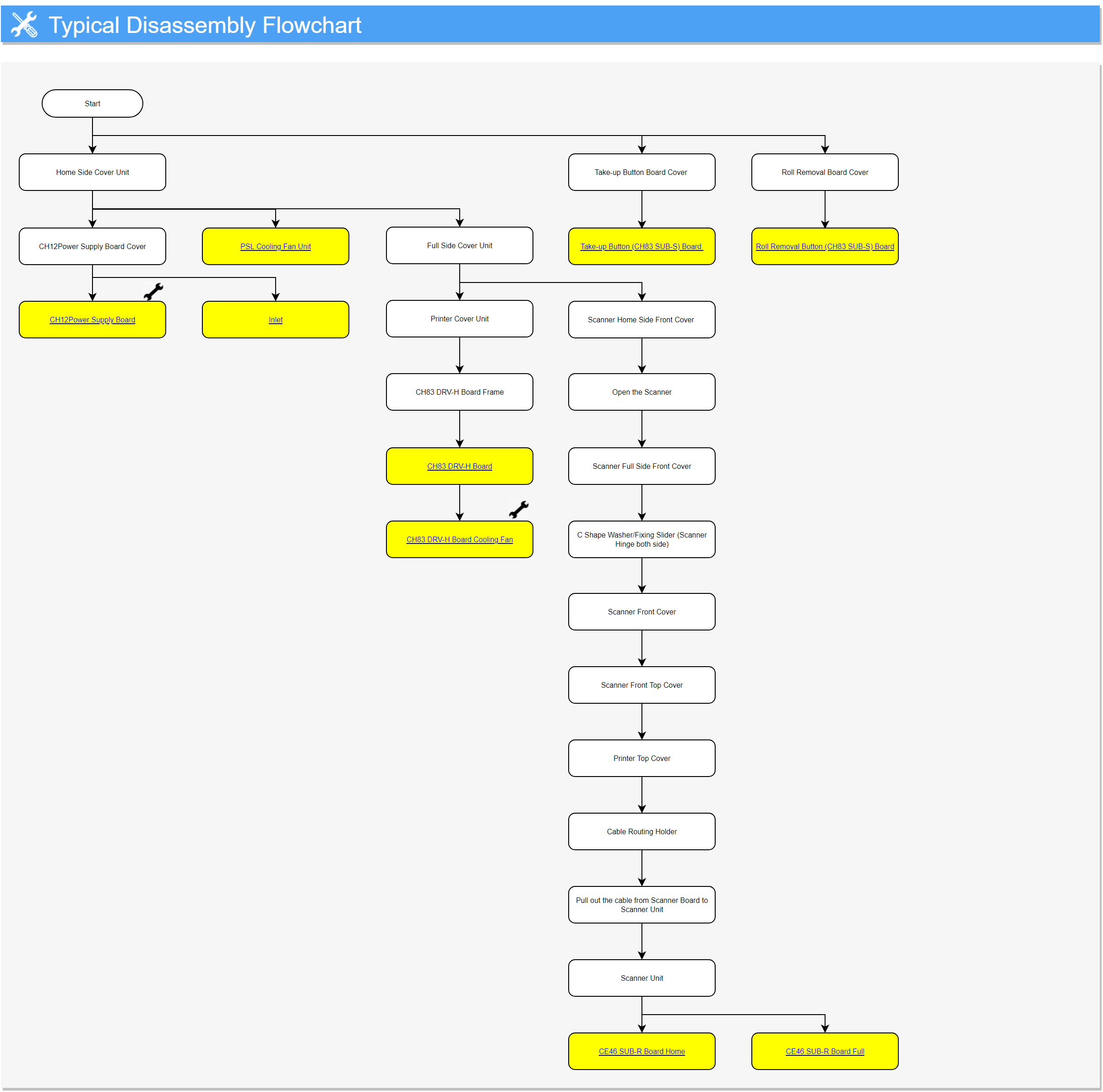

#Electric Circuit Components 3/3

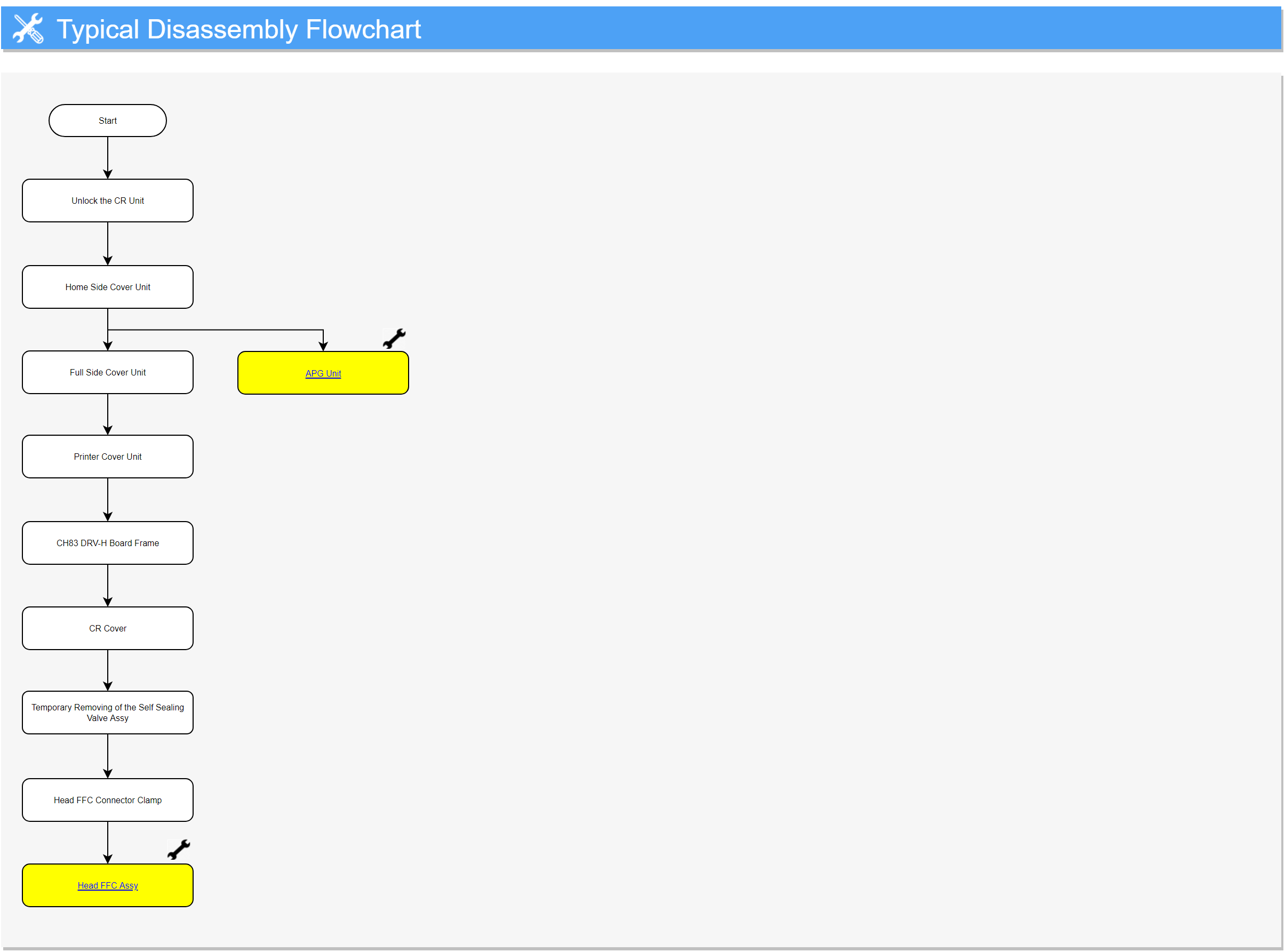

#Carriage Mechanism / Ink System Mechanism 1/3

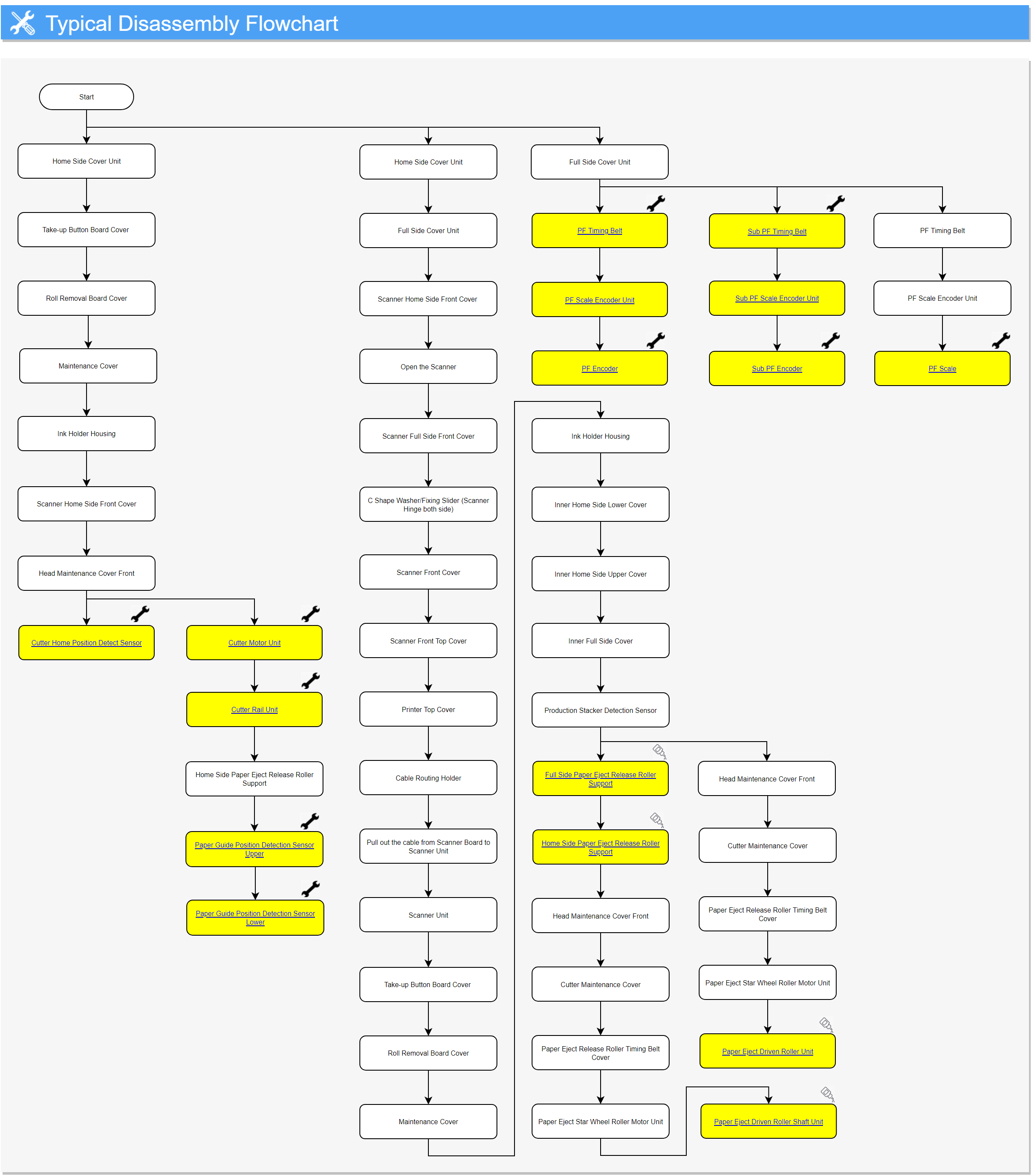

#Carriage Mechanism / Ink System Mechanism 2/3

#Carriage Mechanism / Ink System Mechanism 3/3

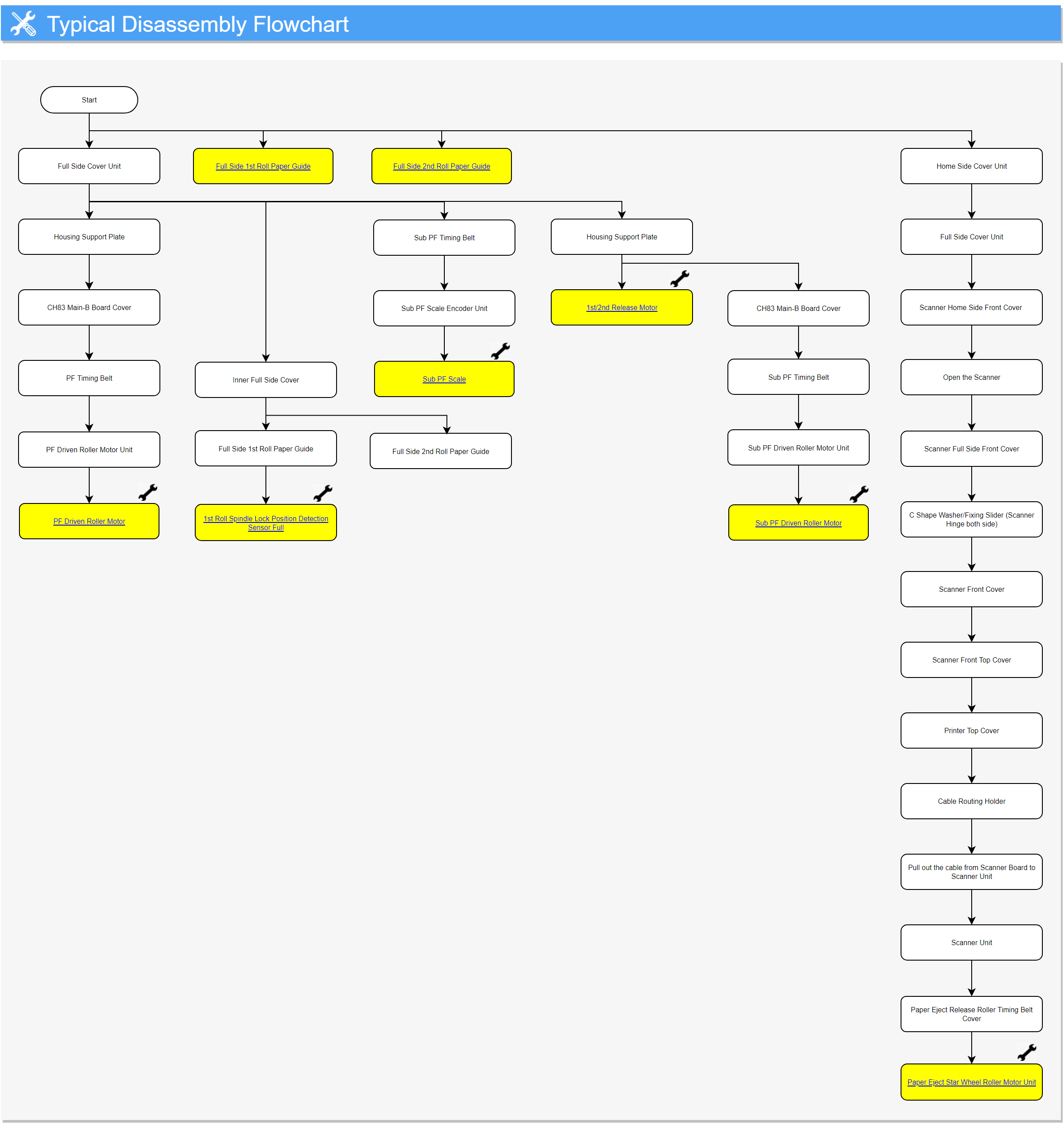

#Paper Feed Mechanism 1/8

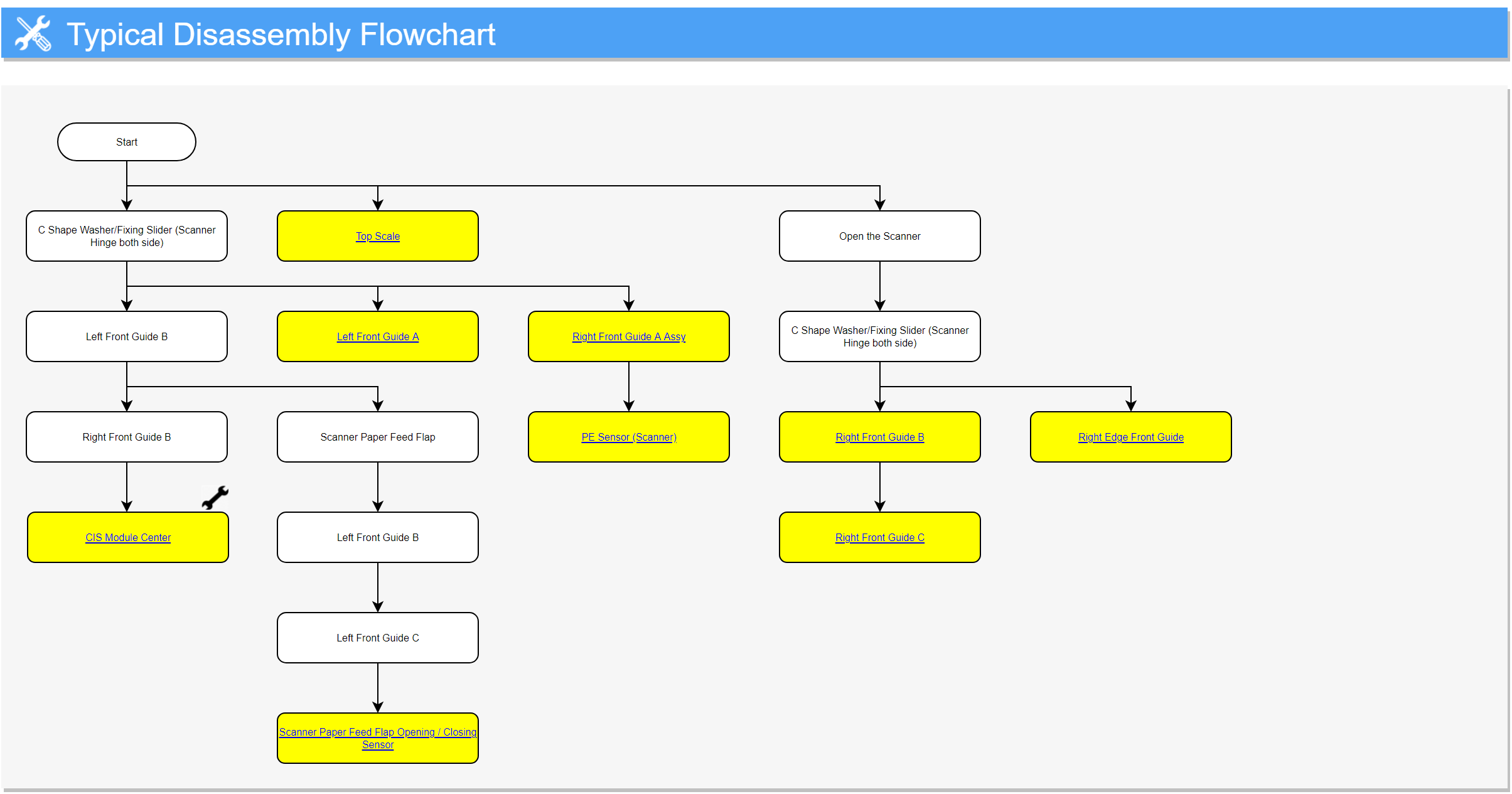

#Paper Feed Mechanism 2/8

#Paper Feed Mechanism 3/8

#Paper Feed Mechanism 4/8

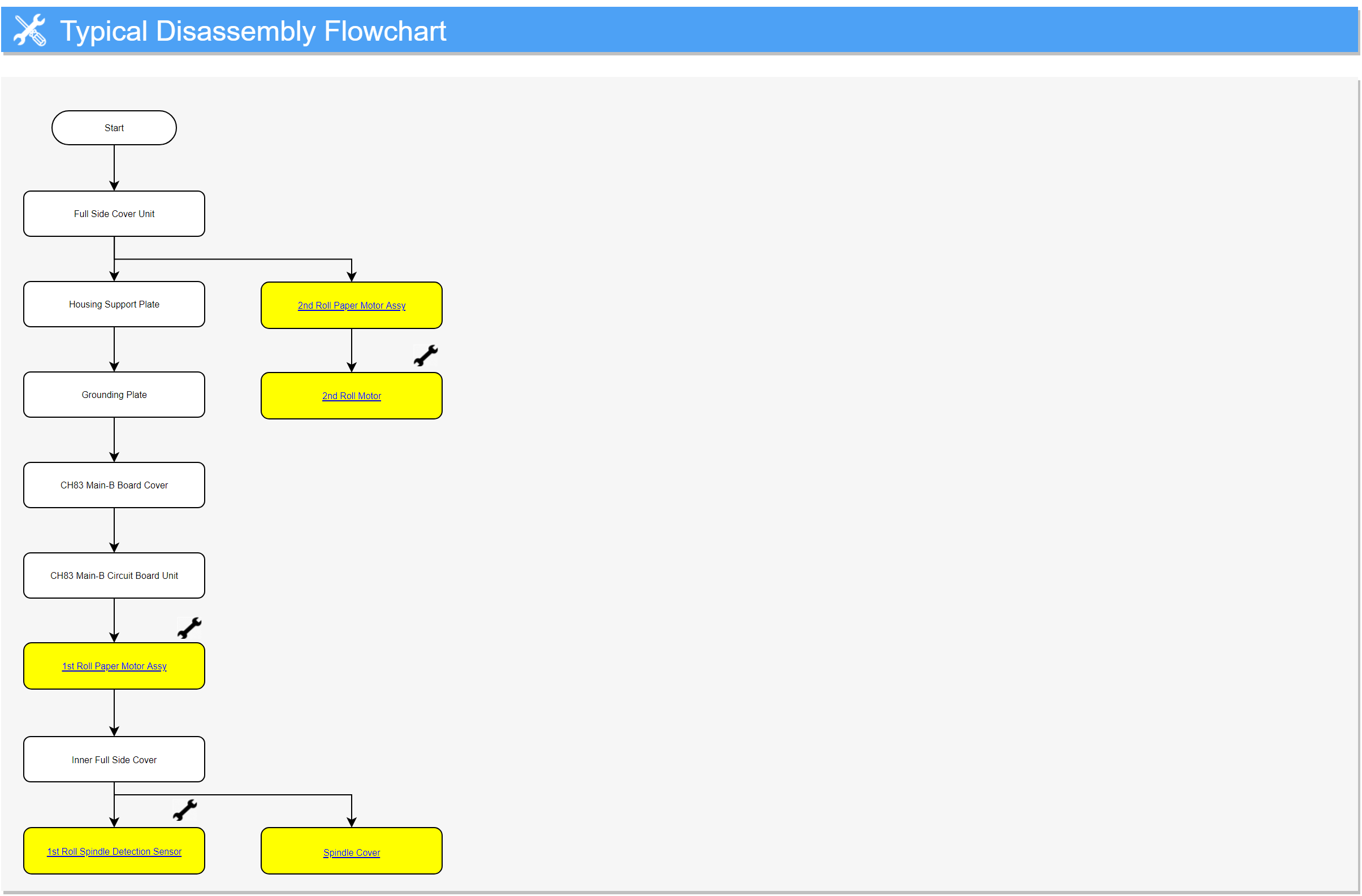

#Paper Feed Mechanism 5/8

#Paper Feed Mechanism 6/8

#Paper Feed Mechanism 7/8

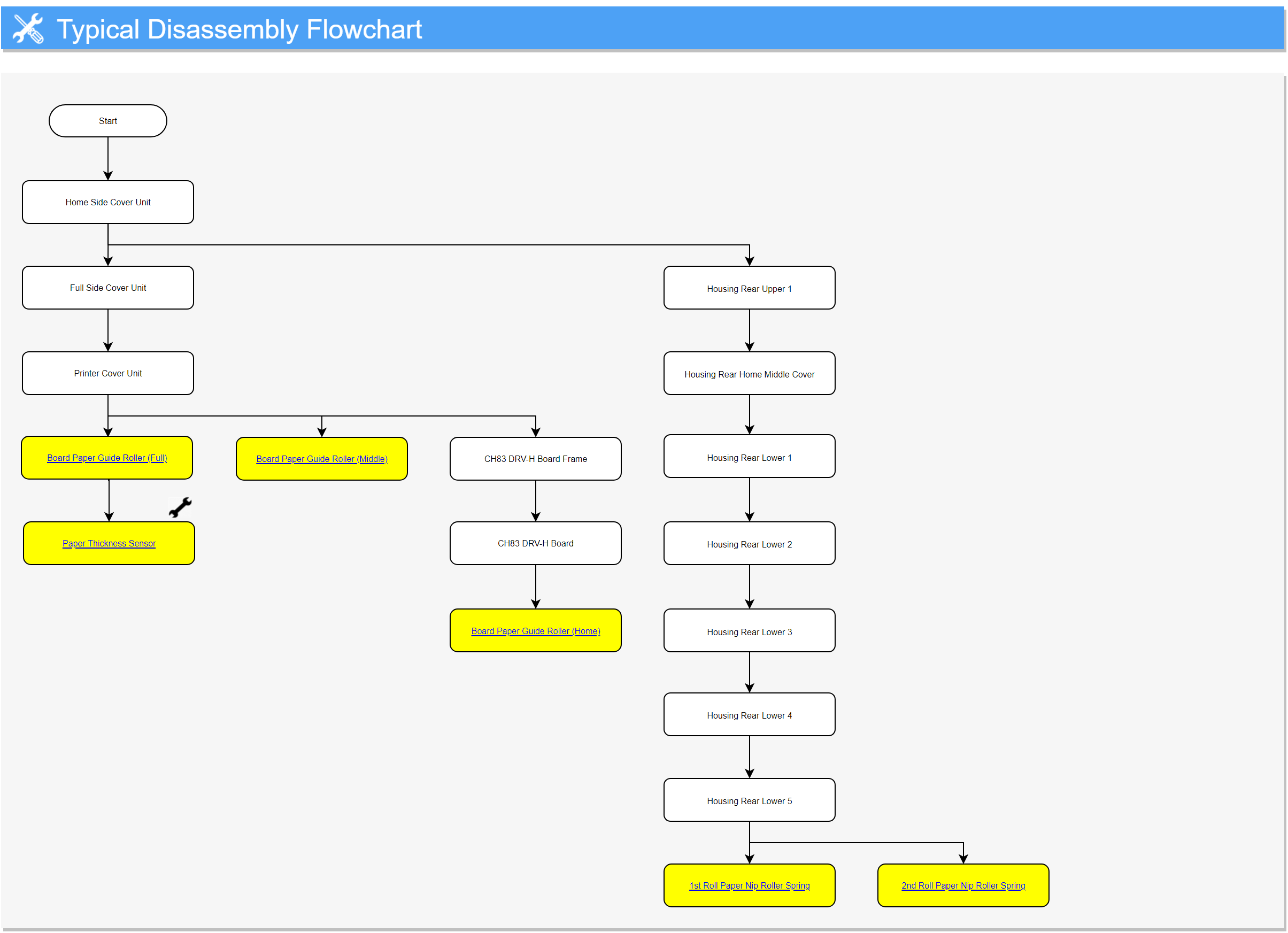

#Paper Feed Mechanism 8/8

#Others 1/2

#Others 2/2

#Harness/FFC

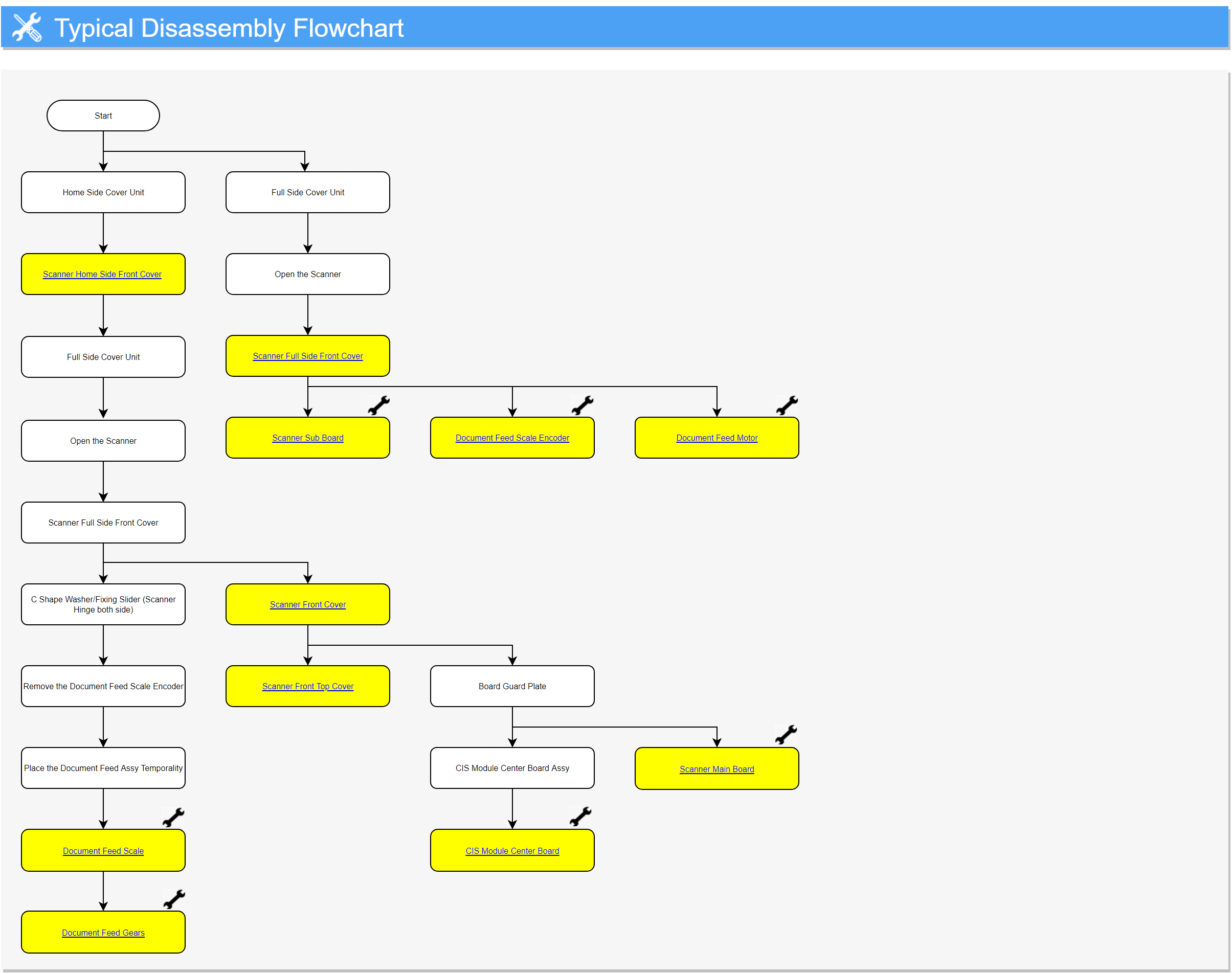

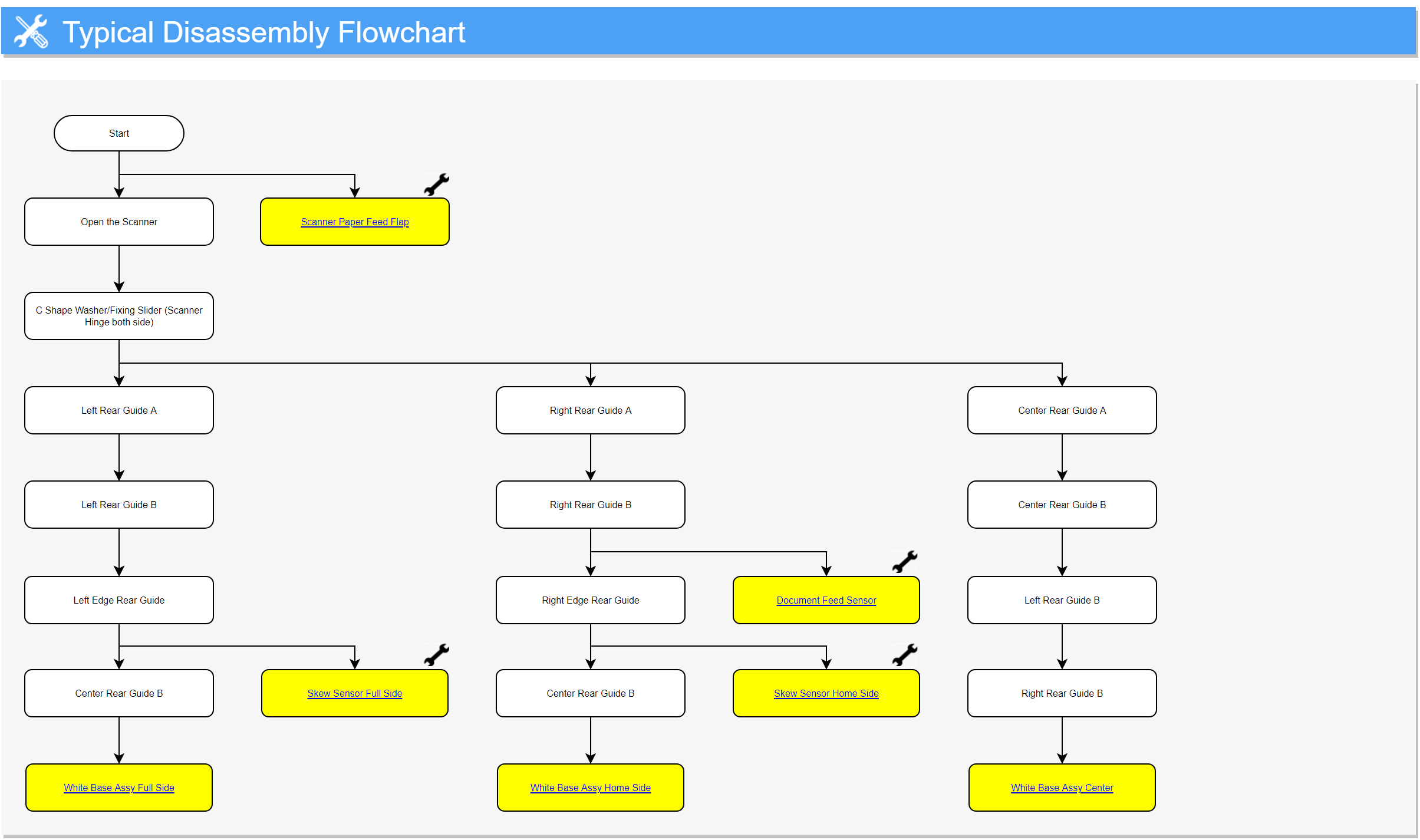

#Scanner Unit 1/5

#Scanner Unit 2/5

#Scanner Unit 3/5

#Scanner Unit 4/5

#Scanner Unit 5/5
