# Housing Rear Full Middle Cover

1. Open the Maintenance Box Cover (A).

2. Release the 2 tabs of the Maintenance Box Cover (A) in the order shown in the figure below, and remove.

3. Remove the Maintenance Box (A).

4. Remove the screw.


   • : Silver M3x8 Cup S-tite screw
5. Insert a flathead screwdriver and release the 2 hooks each, and remove the two screw cover (A).

6. Insert a flathead screwdriver and release the 2 hooks, and remove the screw cover (A).

7. Remove the three screws at the front side.

   • : Black M3x8 Cup P-tite screw
8. Remove the five screws at the right side.

   • : Silver M3x8 Cup S-tite screw
   • : Silver M4x8 Cup S-tite screw
9. Remove the four screws at the rear side.

   • : Silver M3x8 Cup S-tite screw with plastic washer
   • : Silver M3x8 Cup S-tite screw
10. On the printer rear side, release the dowel of the Home Side Cover Unit (A).

11. Insert a flathead screwdriver and release the 2 tabs each, and remove the Home Side Cover Unit (A) in the direction of the arrow.

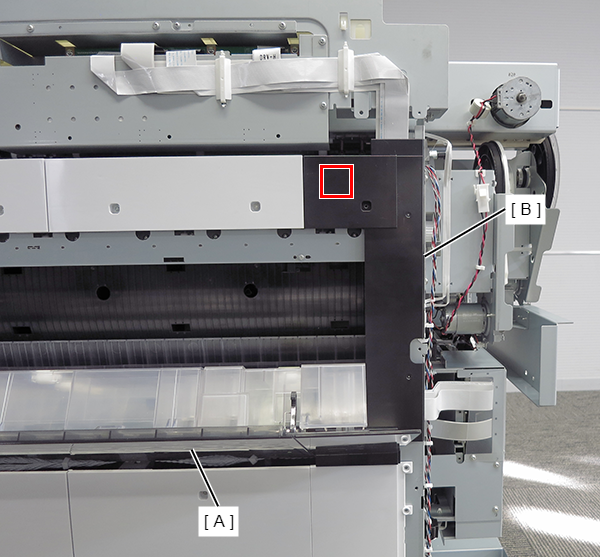

12. Open the Rear Cover (A).
13. Remove the two screws.
14. Release the two hooks of the Housing Rear Upper 1 (B) while sliding it upward, and remove it.

    • : Silver M3x8 Cup S-tite screw
15. Remove the screw.

    • : Silver M3x8 Cup S-tite screw
16. Open the Rear Cover (A).
17. Release the hook while sliding the Housing Rear Home Middle Cover (A) upward, and remove it.

18. Remove the screw.
19. Release the two hooks of the Housing Rear Lower 1 (A) while sliding it upward, and remove it.

    • : Silver M3x8 Cup S-tite screw
20. Remove the screw.
21. Release the two hooks of the Housing Rear Lower 2 (A) while sliding it upward, and remove it.

    • : Silver M3x8 Cup S-tite screw
22. Remove the screw.

23. Release the two hooks of the Housing Rear Lower 3 (A) while sliding it upward, and remove it.


    • : Silver M3x8 Cup S-tite screw

24. Remove the two screws.

    • : Silver M3x8 Cup S-tite screw
25. Open the Rear Cover (A).
26. Release the hook while sliding the Housing Rear Full Middle Cover (A) upward, and remove it.
