Production Stacker Paper Jam Detection Sensor

  1. Release the 6 locks (A), and remove the 6 Ink Pack Trays (B). (Only perform for SC-P8500DL series/SC-T7700DL series)

  2. Open the Maintenance Cover (A). (Only perform for SC-P8500DL series/SC-T7700DL series)

  3. Remove the screw. (Only perform for SC-P8500DL series/SC-T7700DL series)

    • :Black M3x8 S-tite screw

  4. Release the hook, and remove the Ink Holder (RIPS) Upper Cover (A). (Only perform for SC-P8500DL series/SC-T7700DL series)

    Assembly / 組み立て
    • Insert the Ink Holder (RIPS) Upper Cover (A) tab (B).
    • Insert the Ink Holder (RIPS) Upper Cover (A) hook (C).

  5. Remove the two screws, and remove the USB cable (A). (Only perform for SC-P8500DL series/SC-T7700DL series)

    • : Silver M3x8 P-tite screw

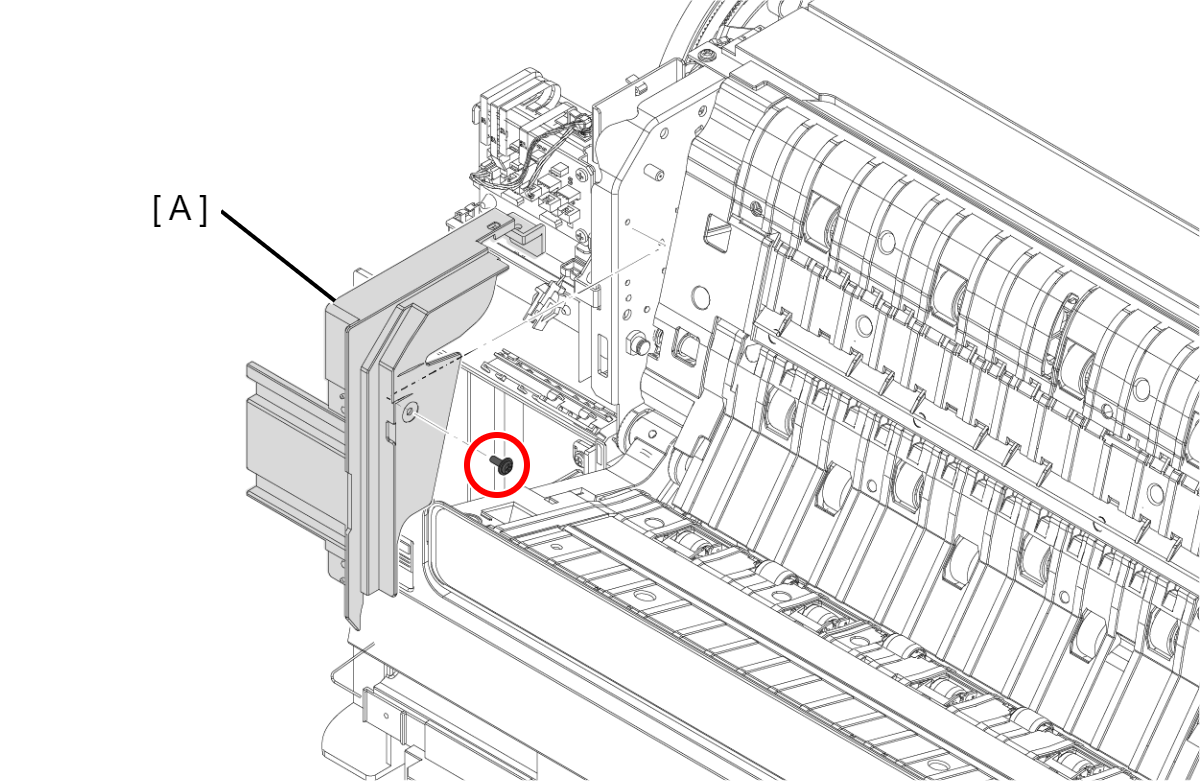

  6. Remove the two screws. (Only perform for SC-P8500DL series/SC-T7700DL series)

    • : Silver M3x8 S-tite screw
  7. Pull the Ink Pack Tray Right Side (A) slightly forward and release the 2 dowels. (Only perform for SC-P8500DL series/SC-T7700DL series)

  8. Slide the Ink Pack Tray Right Side (A) upwards to remove. (Only perform for SC-P8500DL series/SC-T7700DL series)

    Assembly / 組み立て
    • The gray lock lever (A) and ink plate (B) will come off when removing the Ink Pack Tray Right Side (C). Install them after installing the Ink Pack Tray Right Side (C) in the main unit.
    • With the lock lever (A) and tray lever (B) moved to the right side, install the Ink Pack Tray Right Side (C).
    • After installing the Ink Pack Tray Right Side (A), move the lock lever (B) and confirm that the tray lever (C) moves in conjunction.
  9. Open the Maintenance Box Cover (A).
  10. Release the 2 tabs of the Maintenance Box Cover (A) in the order shown in the figure below, and remove.
  11. Remove the Maintenance Box (A).
  12. Remove the screw.

    • : Silver M3x8 Cup S-tite screw
  13. Insert a flathead screwdriver and release the 2 hooks each, and remove the two screw cover (A).
  14. Insert a flathead screwdriver and release the 2 hooks, and remove the screw cover (A).
  15. Remove the three screws at the front side.
    • : Black M3x8 Cup P-tite screw
  16. Remove the five screws at the right side.
    • : Silver M3x8 Cup S-tite screw
    • : Silver M4x8 Cup S-tite screw
  17. Remove the four screws at the rear side.

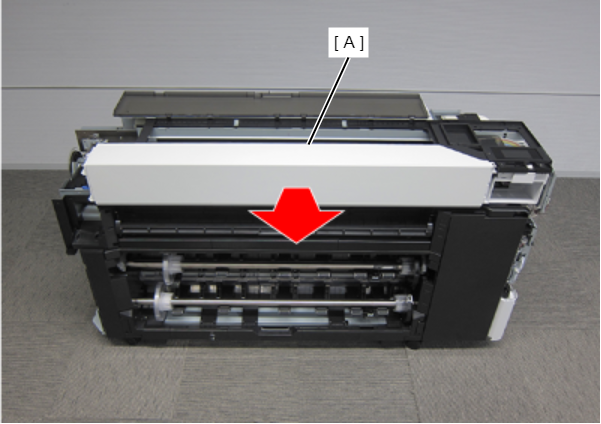

    • : Silver M3x8 Cup S-tite screw with plastic washer
    • : Silver M3x8 Cup S-tite screw
  18. On the printer rear side, release the dowel of the Home Side Cover Unit (A).
  19. Insert a flathead screwdriver and release the 2 tabs each, and remove the Home Side Cover Unit (A) in the direction of the arrow.
  20. Insert a flathead screwdriver and release the two hooks, and remove the screw cover (A).
  21. Open the Printer Cover (A) and the Cutter Cover (B).
  22. Remove the three screws at the front side.
    • : Silver M3x10 Cup P-tite screw
    • : Silver M3x8 Cup S-tite screw
  23. Remove the screw at the top side.
    • : Silver M3x8 Cup S-tite screw
  24. Remove the four screws at the rear side.
    • : Silver M3x8 Cup S-tite screw with plastic washer
    • : Silver M3x8 Cup S-tite screw
  25. Remove the four screws at the left side.
    • : Silver M3x8 Cup S-tite screw

  26. On the printer rear side, release the dowel of the Full Side Cover Unit (A).

  27. Remove the Full Side Cover Unit (A) from the dowels, and remove it while it in the direction of the arrow.

    Assemble / 組み立て

    When installing the Full Side Cover Unit (B), carefully the Head FFC (A) so that it does not damage.
  28. Release the sensor cable (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

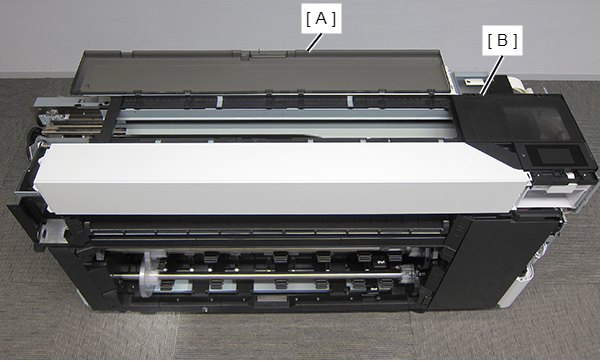

  29. Open the Printer Cover (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

  30. Remove the Home Side Top Cover (B). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

  31. Remove the four screws at the front side. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

    • (Right):Silver M3x8 Cup S-tite screw

    • (Left):SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series: Silver M3x8 Cup S-tite screw, SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series: Silver M4x6 Shoulder Screw
    • : Silver M3x10 Cup P-tite screw
    Assemble / 組み立て

    Tighten the right green screw with the grounding cable. (SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series only)

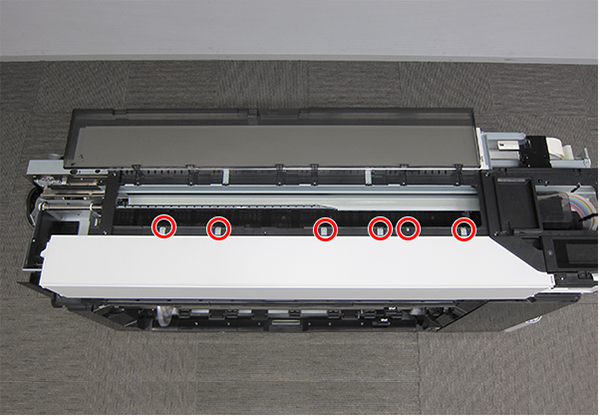

  32. Remove the screws on the top. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)
    SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series: 6 pcs

    • : Black M3x8 Cup S-tite screw
    SC-T5700D series: 4 pcs

    • : Black M3x8 Cup S-tite screw
    SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E: 2 pcs
    • : Black M3x8 Cup S-tite screw
  33. Remove the Front Top Cover (A) frontward. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

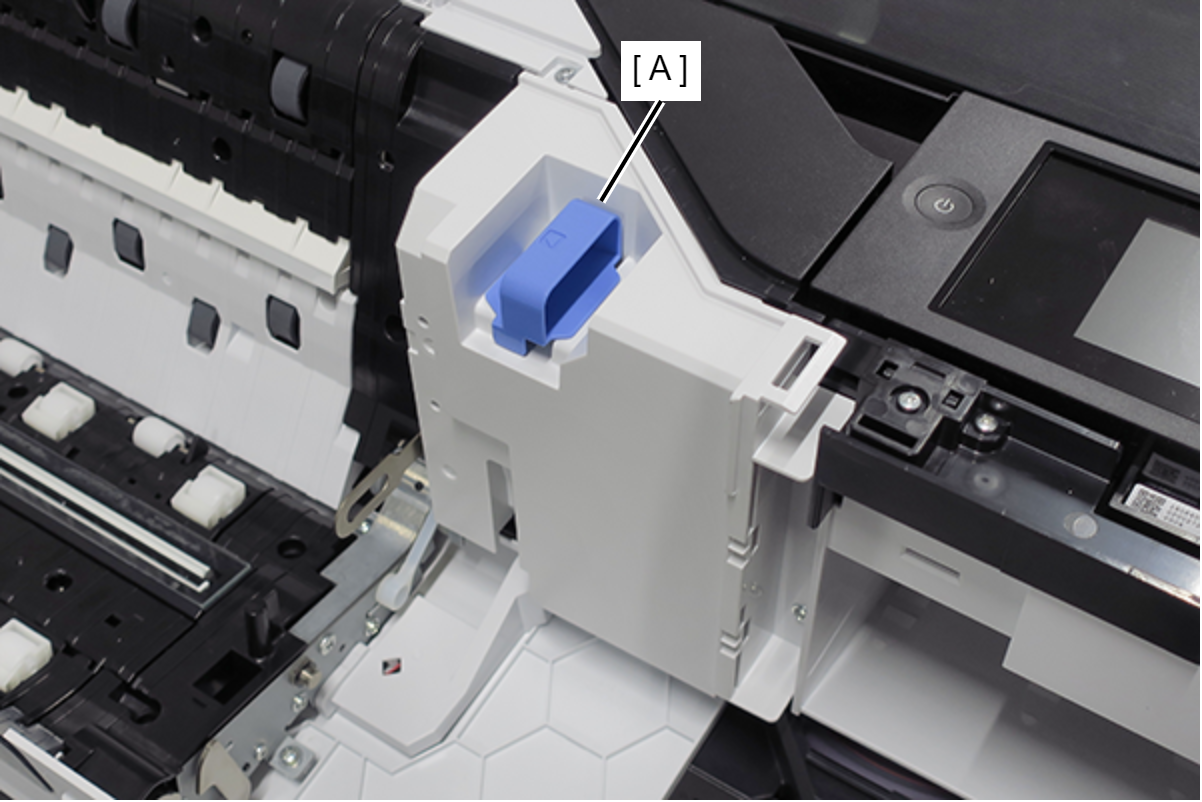

  34. Remove the Button (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  35. Remove the two screws, and then remove the Scanner Home Side Cover (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Silver M3x8 Cup P-tite screw
  36. Push two buttons (A), and open the Scanner Unit (B). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

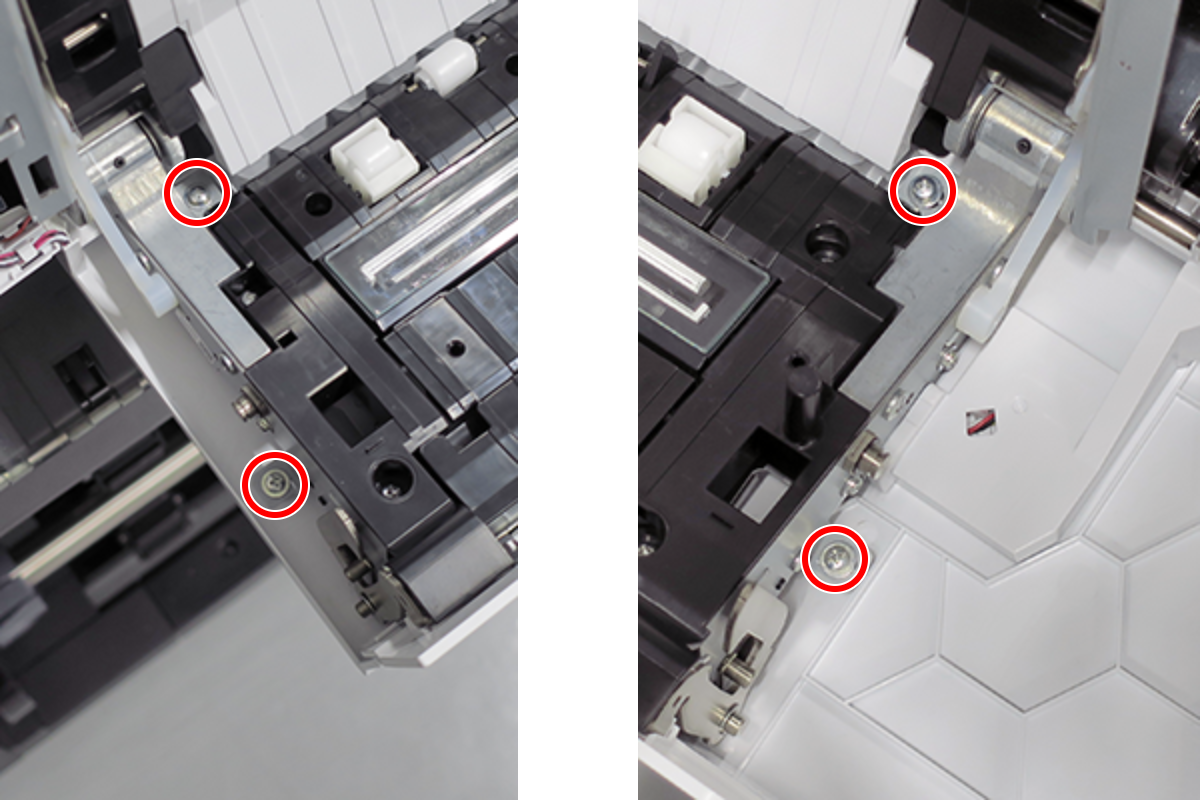

  37. Remove the screw on the printer home side. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  38. Remove the C Shape Washer (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Black M3x4 Cup Step type S-tite screw

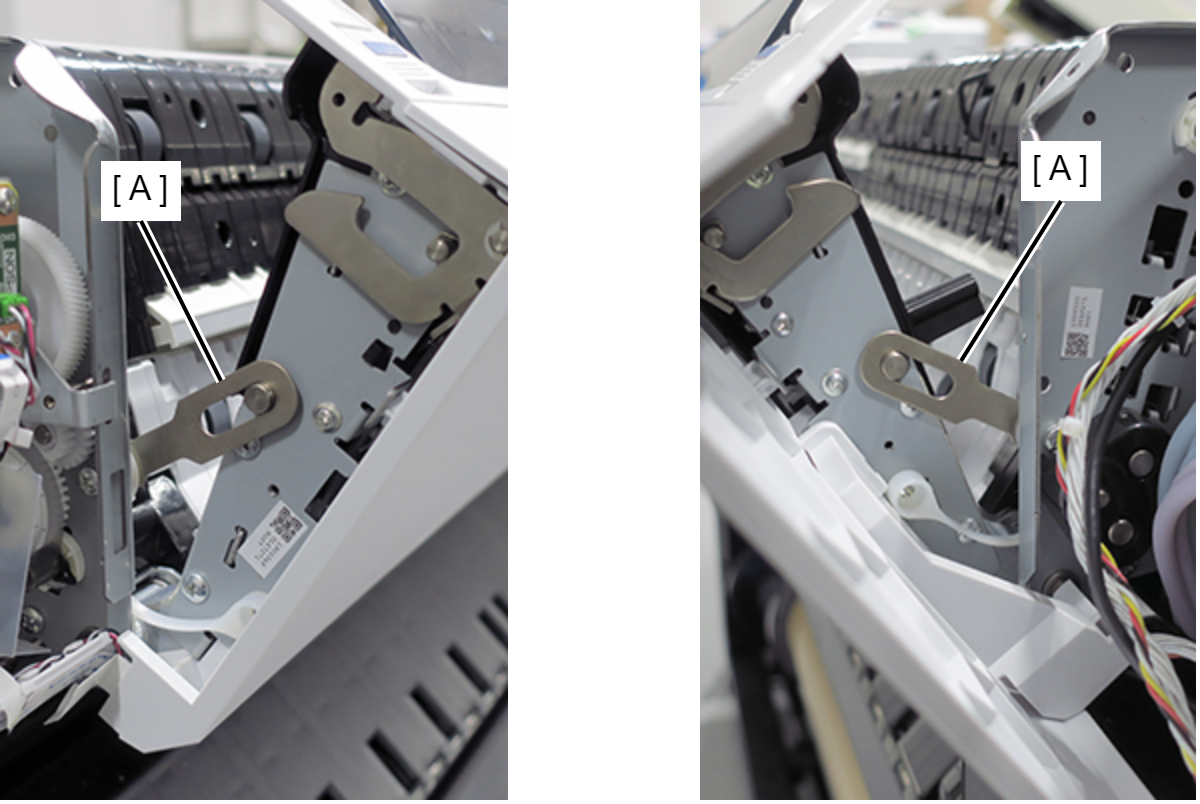

  39. Remove the Fixing Slider (A) from shaft. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  40. Remove the screw on the printer full side. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  41. Remove the C Shape Washer (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Black M3x4 Cup Step type S-tite screw
  42. Remove the Fixing Slider (A) from shaft. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  43. Open the Scanner Unit (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  44. Release the sensor cable (A). (Only perform for SC-P8500DL series/SC-T7700DL series)
  45. Remove the two screws. (Only perform for SC-P8500DL series/SC-T7700DL series)

    • : Silver M3x8 Cup S-tite screw
  46. Remove the screw, and then remove the Scanner Full Side Front Cover (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Silver M3x8 Cup S-tite screw
    Check Point / チェックポイント
    • Scanner Full Side Front Cover of SC-T5700DM series
  47. Remove the C Shape Washer (A) and the Fixing Slider (B). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  48. Remove the Washer (A) and the Strap (B). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  49. Remove the four screws. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • :Silver M3x8 P-tite screw with built-in washer
  50. Hang each of the two fixing sliders (A) on the shaft. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

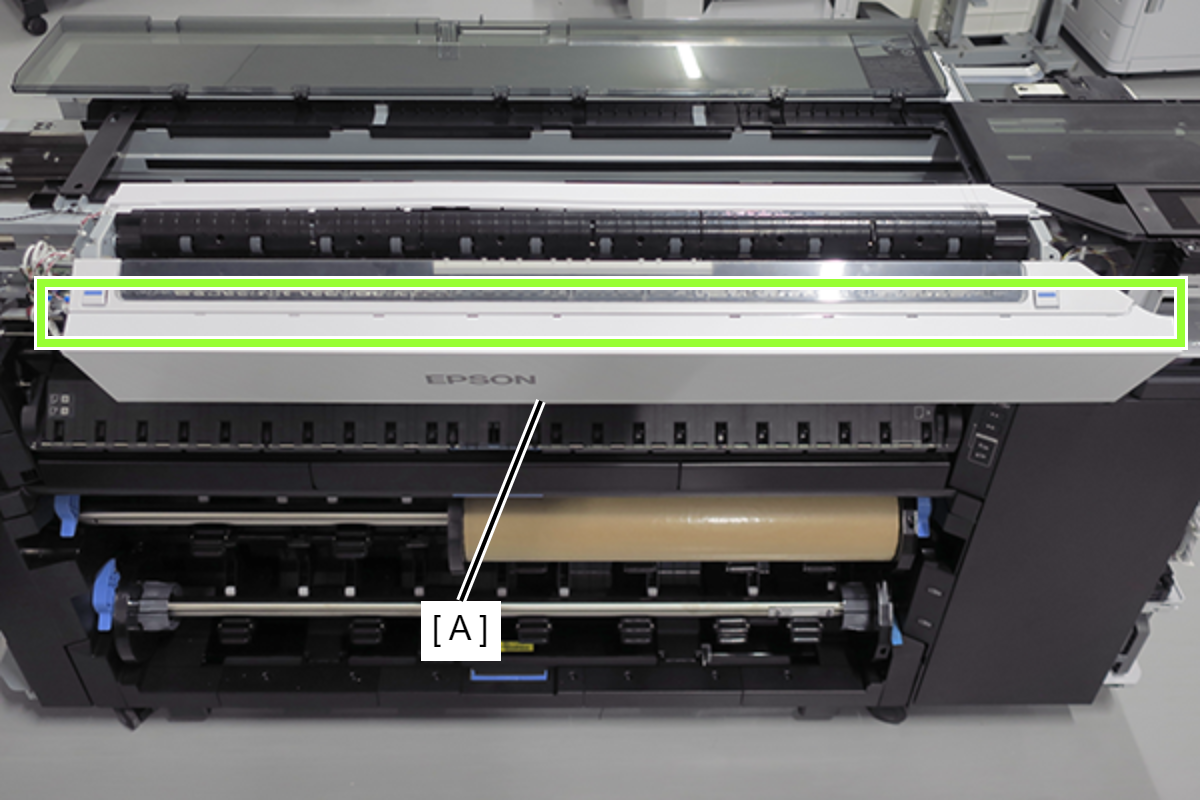

  51. Release the 10 hooks and remove the Scanner Front Cover (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    Assembly / 組み立て

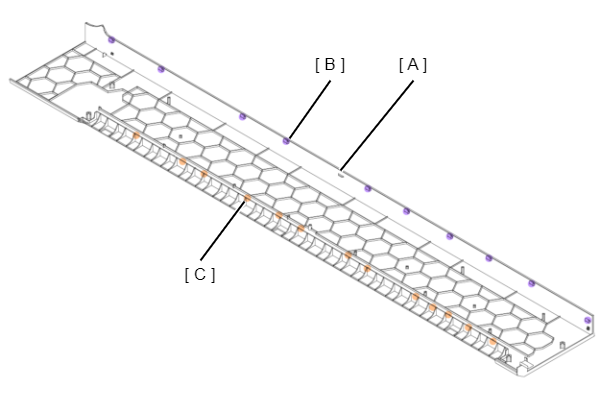

    • Install the Scanner Front Cover (A) while engaging its 10 hooks (B) and 13 tabs (C) with the positioning points on the scanner.

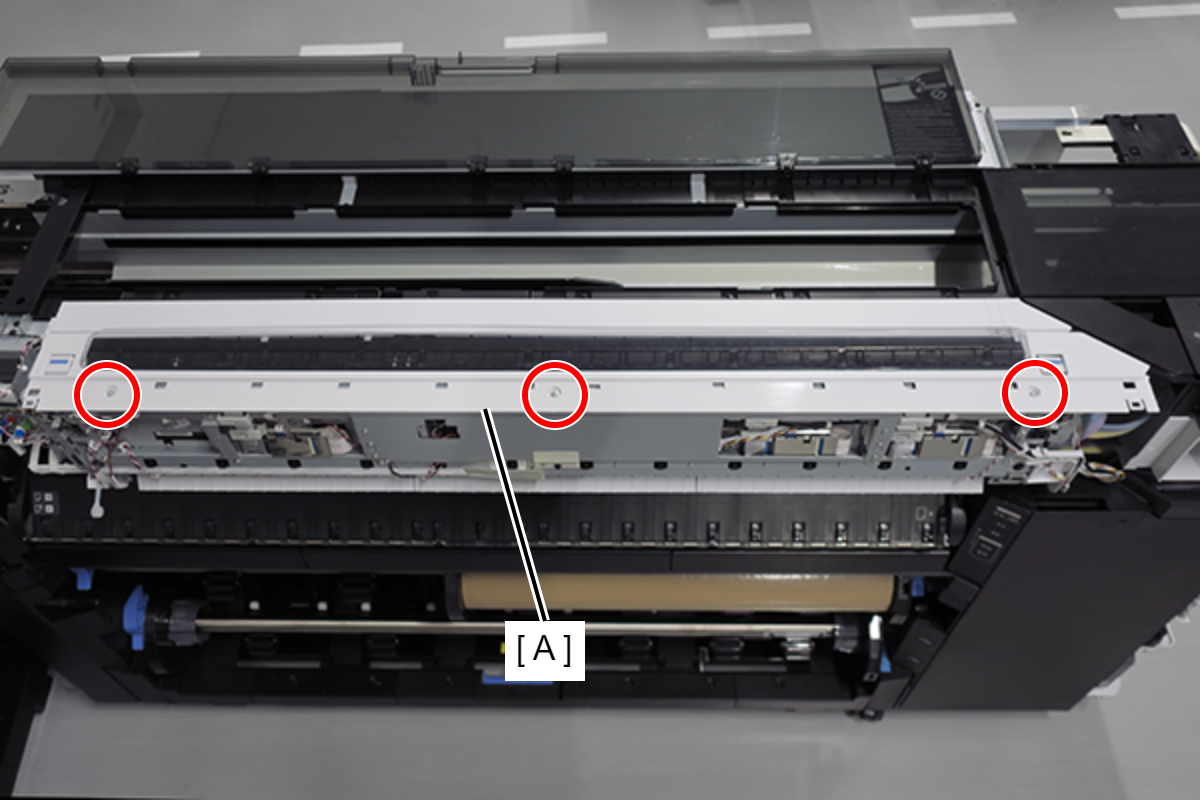

  52. Remove the three screws, and then remove the Scanner Front Top Cover (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Silver M3x6 Cup S-tite screw
    Assembly / 組み立て

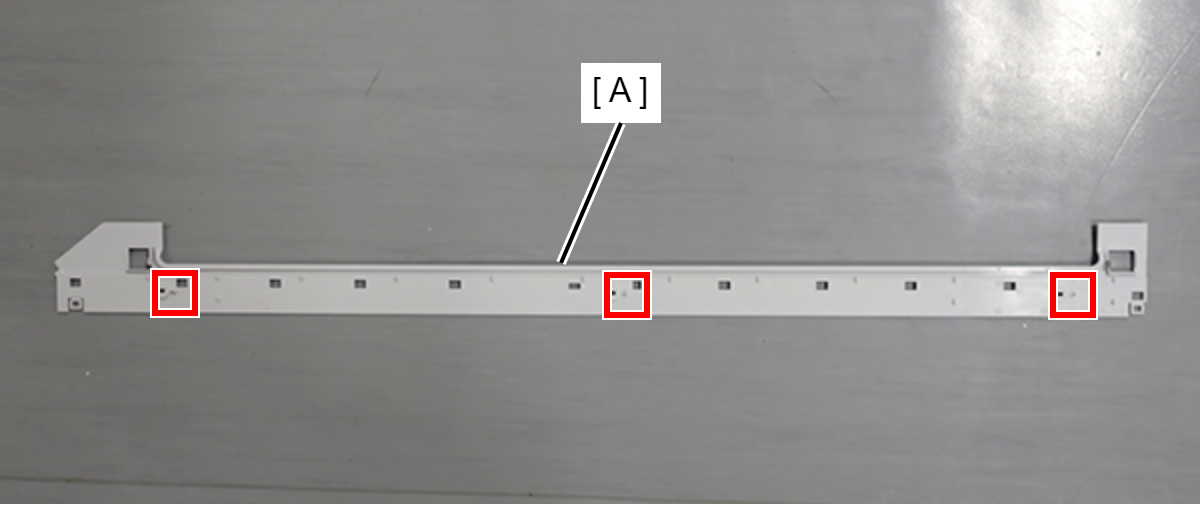

    • Install the Scanner Front Top Cover (A) while inserting its three dowels into the positioning holes in the scanner.
  53. Remove the eight screws and then remove the Printer Top Cover (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Silver M3x8 Cup P-tite screw
    • : Silver M3x8 Cup S-tite screw
    • : Black M3x8 Cup S-tite screw

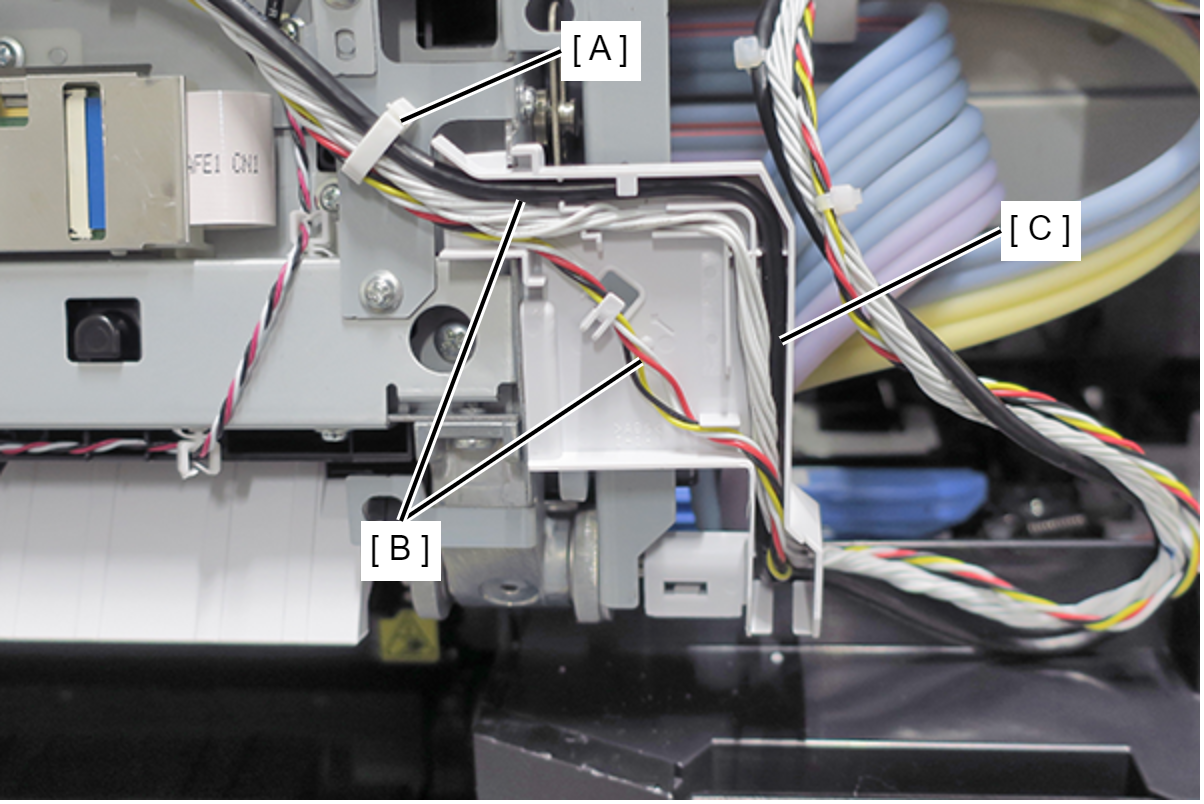

  54. Release cable (B) from clamp (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

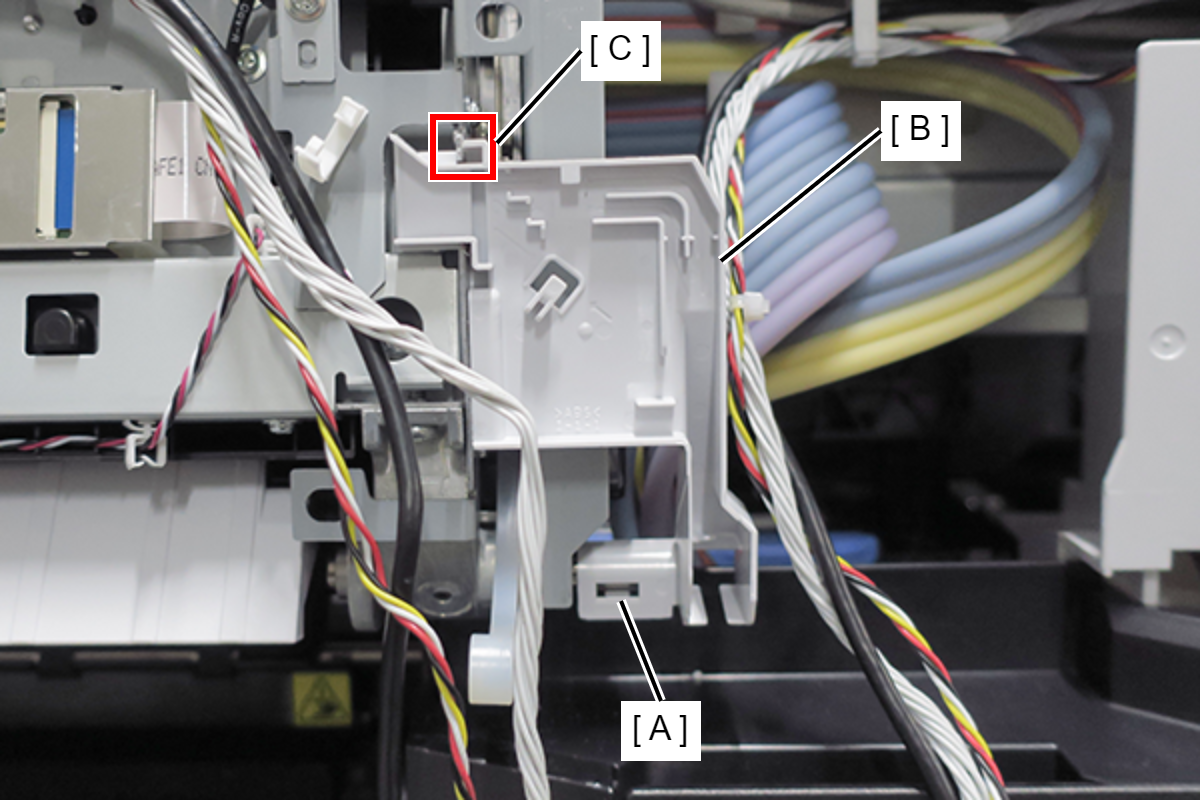

  55. Release the cable on the Cable Routing Holder (C), and remove the Cable Routing Holder (C). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    Assembly / 組み立て
    • Attach the Cable Routing Holder (B) to the shaft (A) of the Scanner Unit.
    • Attach the tab (C) of the Scanner Unit to the Cable Routing Holder (B).
  56. Release the cable from two clamps (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  57. Remove the two cables (C) from the connectors (B) of the Scanner Main Board. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  58. Remove the two cables (B) from wire saddle (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

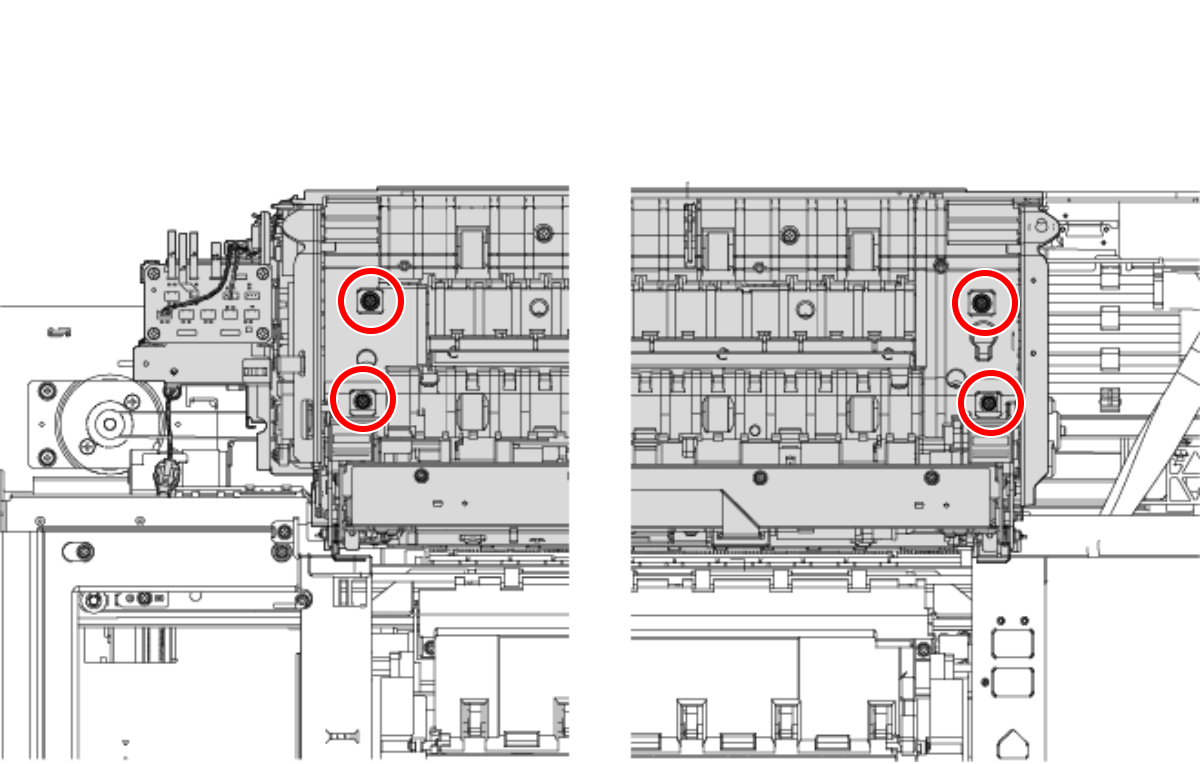

  59. Remove the four screws. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)


    • : Silver M4x10 Cup S-tite screw
  60. Attach the fixed slider on each of the two shafts. (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
  61. Release the sensor cable (A). (Only perform for SC-T5700DM series)
  62. Close the Scanner Unit (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

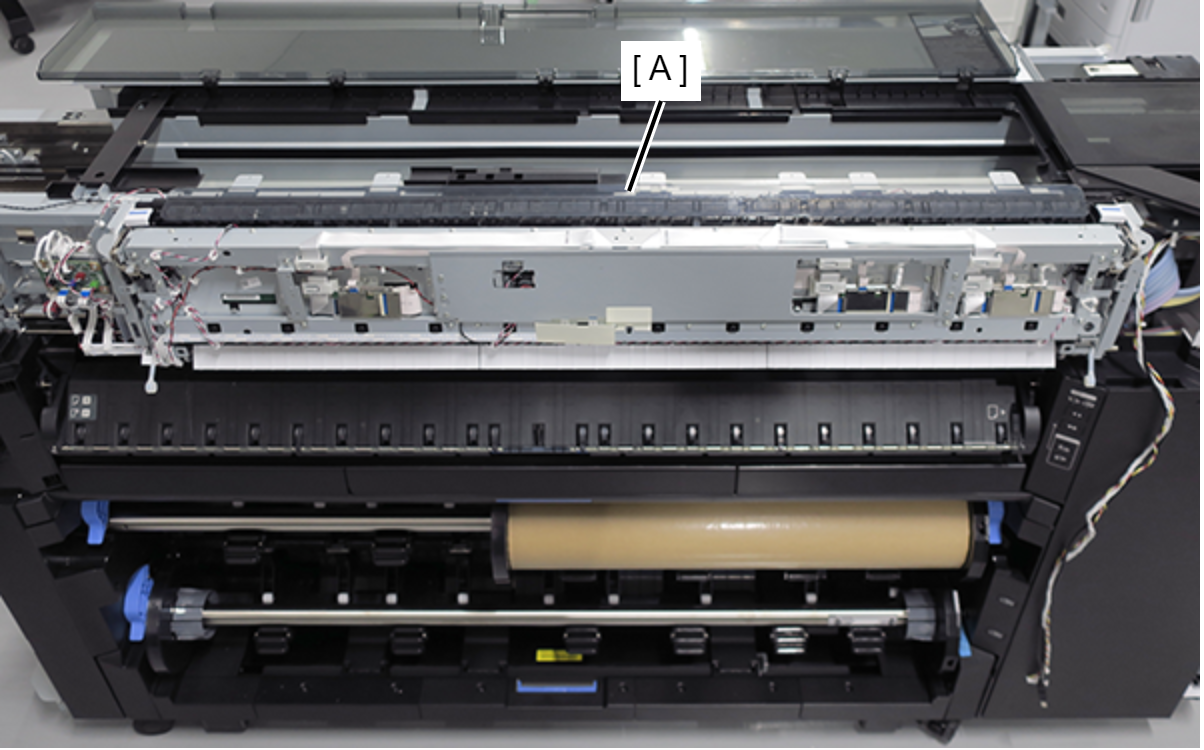

  63. Remove the Scanner Unit (A). (Only perform for SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    Assembly / 組み立て
    • Install the Scanner Unit while engaging its positioning holes with the two protrusions (A) on the printer.

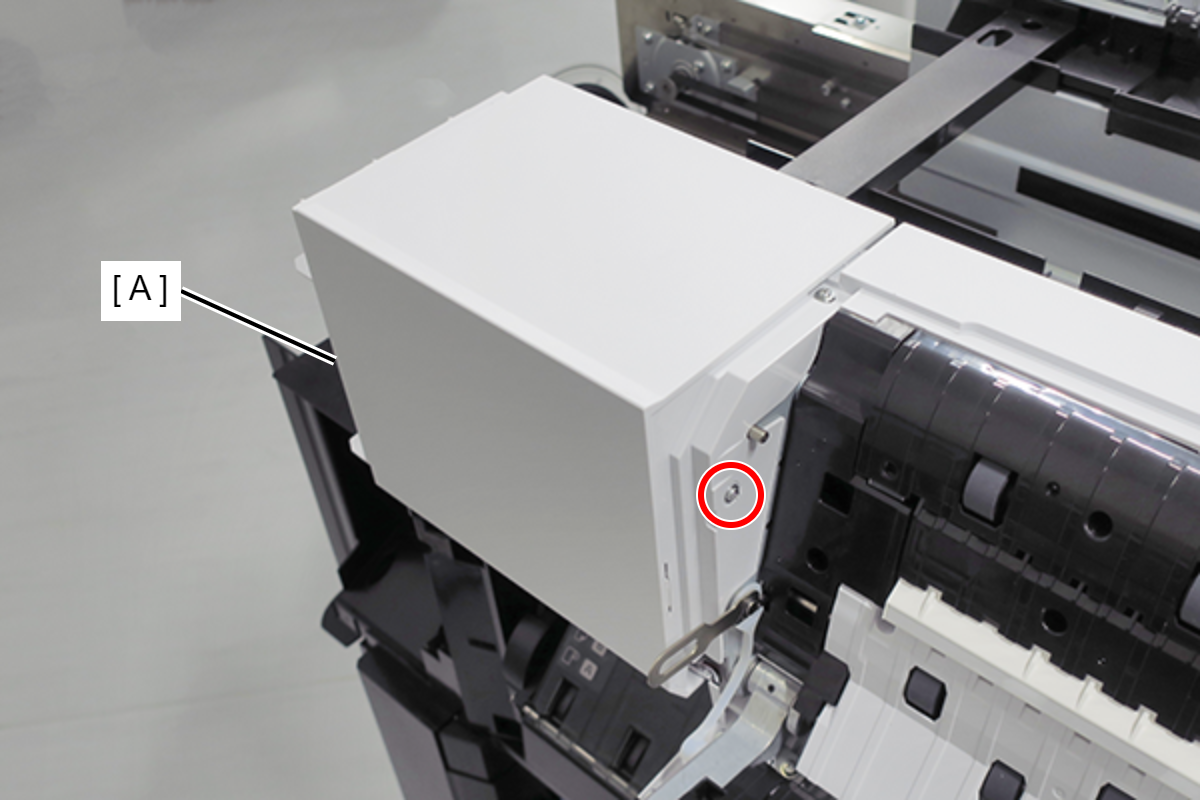

  64. Remove the screw.
    • : Silver M4x6 Cup S-tite screw
  65. Disengage the Production Stacker Paper Jam Detection Sensor (B) from the shaft (A).

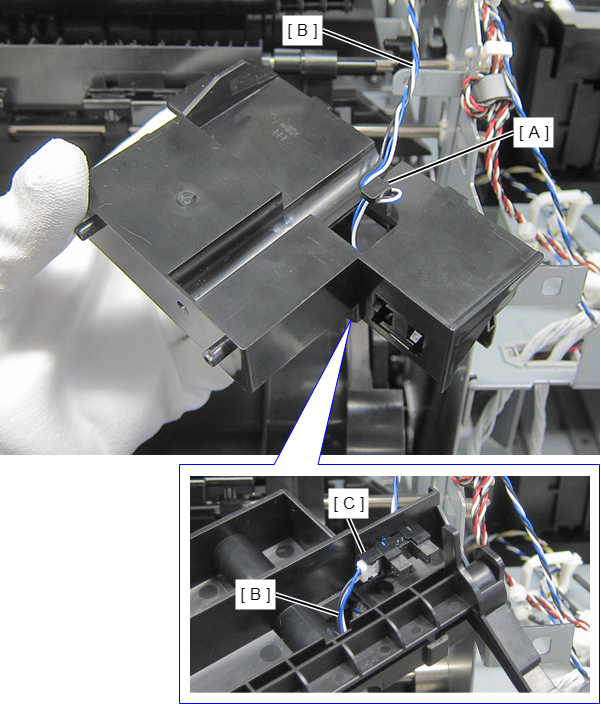

  66. Release cable (B) from the hook (A).

  67. Disconnect the cable (B) from the connector (C) on the backside.

    Assemble / 組み立て

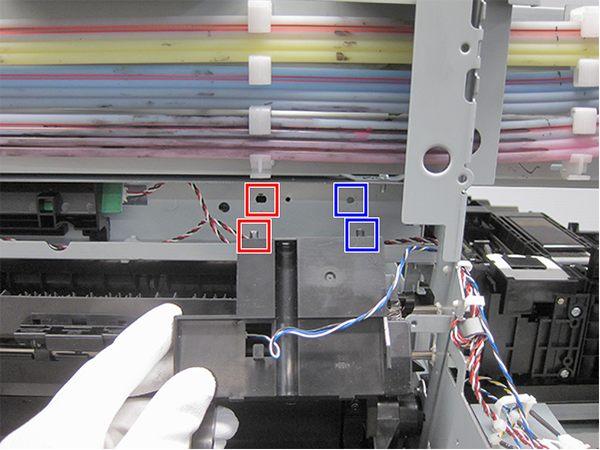

    There are positioning locations.

Adjustment / 調整

When removing/replacing this part, refer to following page and make sure to perform the specified operations including required adjustment.
