Home Side Front Caster

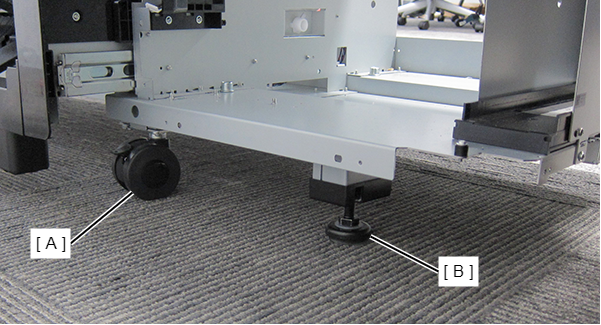

  1. Set the caster mount jig (B) beside the Home Side Front Caster (A).
  2. Turn the nut holder (B) in the direction of the arrow until the fixture (A) touches the floor.

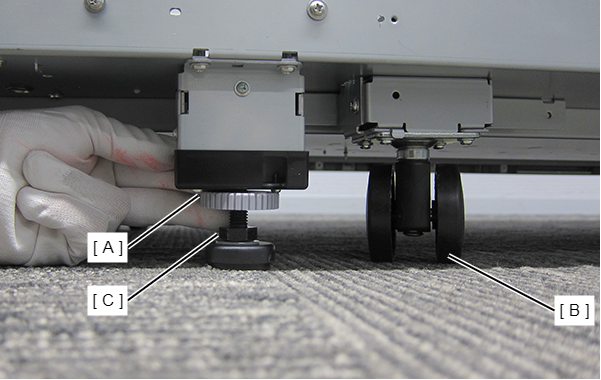

  3. Raise the nut holder (A).
  4. Turn the nut (C) with a wrench in the direction of the arrow until the caster (B) moves away from the floor.
  5. Pull out the Lower Spindle Holder (A).
  6. Remove the two screws, and then remove the Home Side Front Caster Support Frame (A).

    • : Silver M4x8 Cup S-tite screw

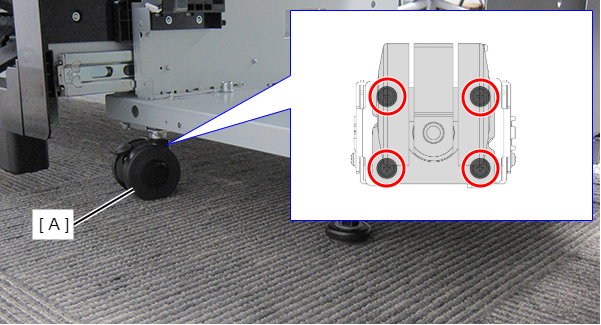

  7. Remove the four screws, and then remove the Home Side Front Caster (A).
    • : Silver M4x12 Cup S-tite screw
