# Ink Holder Housing

1. Open the Maintenance Box Cover (A).

2. Release the 2 tabs of the Maintenance Box Cover (A) in the order shown in the figure below, and remove.

3. Remove the Maintenance Box (A).

4. Remove the screw.


   • : Silver M3x8 Cup S-tite screw
5. Insert a flathead screwdriver and release the 2 hooks each, and remove the two screw cover (A).

6. Insert a flathead screwdriver and release the 2 hooks, and remove the screw cover (A).

7. Remove the three screws at the front side.

   • : Black M3x8 Cup P-tite screw
8. Remove the five screws at the right side.

   • : Silver M3x8 Cup S-tite screw
   • : Silver M4x8 Cup S-tite screw
9. Remove the four screws at the rear side.

   • : Silver M3x8 Cup S-tite screw with plastic washer
   • : Silver M3x8 Cup S-tite screw
10. On the printer rear side, release the dowel of the Home Side Cover Unit (A).

11. Insert a flathead screwdriver and release the 2 tabs each, and remove the Home Side Cover Unit (A) in the direction of the arrow.

12. Insert a flathead screwdriver and release the two hooks, and remove the screw cover (A).

13. Open the Printer Cover (A) and the Cutter Cover (B).

14. Remove the three screws at the front side.

    • : Silver M3x10 Cup P-tite screw
    • : Silver M3x8 Cup S-tite screw
15. Remove the screw at the top side.

    • : Silver M3x8 Cup S-tite screw
16. Remove the four screws at the rear side.

    • : Silver M3x8 Cup S-tite screw with plastic washer
    • : Silver M3x8 Cup S-tite screw

17. Remove the four screws at the left side.

    • : Silver M3x8 Cup S-tite screw

18. On the printer rear side, release the dowel of the Full Side Cover Unit (A).


19. Remove the Full Side Cover Unit (A) from the dowels, and remove it while it in the direction of the arrow.


    Assemble / 組み立て

    When installing the Full Side Cover Unit (B), carefully the Head FFC (A) so that it does not damage.

20. Release the sensor cable (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

21. Open the Printer Cover (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

22. Remove the Home Side Top Cover (B). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)


23. Remove the four screws at the front side. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)


    • (Right):Silver M3x8 Cup S-tite screw

    • (Left):SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series: Silver M3x8 Cup S-tite screw, SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series: Silver M4x6 Shoulder Screw
    • : Silver M3x10 Cup P-tite screw

    Assemble / 組み立て

    Tighten the right green screw with the grounding cable. (SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series only)

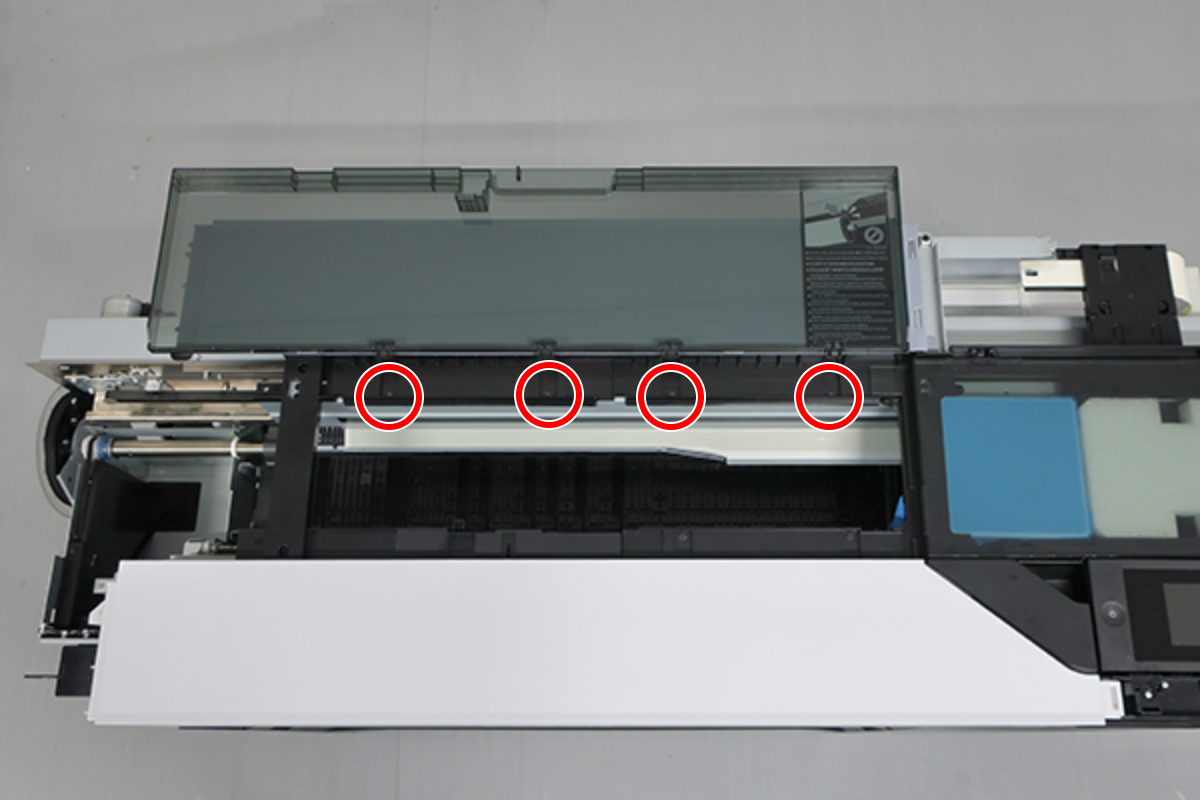

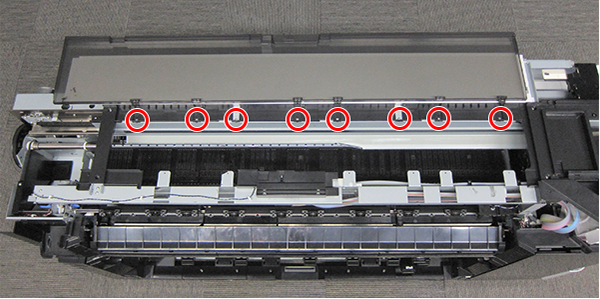

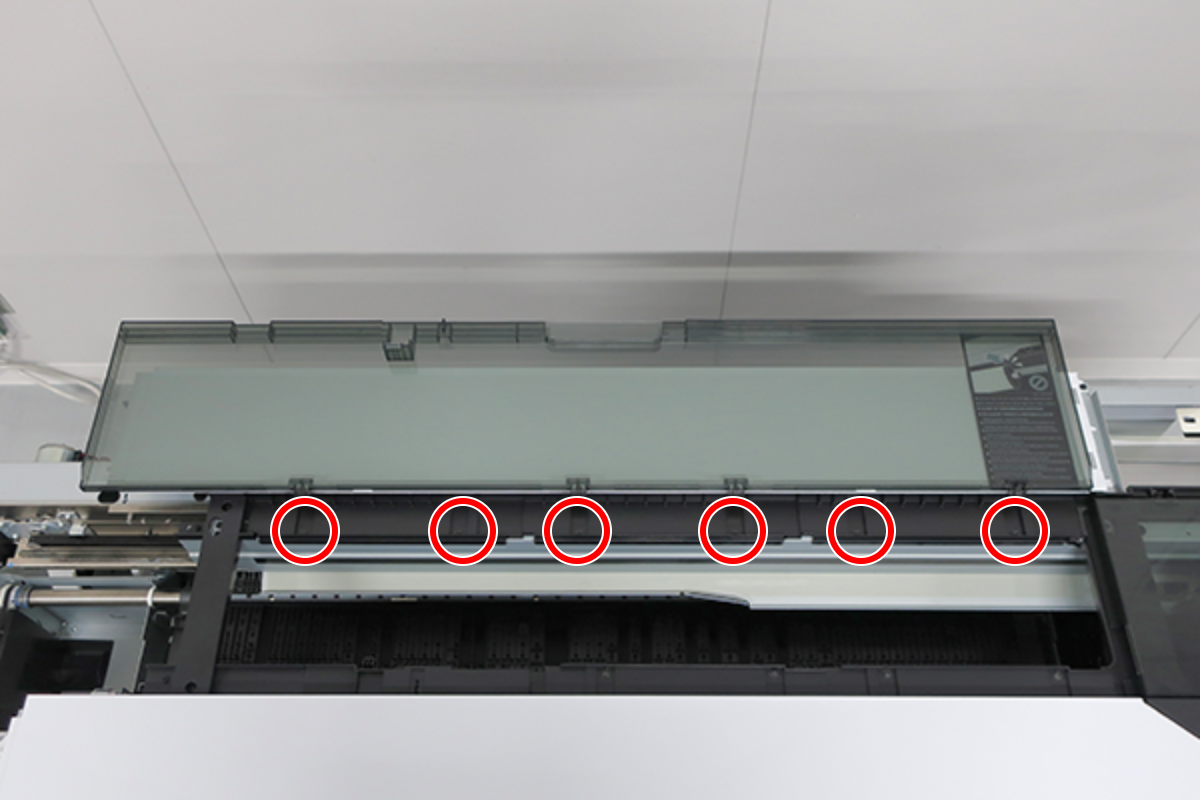

24. Remove the screws on the top. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)
    SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series: 6 pcs


    • : Black M3x8 Cup S-tite screw
    SC-T5700D series: 4 pcs


    • : Black M3x8 Cup S-tite screw
    SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E: 2 pcs

    • : Black M3x8 Cup S-tite screw
25. Remove the Front Top Cover (A) frontward. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DL series/SC-T7700DL series)

26. Remove the screws on the top.
    SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series/SC-P8500DM series/SC-T7700DM series: 8 pcs

    • : Silver M3x8 Cup S-tite screw
    SC-T5700D series/SC-T5700DM series: 6 pcs


    • : Silver M3x8 Cup S-tite screw
    SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E: 4 pcs


    • : Silver M3x8 Cup S-tite screw

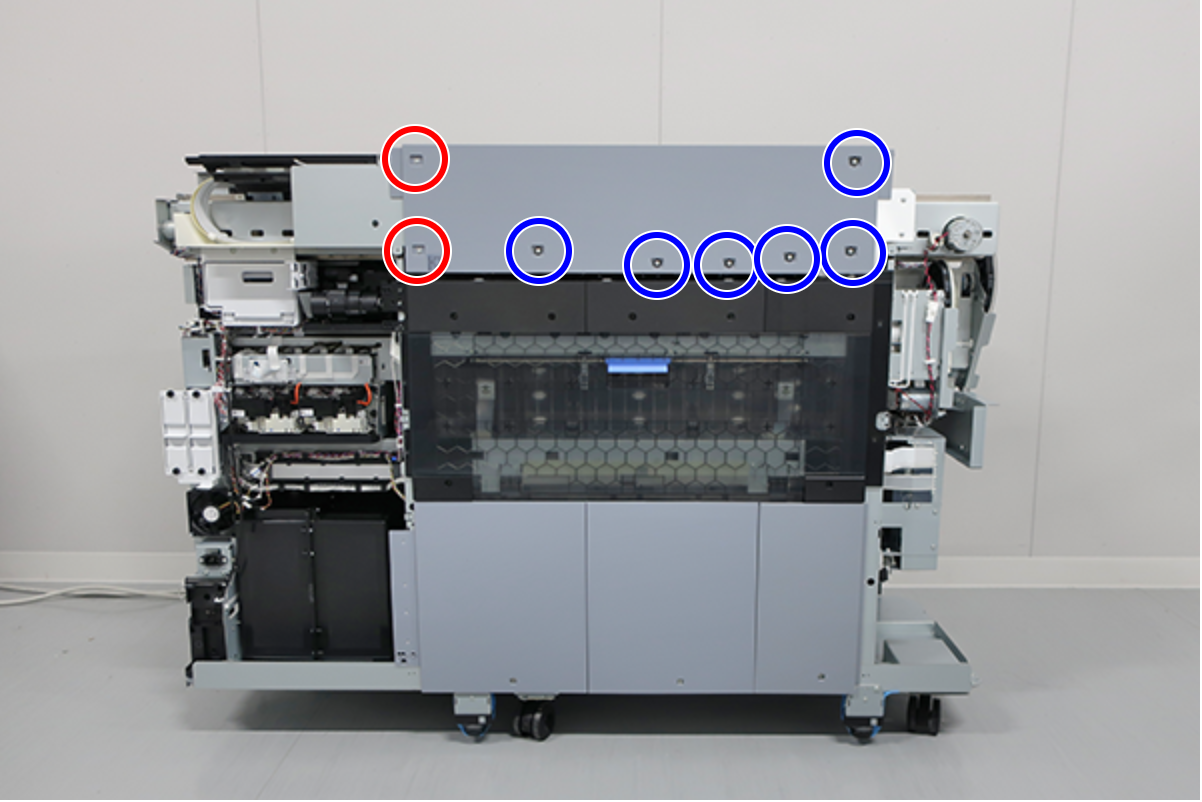

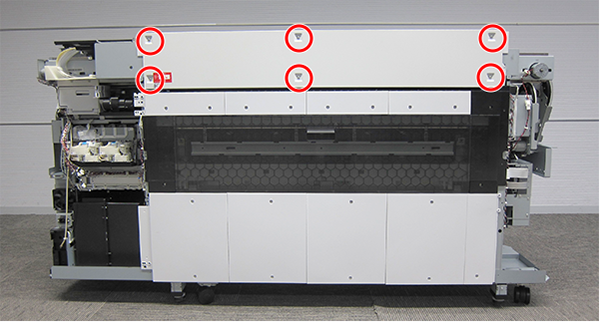

27. Remove the screws on the back.
    SC-P8500D series/SC-T7700D series/SC-P8500DL series/SC-T7700DL series/SC-P8500DM series/SC-T7700DM series: 6 pcs

    • : Silver M3x8 Cup S-tite screw
    SC-T5700D series/SC-T5700DM series: 11 pcs


    • : Silver M3x8 Cup S-tite screw
    • : Silver M3x8 Cup S-tite screw with plastic washer
    SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E: 8 pcs


    • : Silver M3x8 Cup S-tite screw
    • : Silver M3x8 Cup S-tite screw with plastic washer
28. Remove the Printer Cover Unit backward.

29. Open the Ink Cartridge Cover (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

30. Remove the two screws.
31. Release the 2 hooks and then remove the Take-up Button Board Cover (A).

    • : Black M3x10 Cup P-tite screw (SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series only)
    • : Black M3x10 Cup P-tite screw (SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
    • :Black M3x6 Cup S-tite screw (SC-P8500DL series/SC-T7700DL series)
32. Remove the cable (A) from the connector.

33. Open the Ink Cartridge Cover (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

34. Remove the two screws.
35. Release the 2 hooks and then remove the Roll Removal Board Cover (A).

    • : Black M3x10 Cup P-tite screw (SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)
    • :Black M3x6 Cup S-tite screw (SC-P8500DL series/SC-T7700DL series)
36. Remove the cable (A) from the connector.


37. Remove the two screws, and remove the Maintenance Cover (A).




    • : Silver M3x8 Cup S-tite screw
38. Remove the cable (B) from the relay connector (A).
39. Release the cable (B) from three clamps.



    Assemble / 組み立て

    Push the two dowels (A) of the Maintenance Cover (A) in the positioning holes of the case.

40. Detach the Ink Ink Cartridge Cover (A) from the three shafts. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

41. Remove the six screws. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)

    • : Silver M3x8 Cup S-tite screw



42. Release the dowel of the Ink Holder Housing (A), and remove it frontward. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series/SC-P8500DM series/SC-T7700DM series/SC-T5700DM series)



    Caution / 注意

    Carefully remove the Ink Holder Housing not to pull the cables connected to the cover.

    Assemble / 組み立て

    When removing the Ink Holder Housing (C) to remove another part or component, remove the sensor (B) from the relay connector (A), and then place the cover beside the printer. If the ink tube (A) is detached from the hook of the Ink Bifurcated Flow Channel Unit (B), set the tube properly, or ink may not be supplied to the ink tube, resulting in print failure.

43. Remove the two screws , and remove the USB cable (A). (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series)

44. Disengage the sensor (B) from the two hooks. (Only perform for SC-P8500D series/SC-T7700D series/SC-T5700D series/SC-P6500D series/SC-P6500DE series/SC-T3700D series/SC-T3700DE series/SC-P6500E series/SC-T3700E series)

    • : Silver M3x8 P-tite screw
