Outlinger Board
- Remove the four screws and then remove the Rear Housing Assy (A).
: C.B.P-TITE-SCREW-3x10-F.ZN-3C
Assembly / 組み立てAttach the two dowels of the Rear Housing Assy (A) to the positioning holes on the Housing Left (B) and the Housing Right (C).
- Disengage the hook, and remove the Maintenance Box Cover (A).
- Open the ADF/SCN Unit and remove the screw securing the Housing Right (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Remove the three screws securing the Housing Right (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Lift the Housing Right (A) upward to release the two hooks on the front side of the Housing Right (A).
Remove the dowels to the rear, and lift up the Housing Right (A) to remove it.
Assembly / 組み立てInsert the eight tabs on the Housing Right (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).
- Open the ADF/SCN Unit and remove the screw securing the Housing Left (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Remove the two screws securing the Housing Left (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
Lift the Housing Left (A) upward to release the two hooks each on the front side and rear side of the Housing Left (A), and then remove the Housing Left (A).
Assembly / 組み立てInsert the eight tabs on the Housing Left (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).
- Peel off the CRCM FFC (B) from the CRCM FFC Sheet (A).
- Peel off the double-sided tape at two locations and then remove the CRCM FFC Sheet (A).

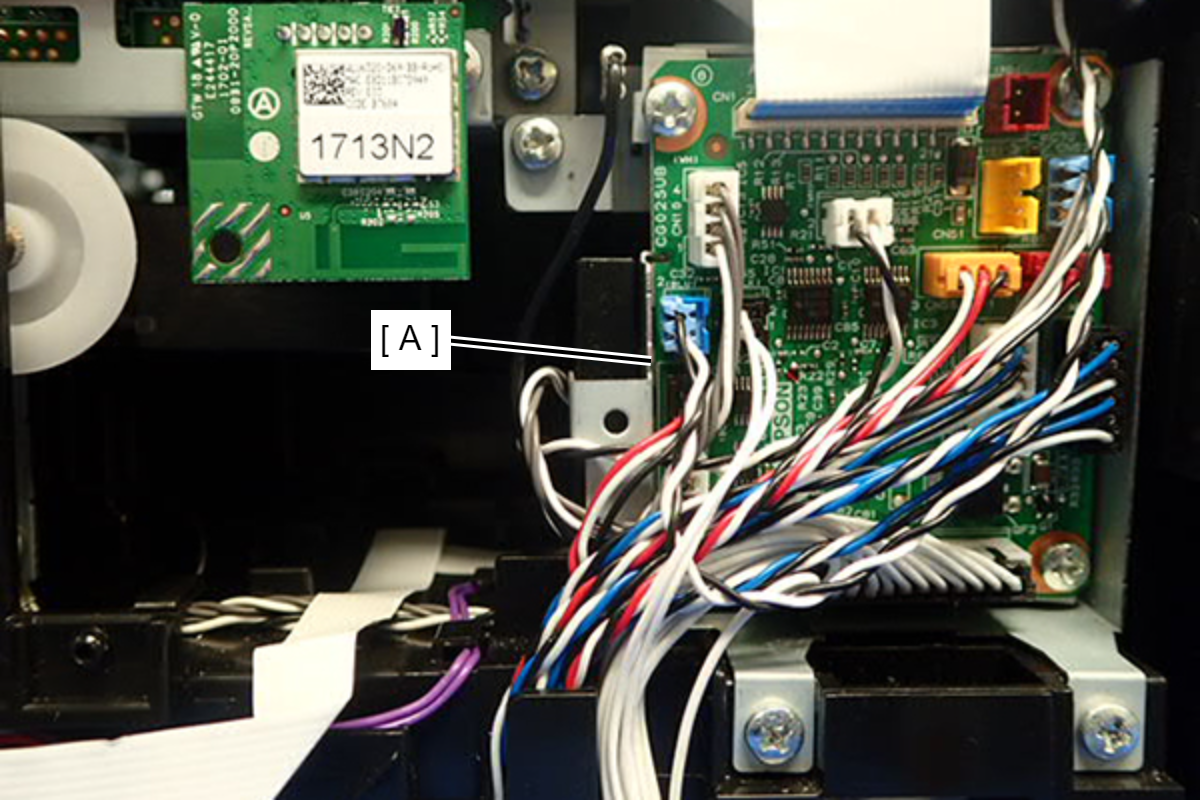

- Disconnect the cables and FFCs from all connectors on the Relay Board Assy (A).

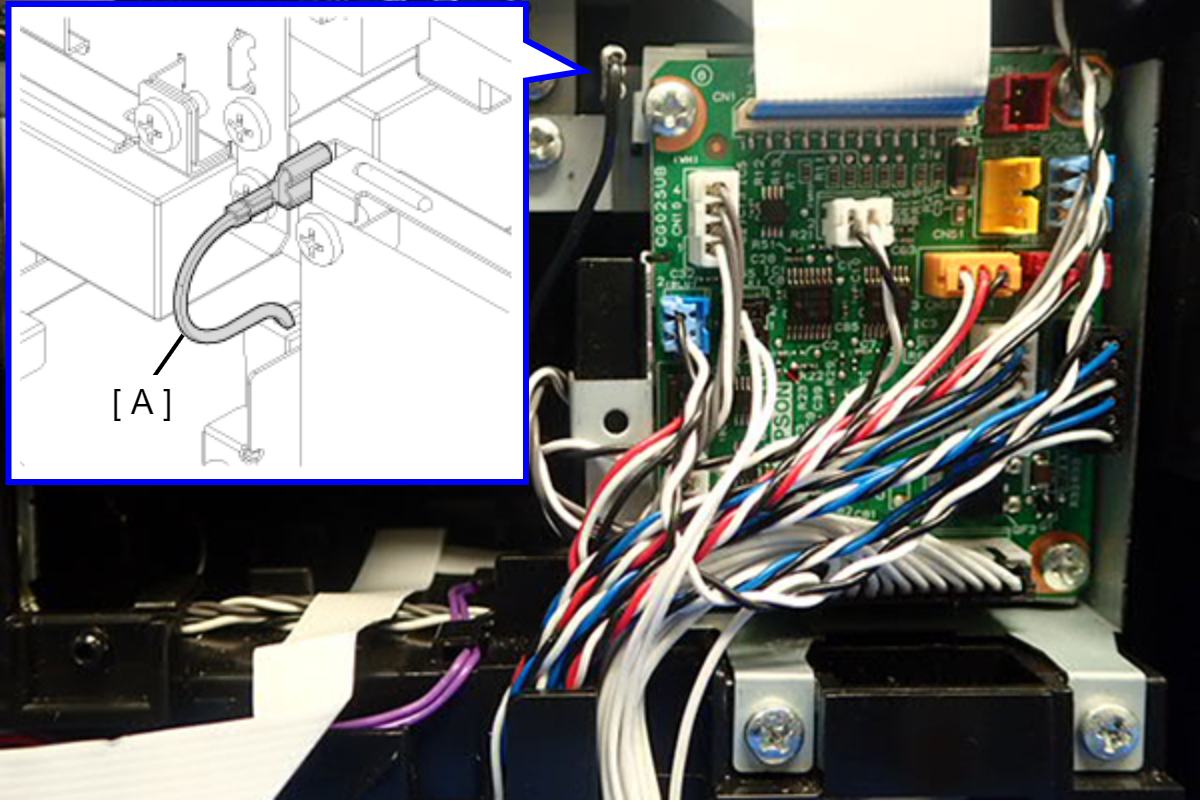

- Remove the grounding cable (A) from the Frame.

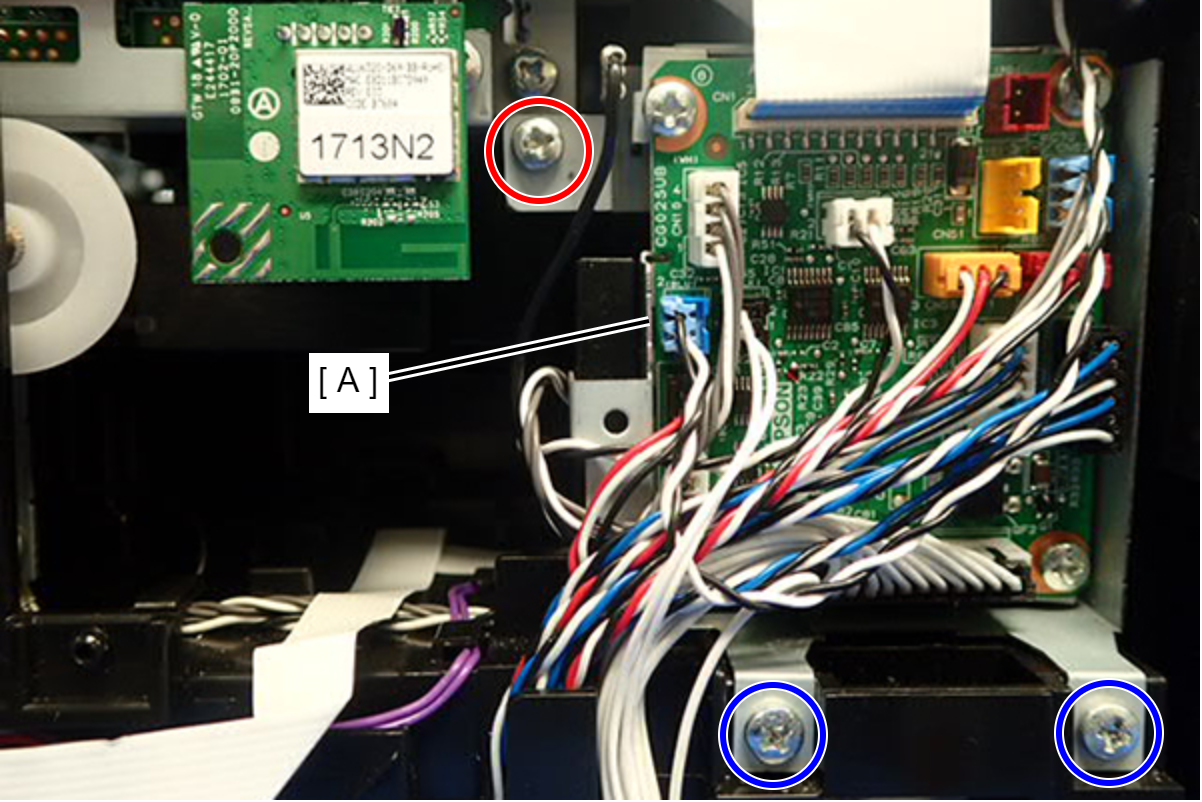

- Remove the three screws and remove the Relay Board Assy (A).
- : C.B.S-TITE-SCREW-3x6-F.ZN-3C
: C.B.P-TITE-SCREW-3x10-F.ZN-3C

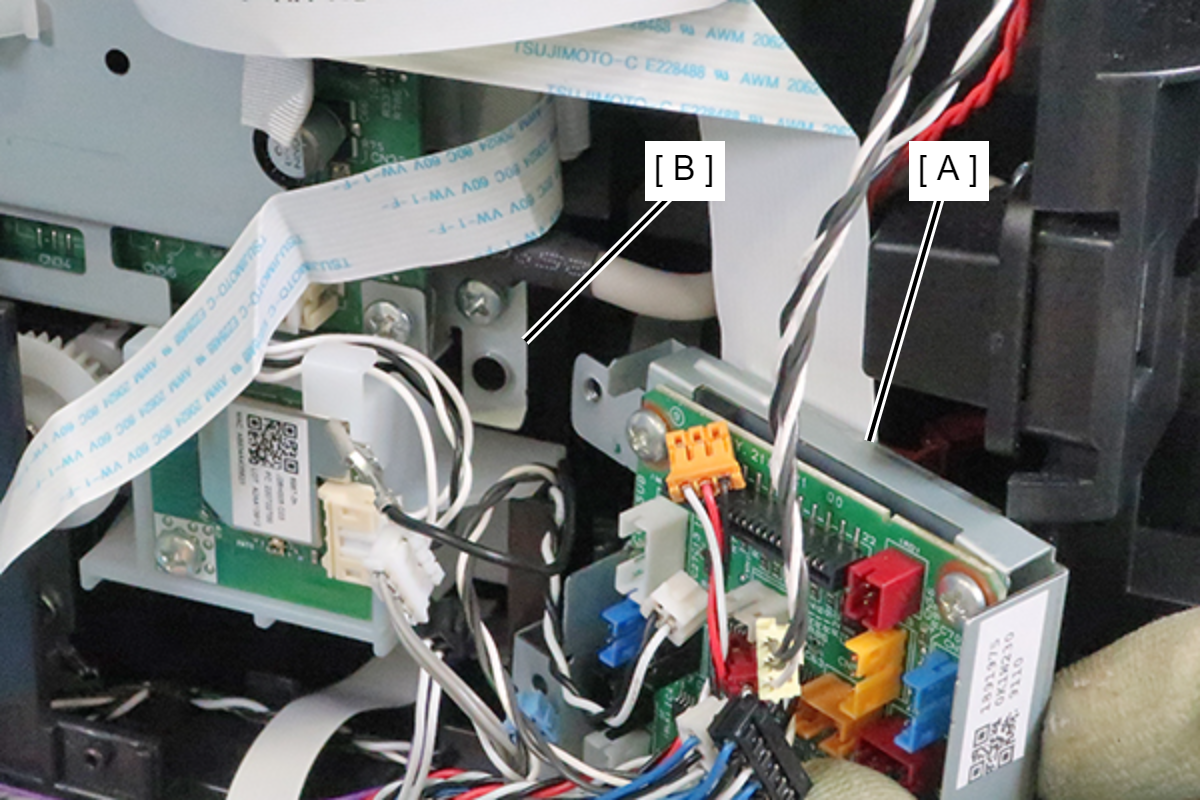

Assembly / 組み立てInstall the Relay Board Assy (A) with its frame behind the Main Board Assy (B).

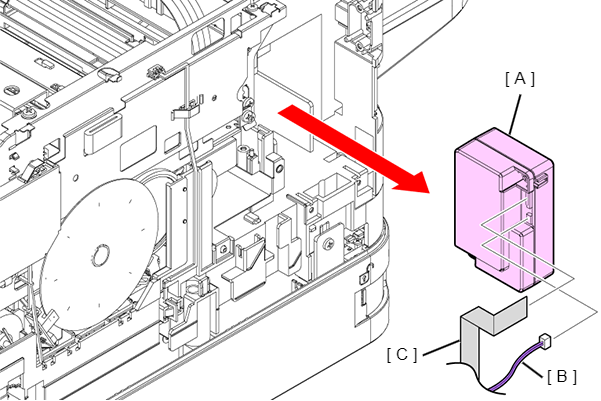

- Disconnect the cable (B) and FFC (C) from the connectors of the Outlinger Board (A), and remove the Outlinger Board (A) in the direction of the arrow.
