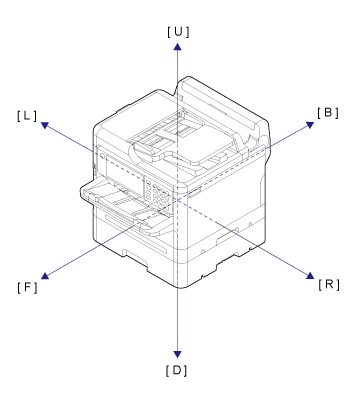

Orientation Definition
The terms used for indicating the orientation/direction throughout this chapter are as follows.
| Symbol | Direction | Symbol | Direction |
|---|---|---|---|
| U | Top | D | Bottom |
| F | Front | B | Rear |
| L | Left side (Full side) | R | Right side (Home side) |
