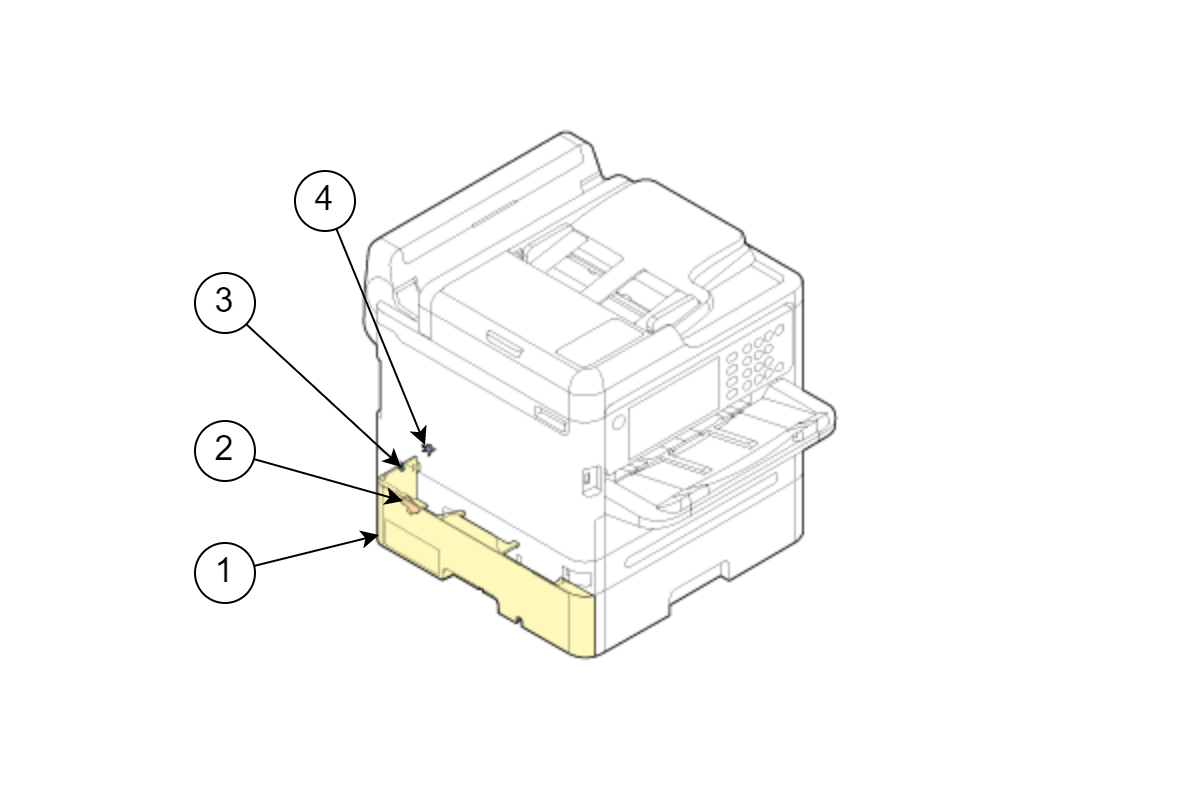

Options
| No. | Name |
|---|---|
1 | |
| 2 | |
| 3 | Optional Paper Cassette Rear Cover |
| 4 | Optional Paper Cassette Right Cover |
| 5 | Optional Paper Cassette Rear Cover Slider |
| 6 | Paper Guide Sub |
