EEPROM dump
Required Tool
---
Procedure

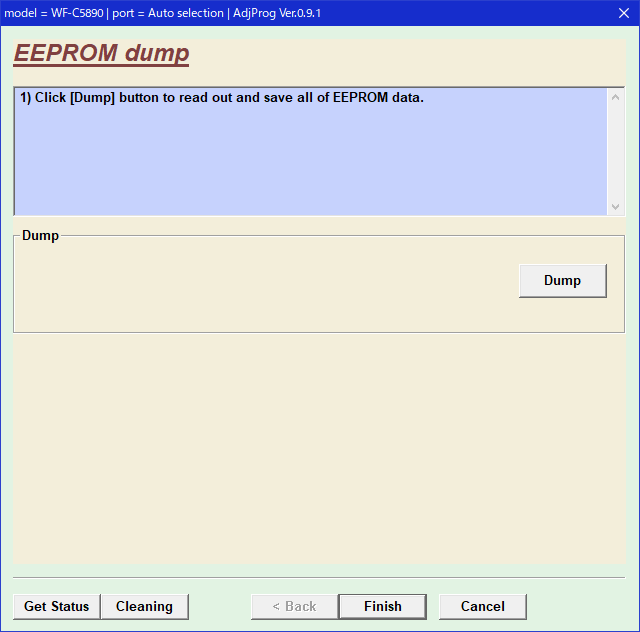

- Start the Adjustment Program, and select “EEPROM dump”.
- Press the Dump button to read all EEPROM data and save it to file in .eep format.
