# PW/First dot position adjustment

#Required Tool

• Photo matte paper (A4)
• Plain Paper (A4)

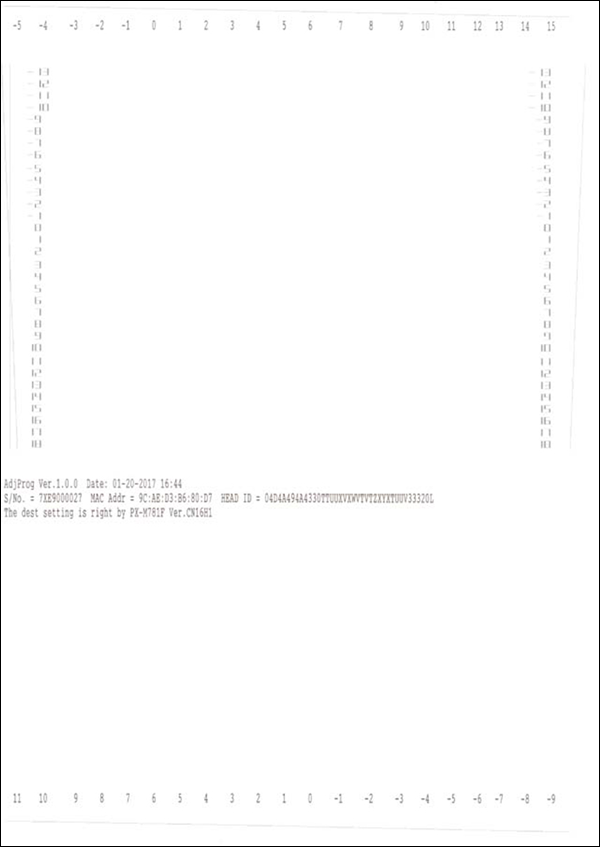

#Adjustment pattern

#Judgment

PW Adjustment

From the stepped patterns printed on the bottom, top, left, and right edges of the paper, select the numerical value that is 5 mm from the edge of the paper for each of them.

First dot position adjustment

Select the value at the location of the misaligned pattern and straight lines printed on the left of the paper are overlapping.

#Procedure

1. Start the Adjustment Program, and select “PW/First dot position adjustment”.

2. Set Photo matte paper in the manual tray, and normal paper in the Paper Cassette (C1).

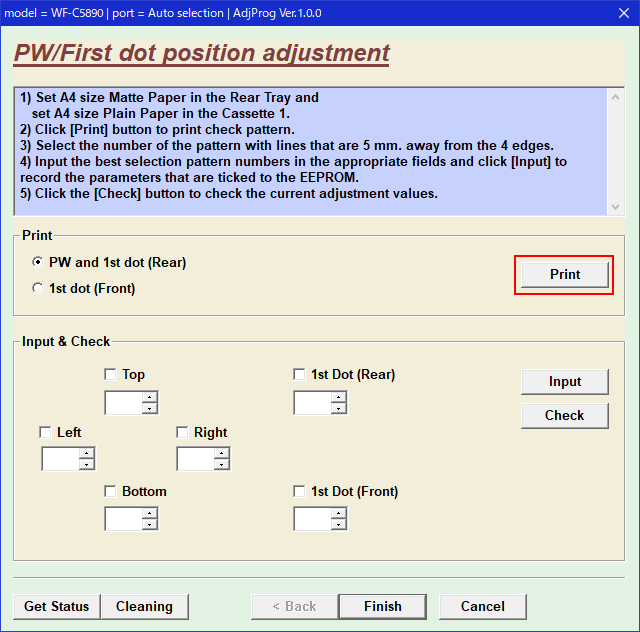

3. Select the “PW and 1st dot (Rear)” or “1st dot (Front)” and press the Print button to print the adjustment pattern.



4. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

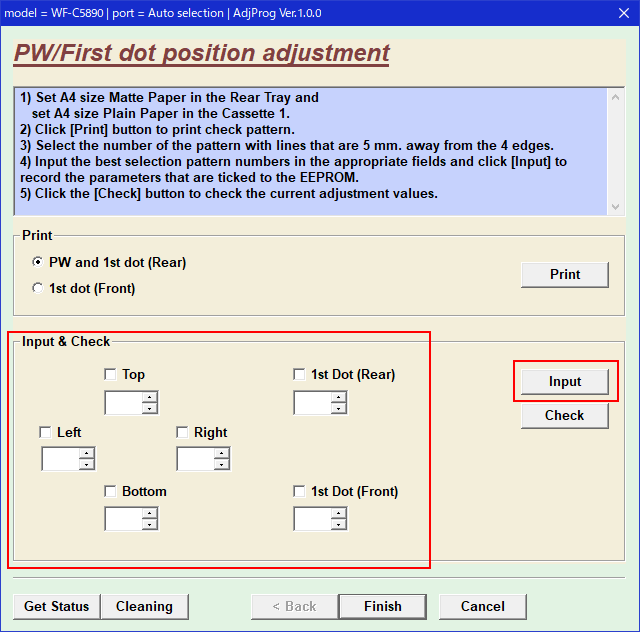

5. Enter the adjustment value.

   • PW Adjustment: Top, Left, Right, Bottom
   • 1st dot (Rear): Left margin
   • 1st dot (Front): 1st dot (Front)

6. Check that an adjustment value is entered, press the Input button, and save the adjustment value in the printer.


Check Point / チェックポイント

If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value, following which again print the adjustment pattern and determine the adjustment value.
