Optional Paper Cassette

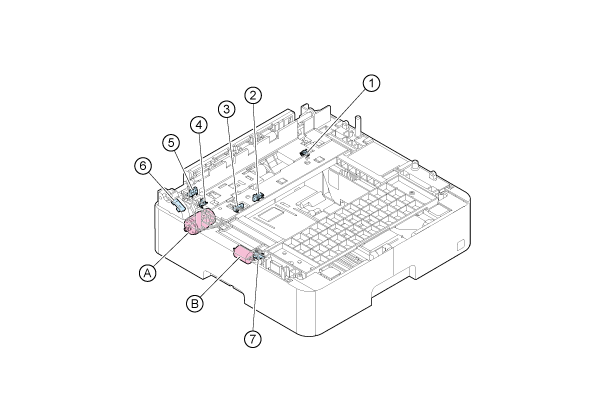

Motors and sensors
| No. | Name | Function | Type |
|---|---|---|---|
| A | ASF Motor | Used for driving the feed mechanism. | DC motor (42VDC±5%) |
| B | Lift Motor | Used to raise the Paper Cassette Hopper. | DC motor (42VDC±5%) |
| 1 | Cassette Detection Sensor | Detects the insertion state of the paper cassette. | Mechanical contact (3.3VDC±5%) |
| 2 | Cassette Paper Detection Sensor | Detects whether or not there is paper inside the paper cassette. | Transmissive photo-interrupter (3.3VDC±5%) |
| 3 | Hopper Position Sensor | Detects the up/down state of the hopper. | Transmissive photo-interrupter (3.3VDC±5%) |
| 4 | Jam Cover Detection Sensor | Detects the open/closed state of the rear cover. | Mechanical contact (3.3VDC±5%) |
| 5 | Feed Sensor | Used for paper conveyance detection from the pickup roller. | Transmissive photo-interrupter (3.3VDC±5%) |
| 6 | ASF Encoder | Used for ASF motor operation control. | Transmissive photo-interrupter (3.3VDC±5%) |
| 7 | Lift Phase Sensor | Used for detecting the phase of lift motor driving. | Transmissive photo-interrupter (3.3VDC±5%) |
