Touch panel check
Required Tool
---
Procedure

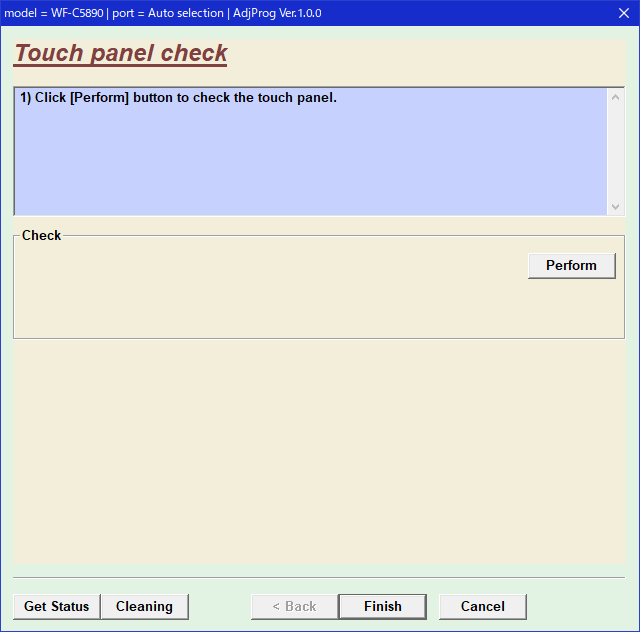

- Start the Adjustment Program, and select “Touch panel check”.
- Press the Perform button to perform the “Touch panel check”.
