Power Supply Assy (WF-M5399 Series)

Adjustment / 調整

When replacing/removing this part, refer to the following pages and make sure to perform the specified operations including the required adjustments.

  1. Remove the Rear Unit (A) in the direction of the arrow while pressing the buttons inward.
  2. Open the ASF Cover (A) and remove the two screws securing the Rear Housing Assy (B).

    • : C.B.P-TITE-SCREW-3x10-F.ZB-3C
  3. Remove the four screws securing the Rear Housing (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

  4. Remove the Rear Housing (A) downward.

    Assembly / 組み立て

    Attach the two dowels of the Rear Housing (A) to the positioning holes on the Housing Left (B) and the Housing Right (C).

  5. Remove the Rear Upper Cover Assy (A) in the direction of the arrow.

    Assembly / 組み立て

    Insert the four tabs of the Rear Upper Cover Assy (A) to the positioning holes of the Housing ASF (B).
  6. Remove the two screws securing the Housing ASF (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  7. Open the Printer Cover (A) and remove the four screws, and then remove the Housing ASF (B).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  8. Disengage the hook, and remove the Maintenance Box Cover (A).
  9. Remove the three screws securing the Housing Right (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  10. Remove the two screws securing the Housing Right (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  11. Lift the Housing Right (A) upward to release the two hooks on the front side of the Housing Right (A).

  12. Remove the dowels to the rear, and lift up the Housing Right (A) to remove it.

    Assembly / 組み立て

    Insert the four tabs of the Housing Right (A) to the positioning holes of the RIPS Unit (B).
  13. Remove the three screws securing the Housing Left (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  14. Remove the two screws securing the Housing Left (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

  15. Lift the Housing Left (A) upward to release the two hooks each on the front side and rear side of the Housing Left (A), and then remove the Housing Left (A).

    Assembly / 組み立て

    Insert the four tabs of the Housing Left (A) to the positioning holes of the RIPS Unit (B).
  16. Remove the Printer Cover (A) upward.
  17. Remove the seven screws and remove the Housing Top (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  18. Remove the two screws securing the Cable Guide (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Check Point / チェックポイント

    When removing the screws, if the screwdriver interferes with the ADF/SCN Unit, use a stubby screwdriver.
  19. Peel off the CRCM FFC (B) from the CRCM FFC Sheet (A).
  20. Peel off the double-sided tape at two locations and then remove the CRCM FFC Sheet (A).
  21. Disconnect the cables (B) from the connector (CN20, CN51, CN56) of the Relay Board (A).

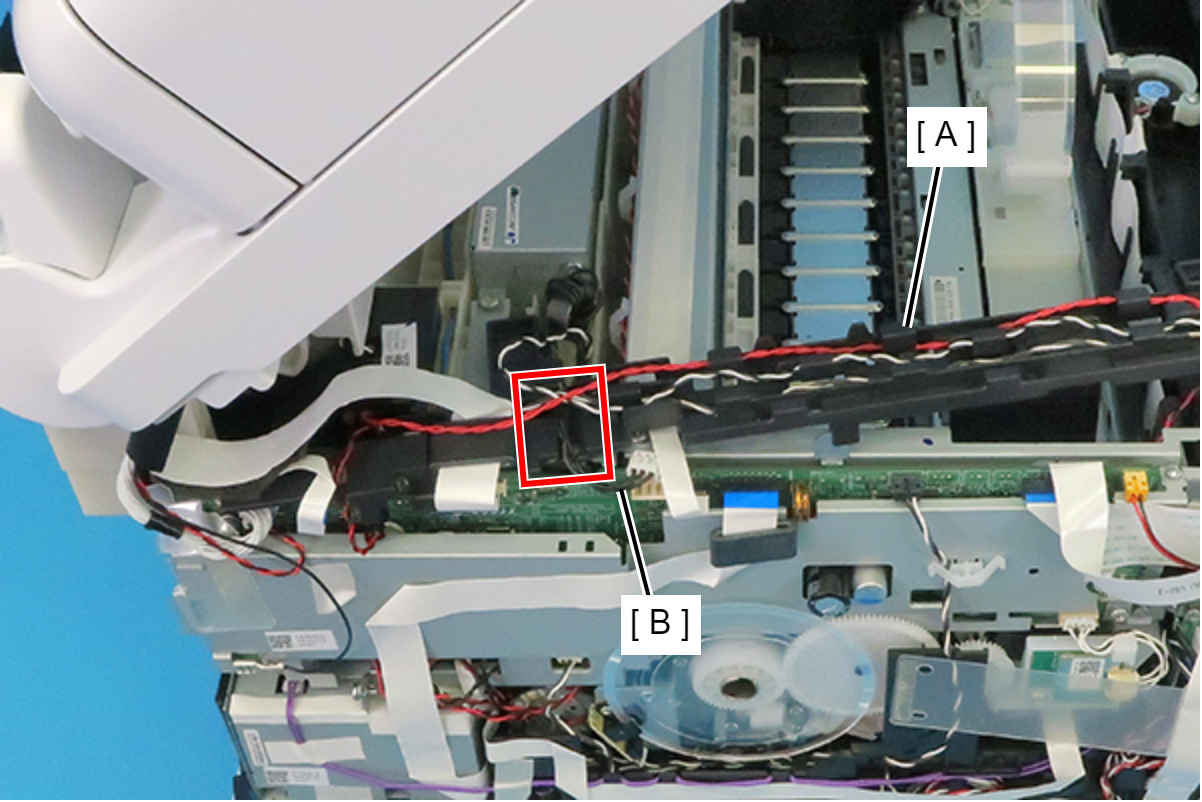

  22. Remove the acetate tape (A), and release the cable (B) from the two guides.
  23. Disconnect the two cables (B) from the connectors (CN74, CN80) of the Main Board (A).
  24. Remove the two screws, and release the ground wire (A) from the slit to remove it.
    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C


    Assembly / 組み立て

    Attach the ground wire with the terminal (A) oriented as shown below.
  25. Move the Cable Guide as shown below.
  26. Remove the two screws, then remove the PS Ground Plate (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C
    Check Point / チェックポイント

    A ground wire (B) is connected to the PS Ground Plate (A) depending on the region of sale.

    If the ground wire (B) is connected, remove the wire (B) by removing the screw.

    • : C.B.(O)SCREW,4X5,F/ZN-3C
    Assembly / 組み立て

    Assemble ensuring that screw types are correct.
  27. Remove the two screws securing the Rear ASF Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

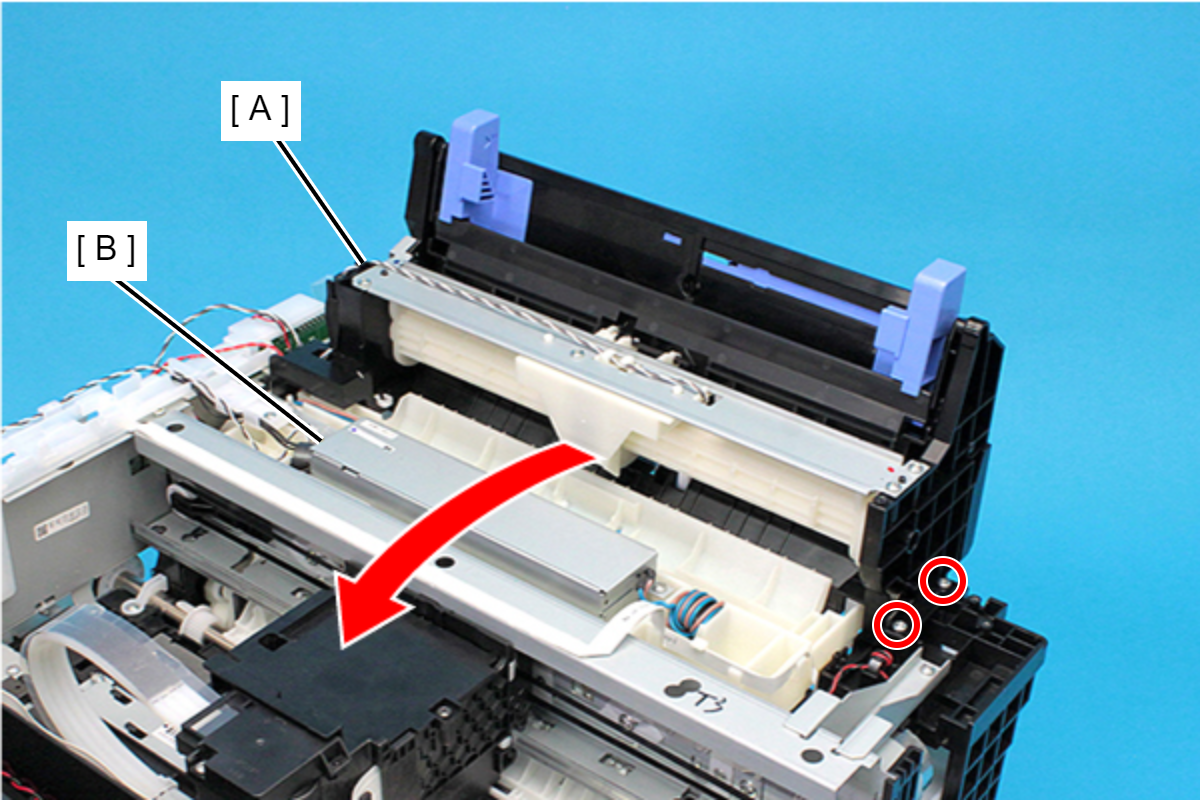

  28. Remove the two screws, and move the Rear ASF Assy (A) to in front of the Power Supply Assy (B).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  29. Release the cables (B) from the slit of the Cable Guide (B).
  30. Remove the screw securing the AC Inlet (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  31. Release the FFC (B) from three hooks on the Rear ASF Upper Guide Assy (A).
  32. Remove the 4 screws securing the Rear ASF Upper Guide Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

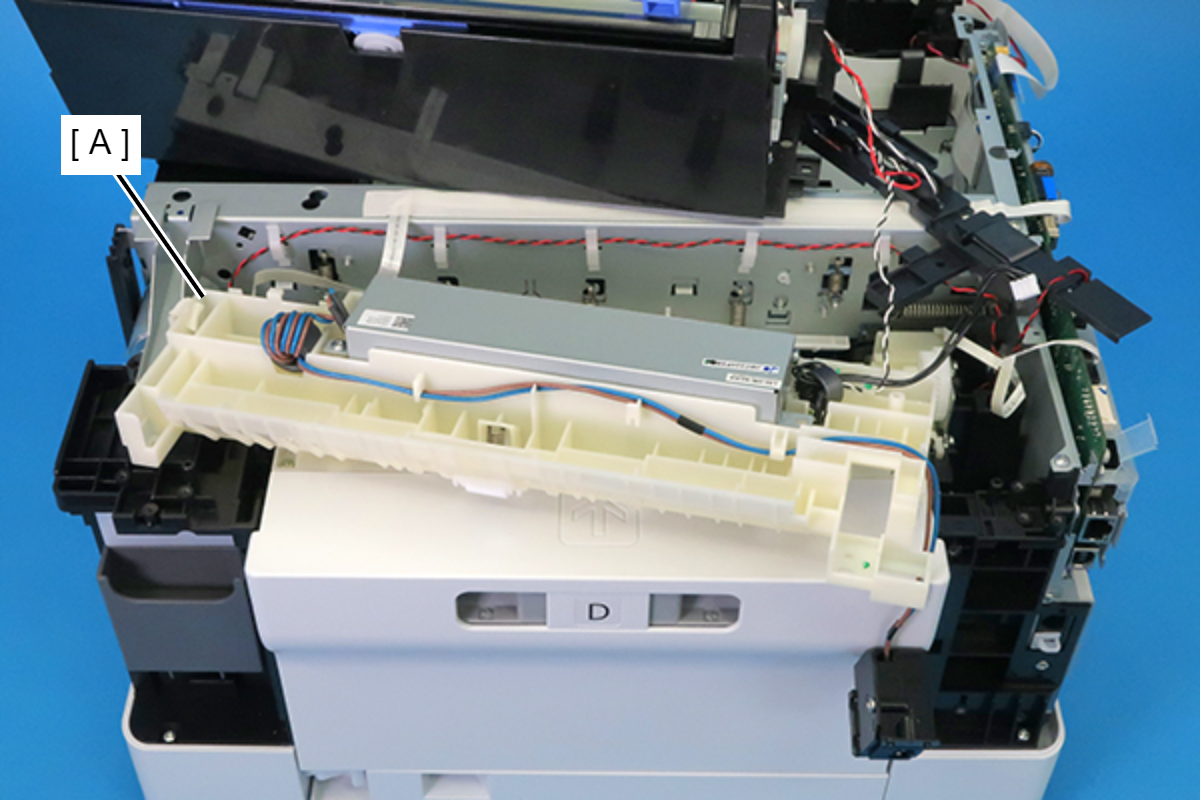

  33. Move the Rear ASF Upper Guide Assy (A) back.

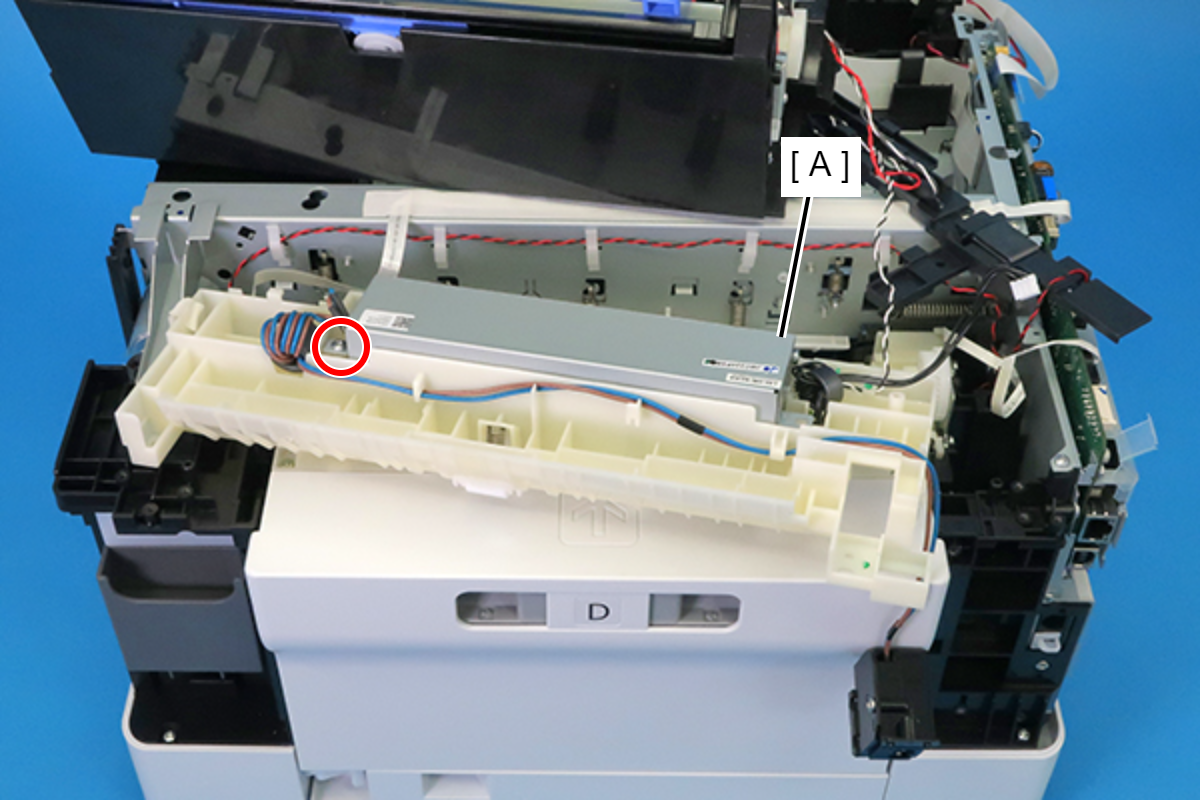

  34. Remove the screw and remove the Power Supply Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Assembly / 組み立て
    • First, insert the AC inlet (A) into the hole.

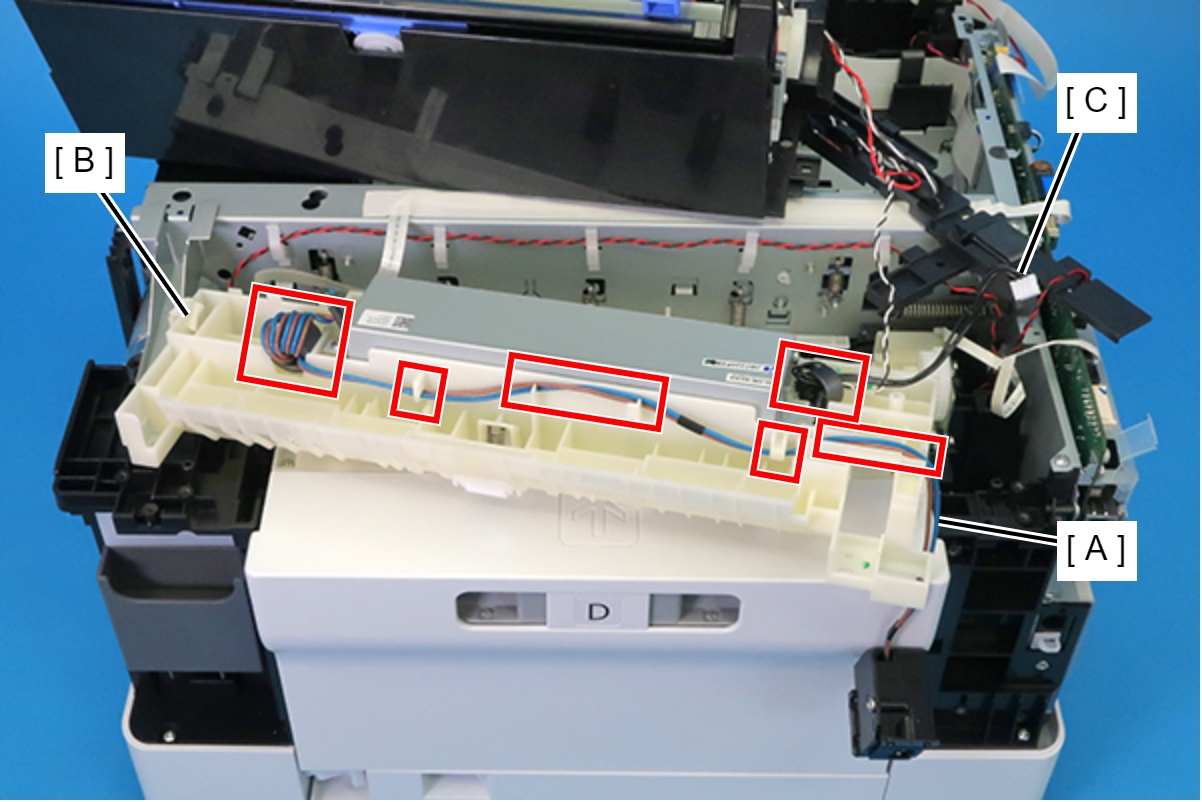

    • Route the AC cable (A) through the Rear ASF Upper Guide Assy (B) slit (2 locations), hook (2 locations) and guide (1 location), and the PS cable (C) through the Rear ASF Upper Guide Assy (B) slit (1 location).
