Lubrication 8

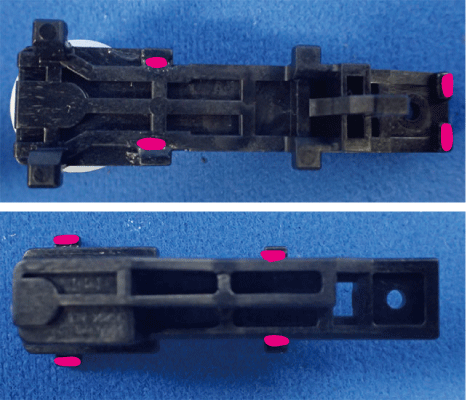

| Corresponding Part | CR Driven Pulley Holder |
|---|---|
| Lubricants (Part Code) | G-71 (1304682) |
| Amount | ⌀1 mm x 1 mm (8 points) |
| Lubrication Tool | ⌀1 mm syringe |
| Lubrication Manner | Apply with a syringe to the eight points in the figure. |
| Precautions | --- |
