Temperature and humidity sensor check
Required Tool
---
Procedure

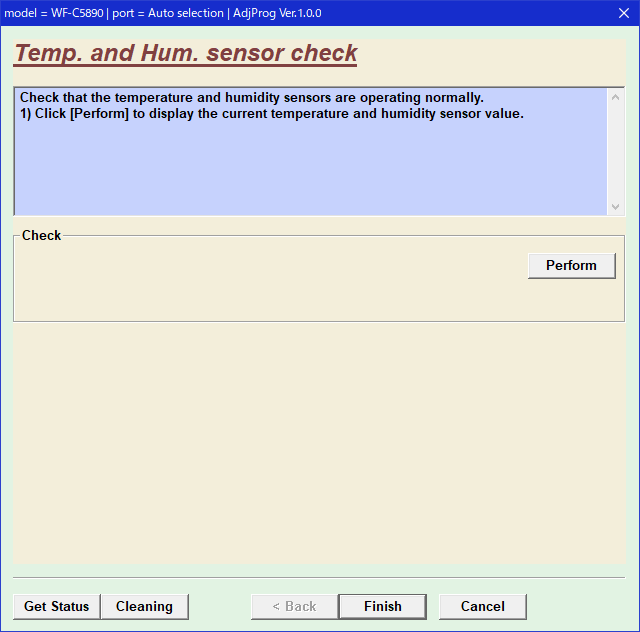

- Start the Adjustment Program, and select “Temp. and Hum. sensor check”.
- Press the Perform button to display the current temperature and humidity sensor value.
