Paper Cassette 1st Assy
 Adjustment / 調整 |
When replacing/removing this part, refer to the following pages and make sure to perform the specified operations including the required adjustments. |

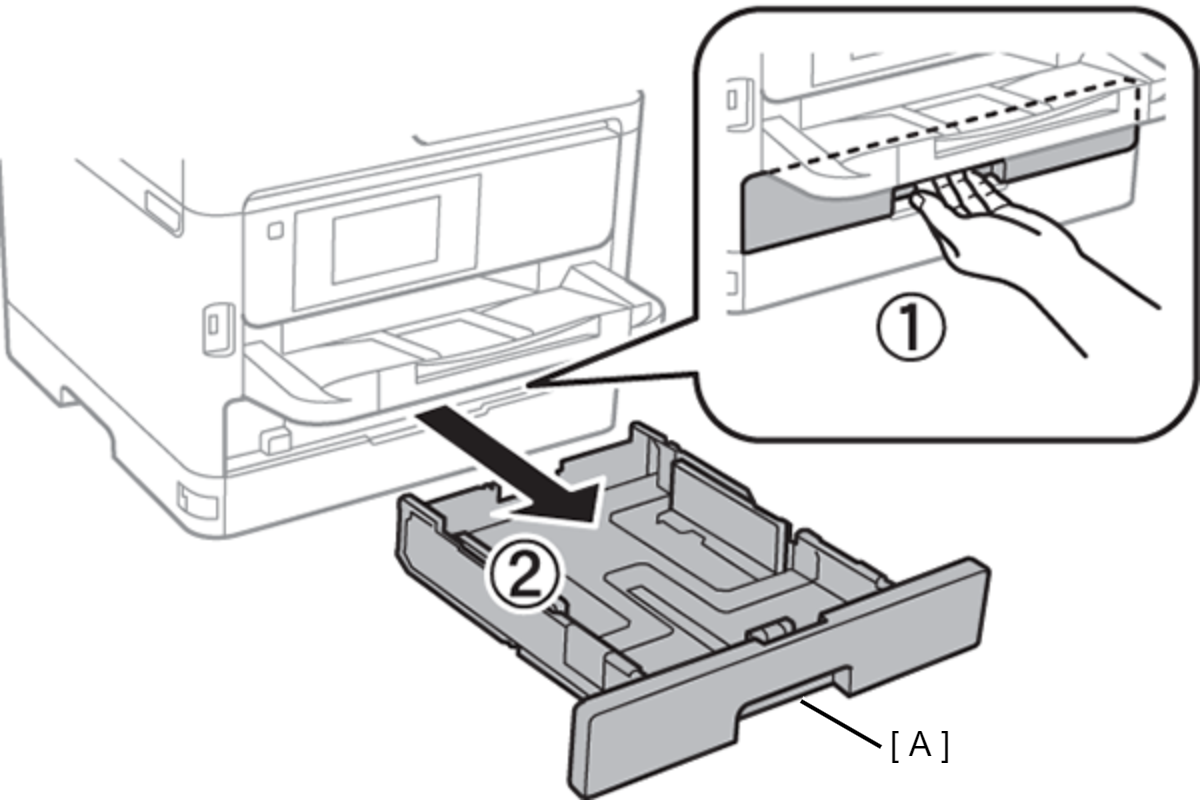

- Pull out the Paper Cassette 1st Assy (A).
