Removing the Ink Packs

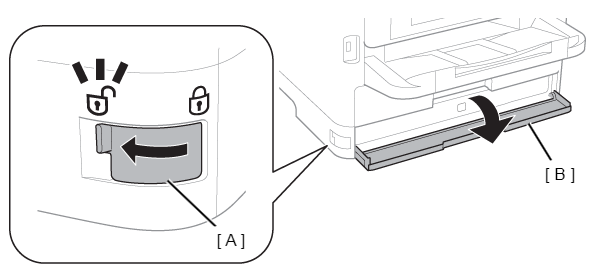

Slide the Cover Lock (A) in the direction of the arrow, then open the Ink Cover (B).
- Push the Ink Pack Tray (A), then remove it.

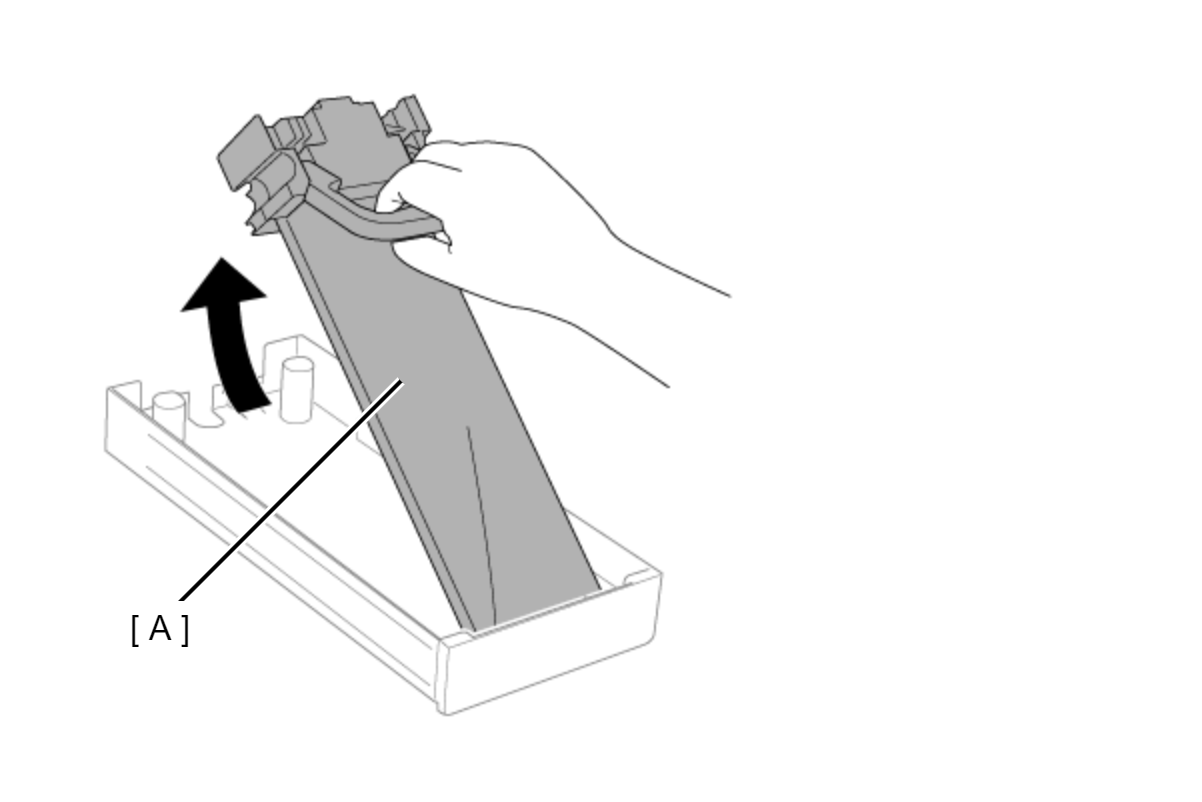

- Remove the Ink Pack (A).
