PF/EJ adjustment

Required Tool
  • Photo matte paper (A4)

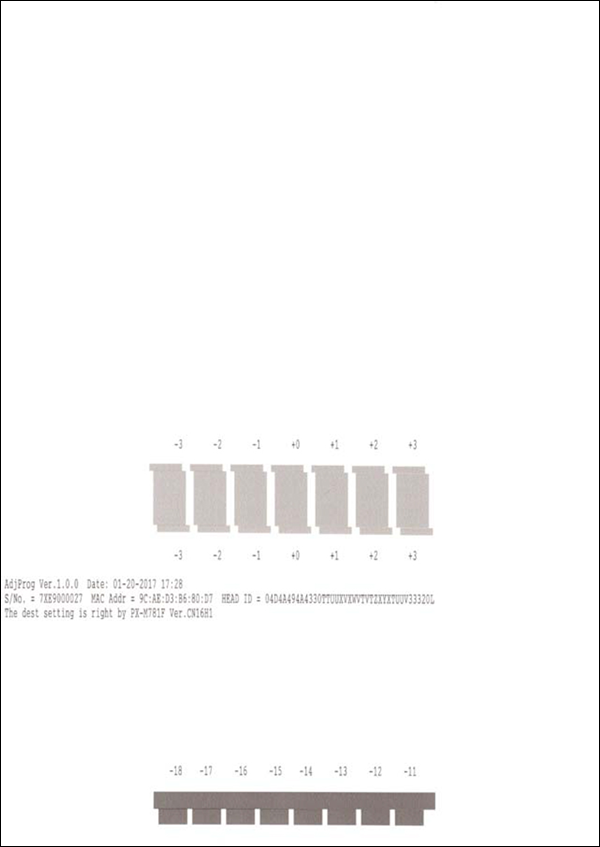

Adjustment pattern

Judgment

Select the numerical value of the pattern that has no overlapping of the upper and lower blocks and the least white bands.

Procedure

  1. Start the Adjustment Program, and select “PF/EJ adjustment”.

  2. Load paper into the Paper Tray.

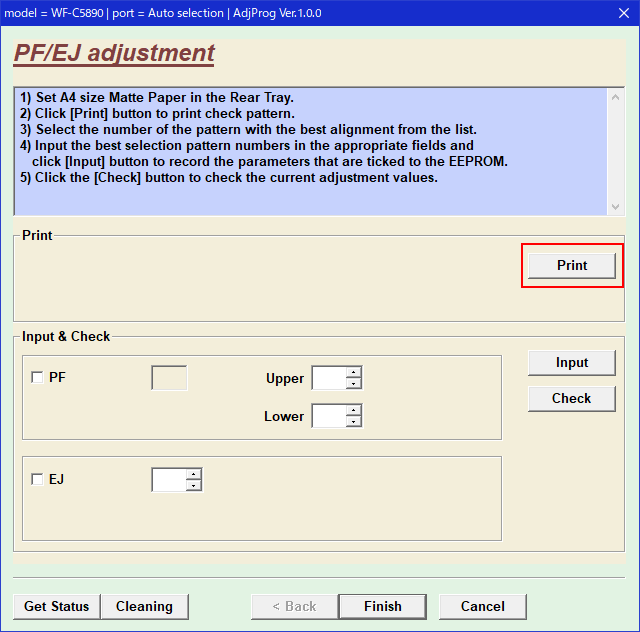

  3. Press the Print button to print the adjustment pattern.

  4. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

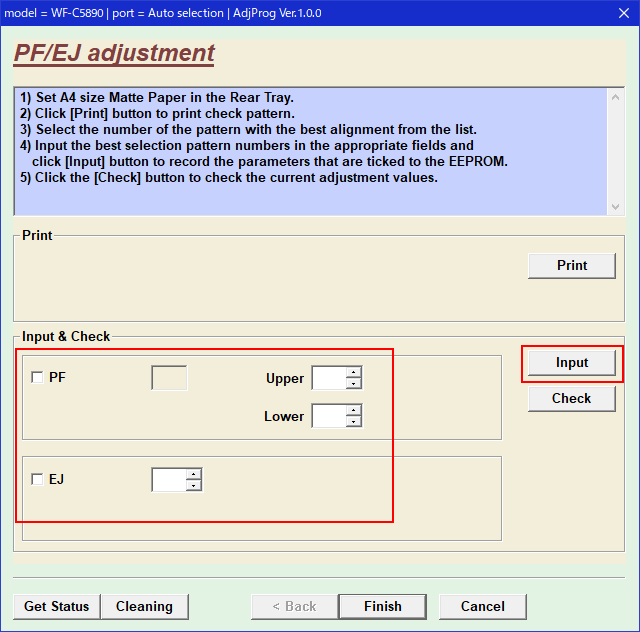

  5. Enter the adjustment value.

  6. Check that an adjustment value is entered, press the Input button, and save the adjustment value in the printer.

Check Point / チェックポイント

If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value, following which again print the adjustment pattern and determine the adjustment value.
