Document Mat

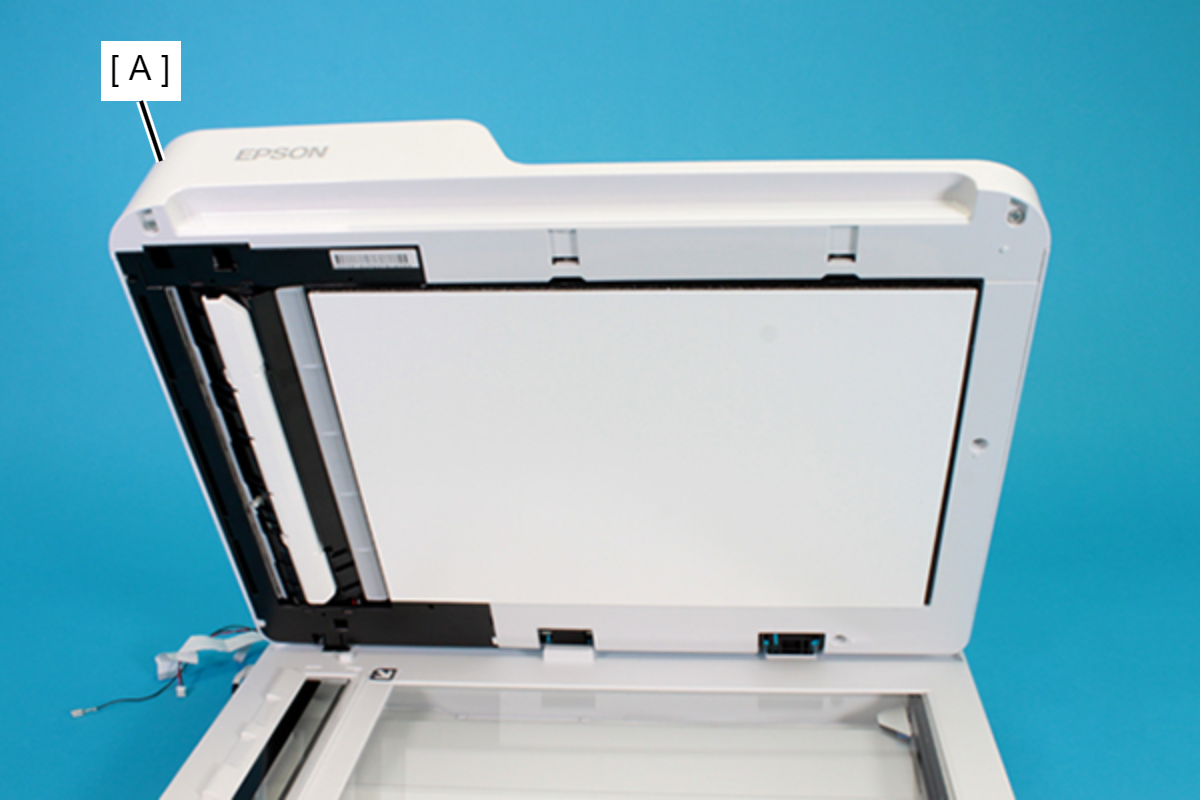

  1. Open the ADF Unit (A).

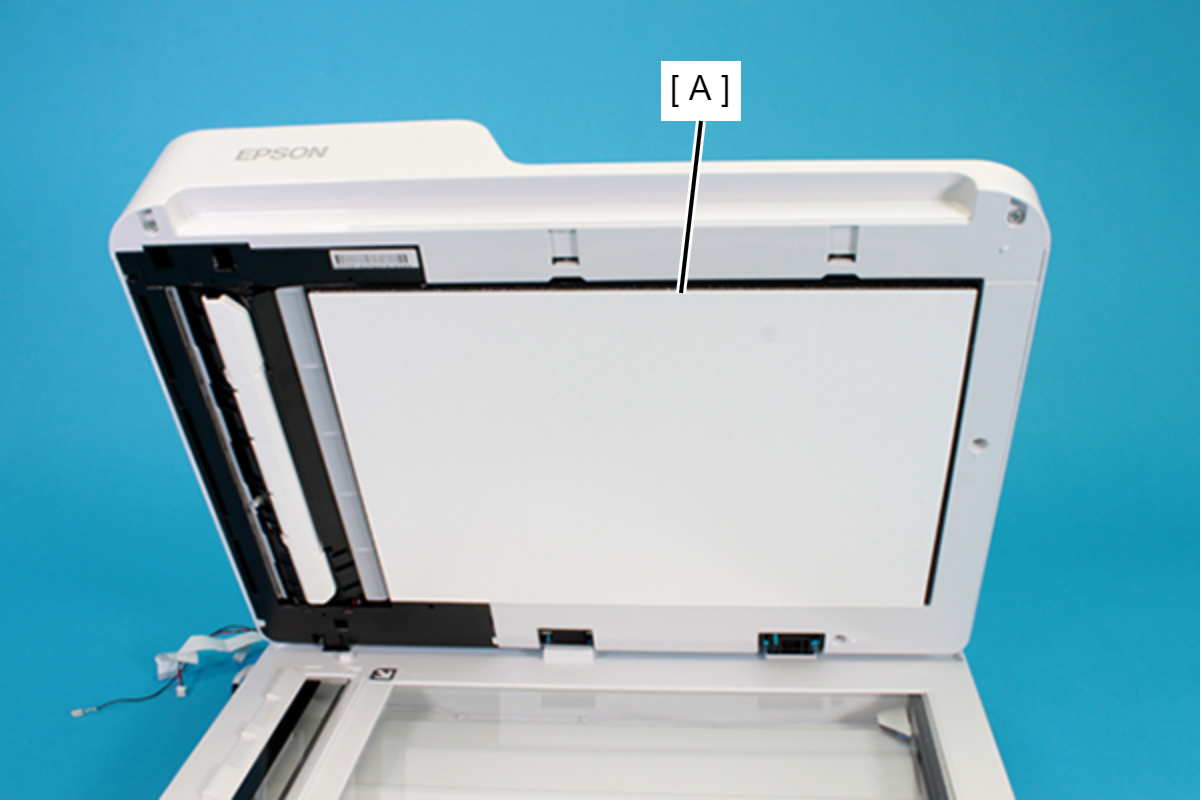

  2. Remove the Document Mat (A).

    Caution / 注意

    The Document Mat cannot be reused once it is removed. Make sure to replace it with a new one.
    Assembly / 組み立て

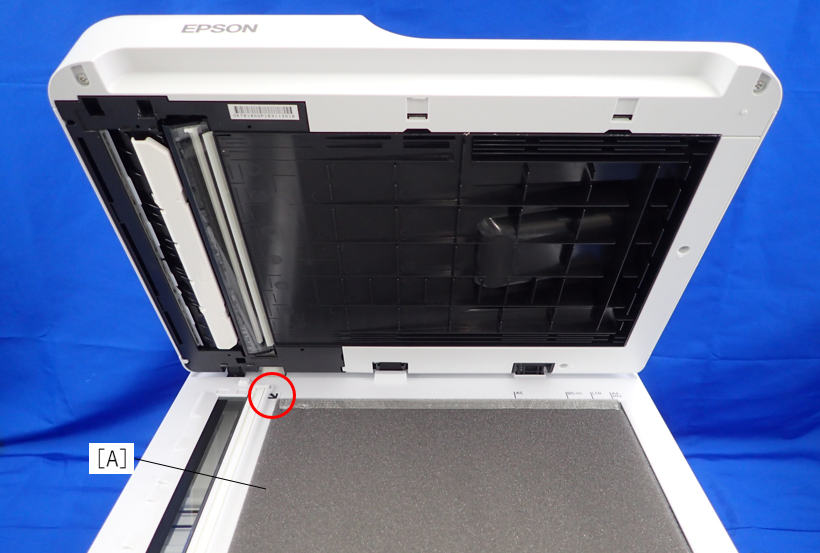

    After setting the Document Mat (A) in the position shown in the figure (marked with an arrow), the Document Mat can be attached to the correct position by closing the ADF Unit.
