Paper feed related

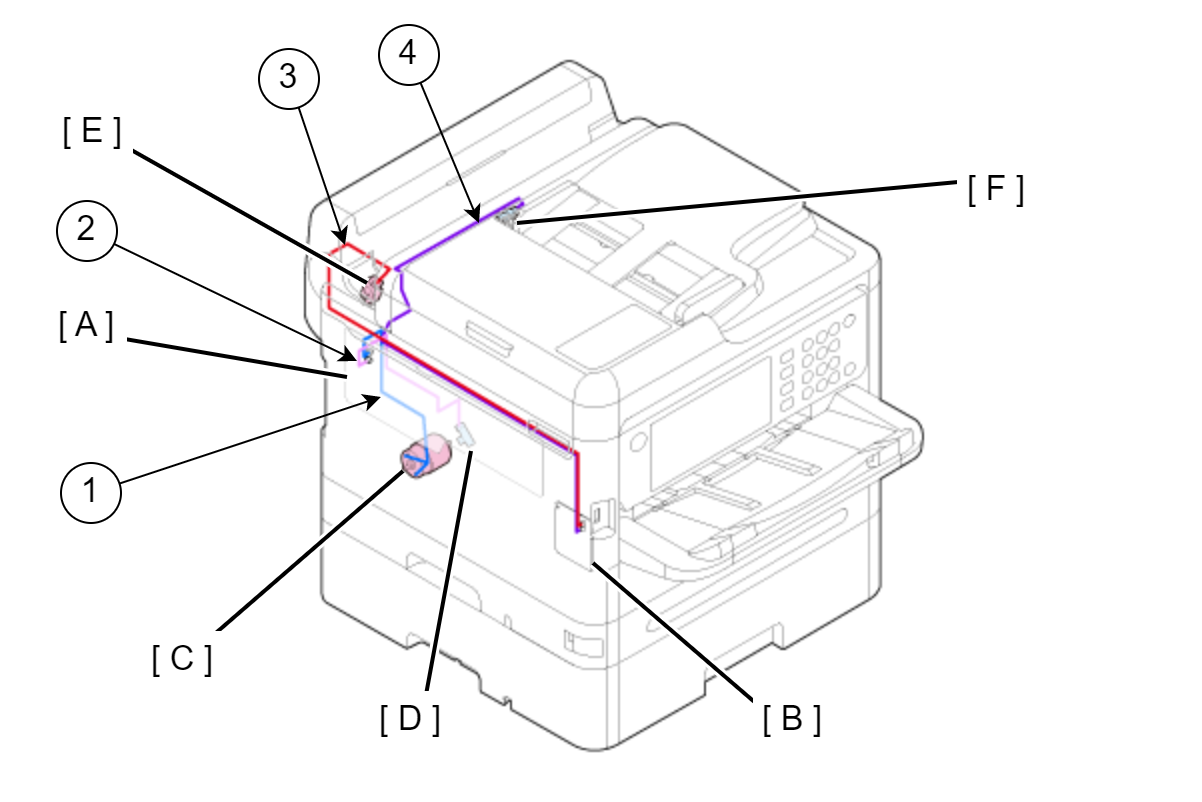

| Cable No. | Connector | |
|---|---|---|
| 1 | Main Board (A) (CN80) | ASF Motor (C) |
| 2* | Main Board (A) (CN55) | ASF Encoder (D) |
| 3 | Relay Board (B) (CN56) | Rear ASF Solenoid (E) |
| 4 | Relay Board (B) (CN51) | Rear ASF Paper Detection Sensor (F) |
*: FFC

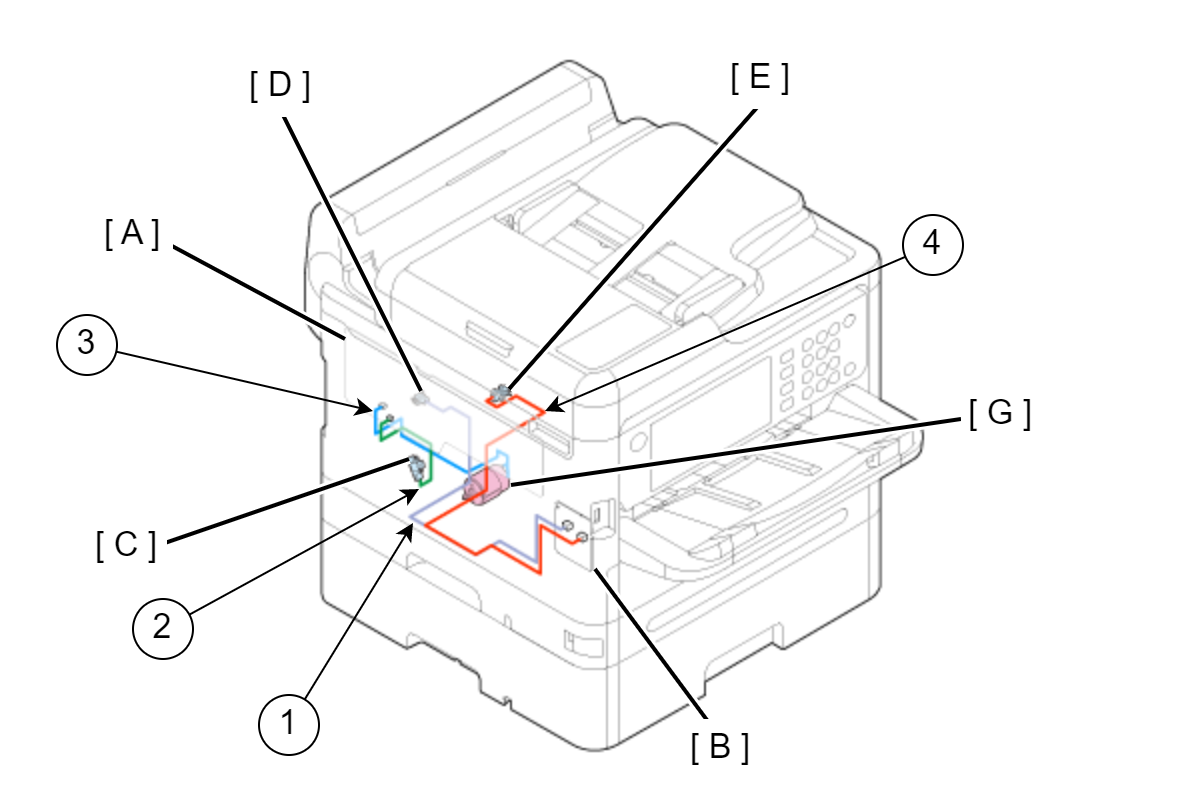

| Cable No. | Connector | |
|---|---|---|
| 1 | Relay Board (B) (CN53) | Cassette Detection Sensor (D) |
| 2* | Main Board (A) (CN52) | PF Encoder (C) |
| 3 | Main Board (A) (CN73) | PF Motor (G) |
| 4 | Relay Board (B) (CN52) | Cassette Paper Detection Sensor (E) |
*: FFC

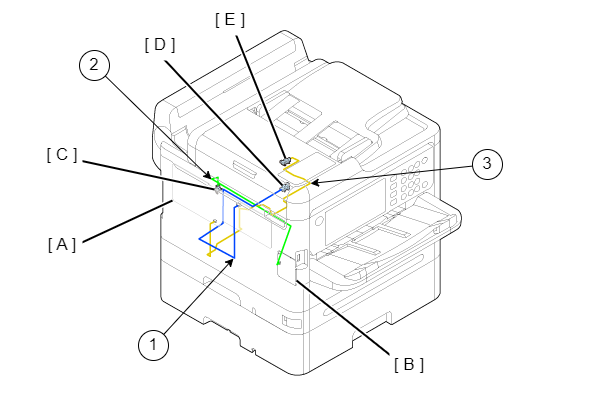

| Cable No. | Connector | |
|---|---|---|
| 1 | Main Board (A) (CN53) | PE Sensor (D) |
| 2 | Relay Board (B) (CN20) | Rear Unit Detection Sensor (C) |
| 3 | Main Board (A) (CN2) | Feed Sensor (E) |
