Fax Assy

  1. Remove the four screws and then remove the Rear Housing Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Assembly / 組み立て

    Attach the two dowels of the Rear Housing Assy (A) to the positioning holes on the Housing Left (B) and the Housing Right (C).
  2. Open the ADF/SCN Unit and remove the screw securing the Housing Left (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  3. Remove the two screws securing the Housing Left (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

  4. Lift the Housing Left (A) upward to release the two hooks each on the front side and rear side of the Housing Left (A), and then remove the Housing Left (A).

    Assembly / 組み立て

    Insert the eight tabs on the Housing Left (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).

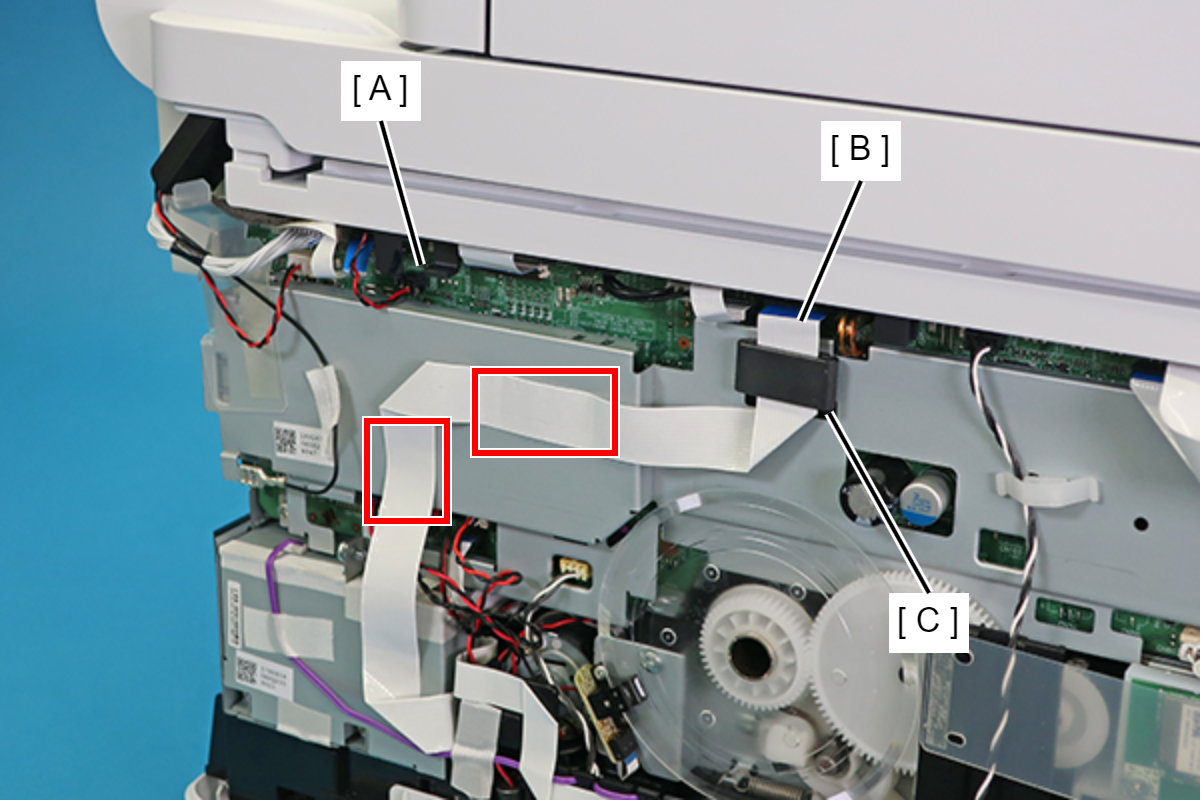

  5. Disconnect the FAX FFC (B) from the connector (CN43) on the Main Board (A), and remove the ferrite core and two pieces of double-sided tape from the FFC.

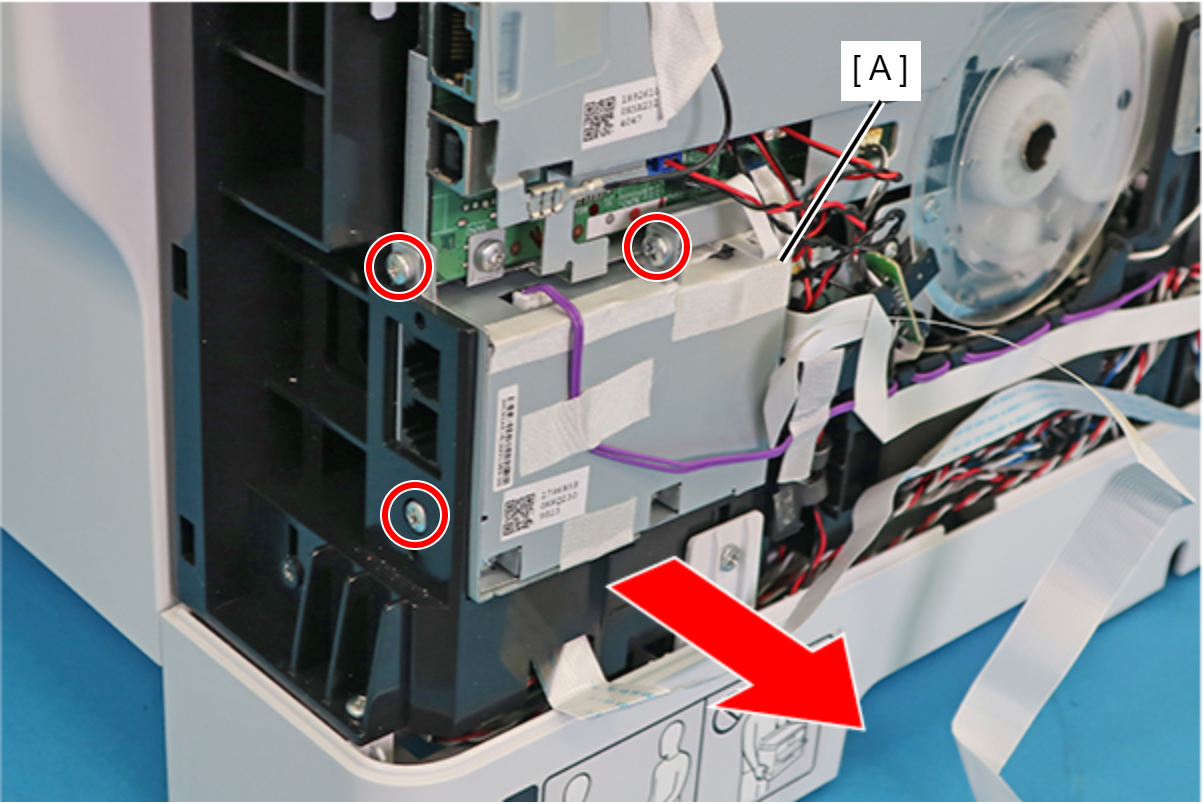

  6. Remove the screw, and then remove the Fax Assy (A) in the direction of the arrow.
    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C

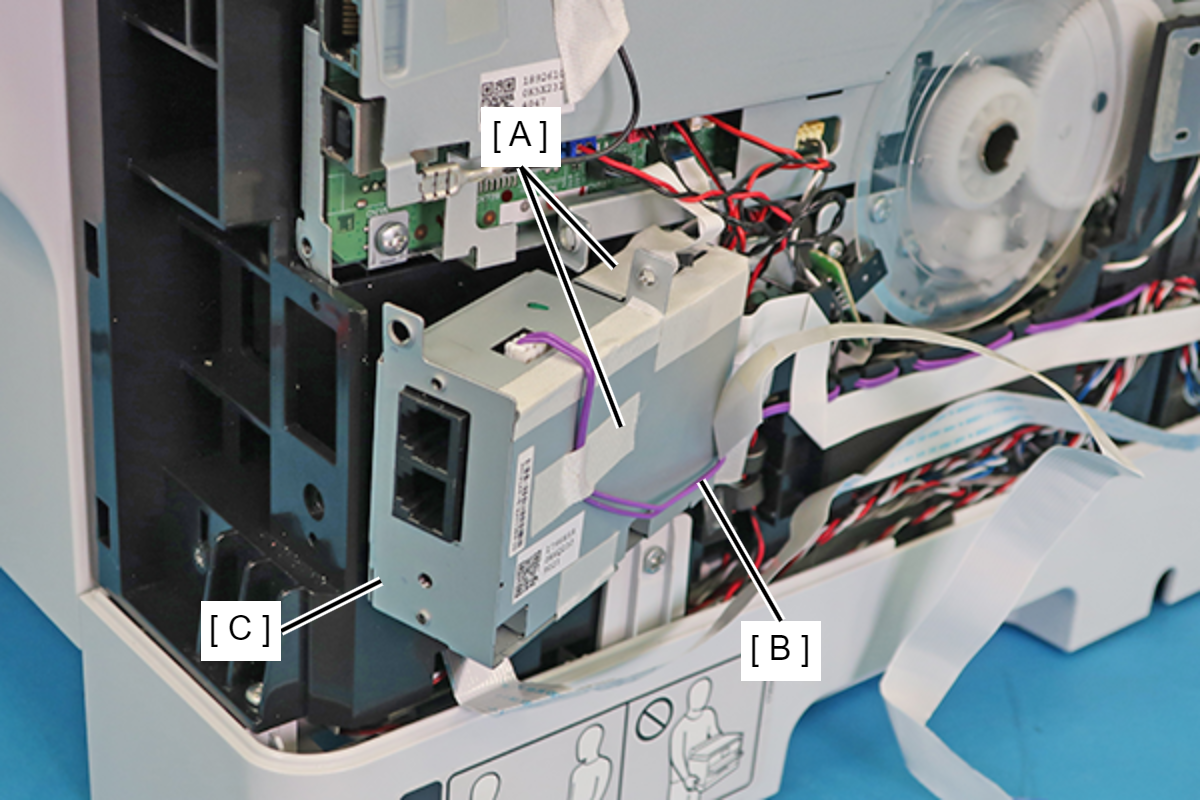

  7. Remove the two pieces of acetate tape (A) and disconnect the Outlinger cable (B) from the Fax Assy (C).

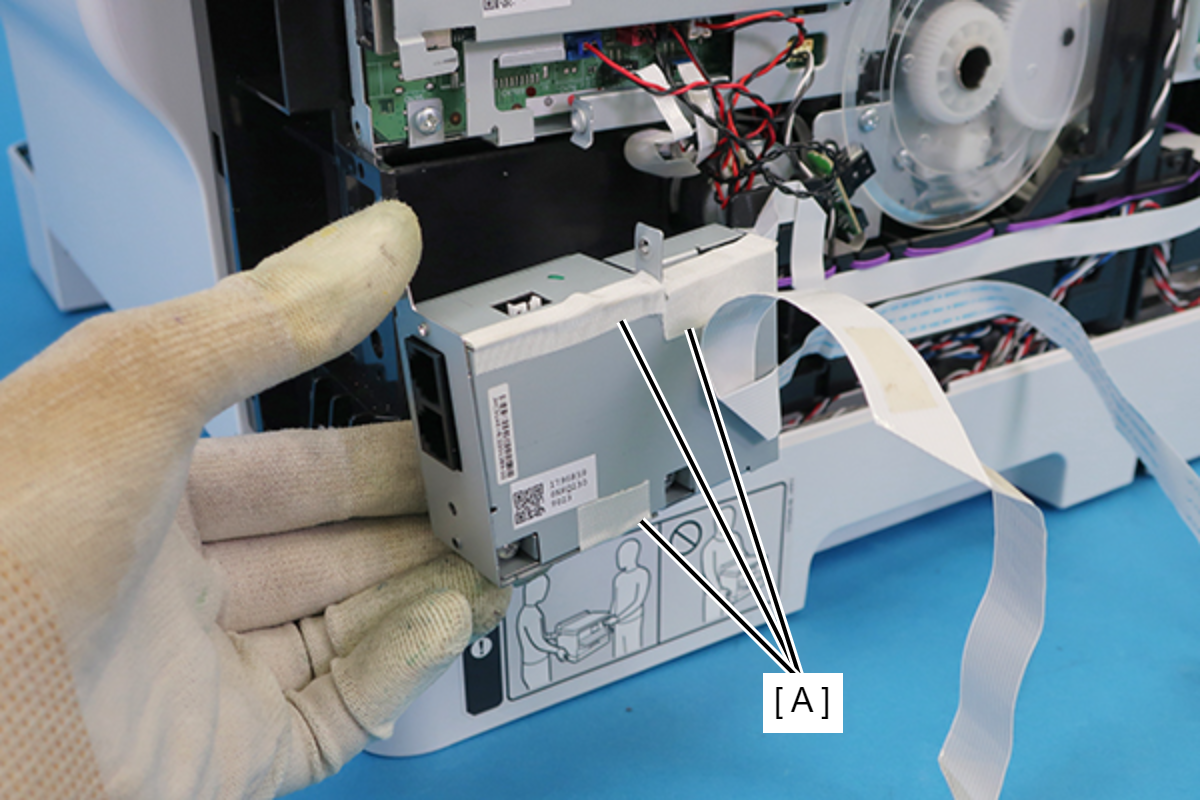

  8. Peel off the three pieces of acetate tape.

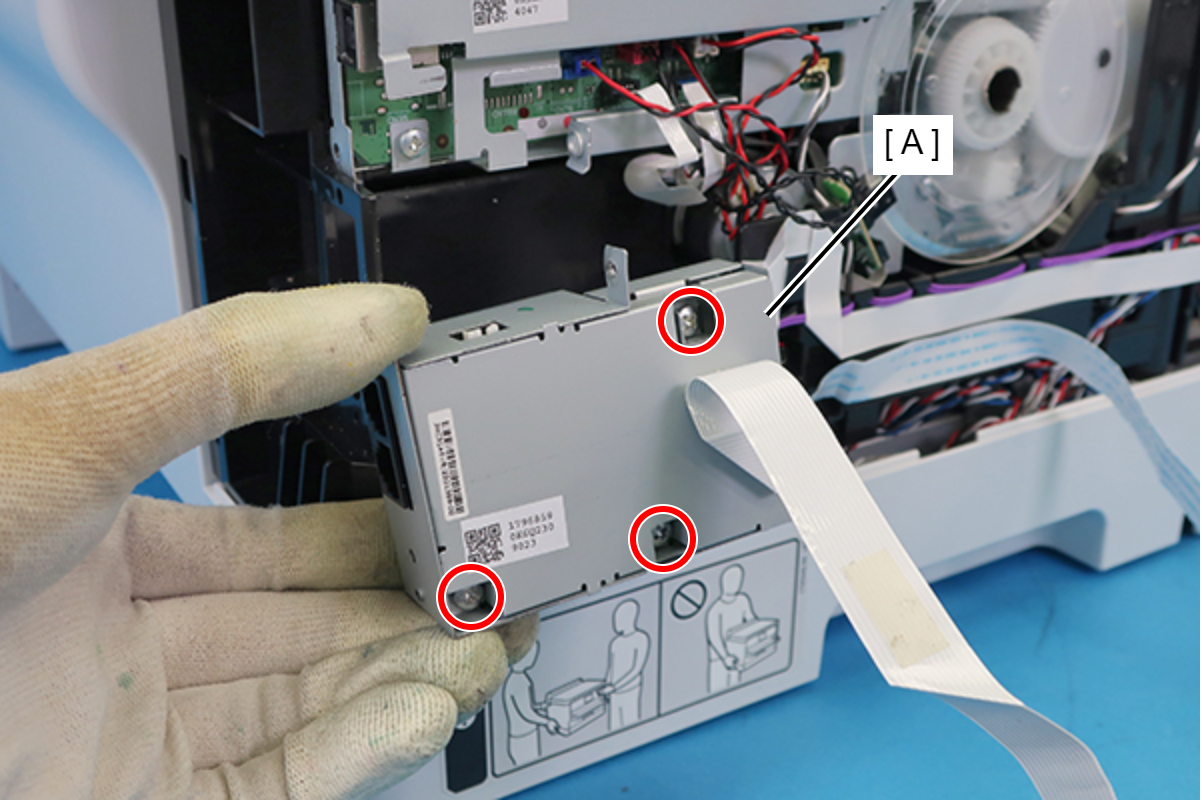

  9. Remove the three screws and then remove the Shield Plate (A).

    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C

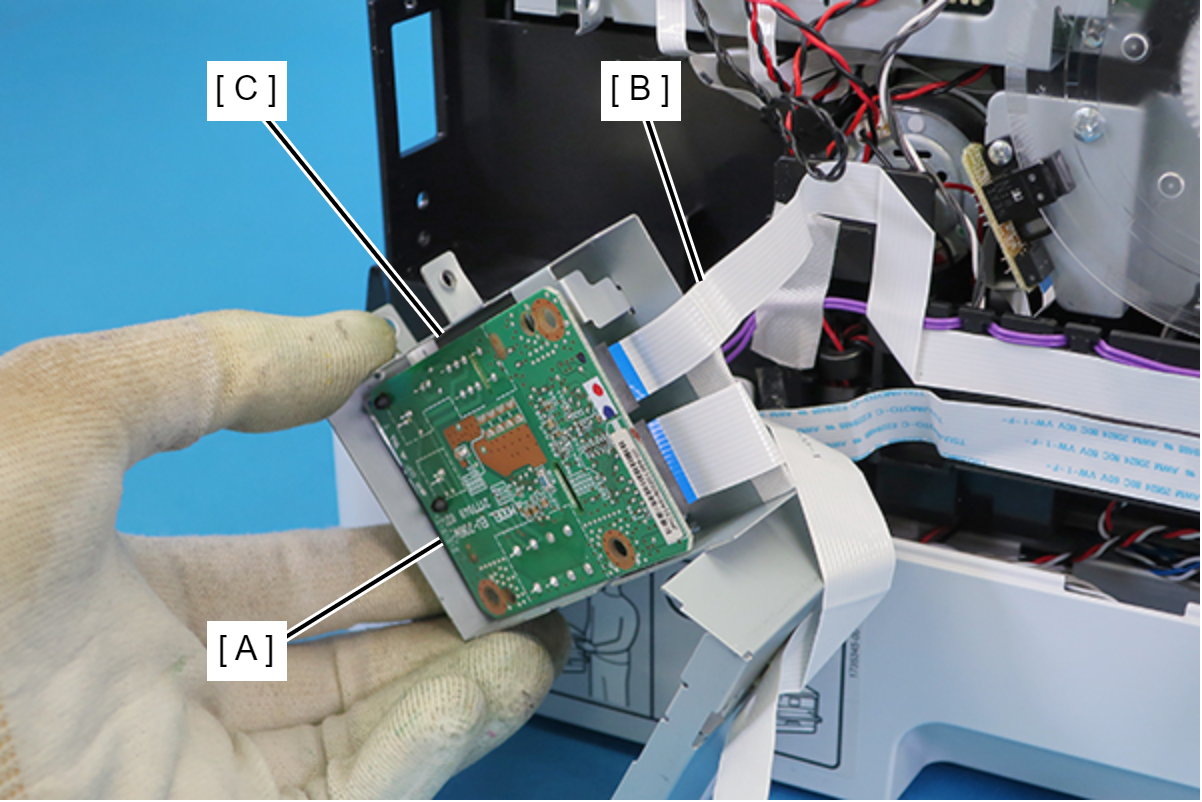

  10. Remove the Fax Assy (A) by disconnecting the FFC (B) from the connector (CN4) of the Fax Assy (A).
