ADF Document Support

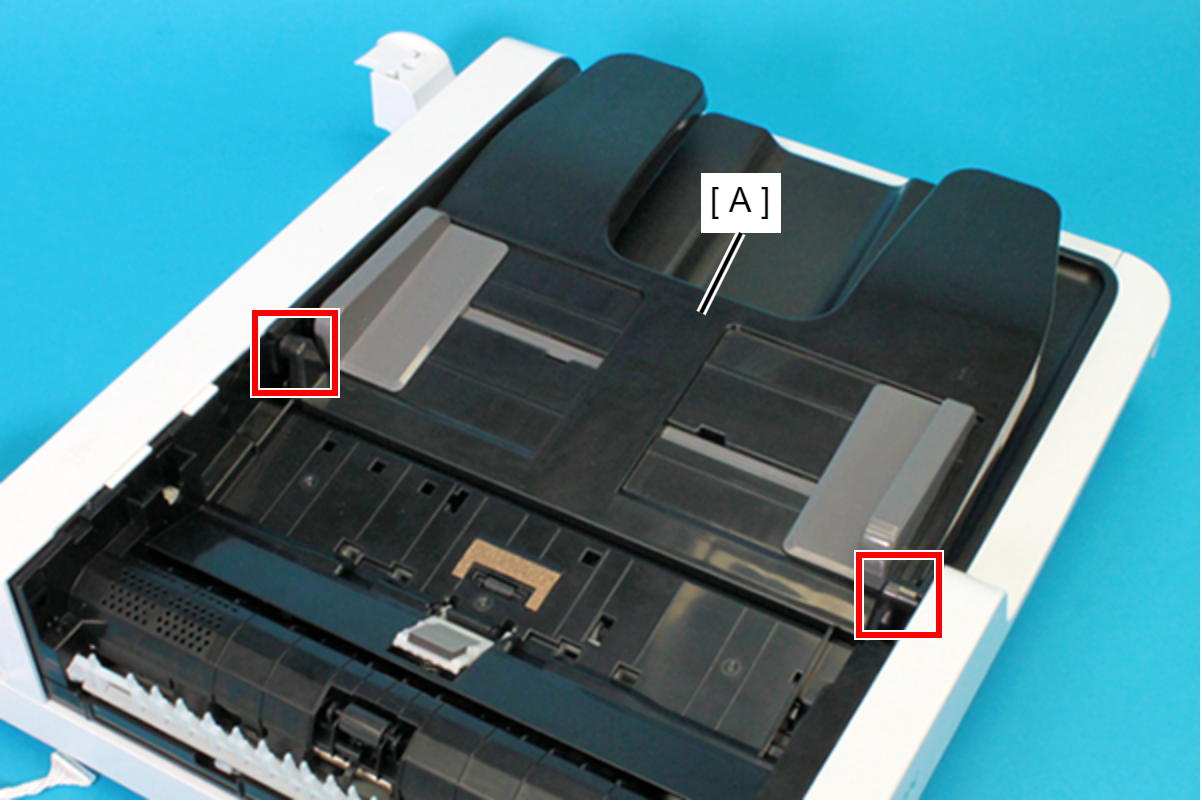

- Disengage the two dowels of the ADF Document Support (A) while bending it, then remove the ADF Document Support (A).
