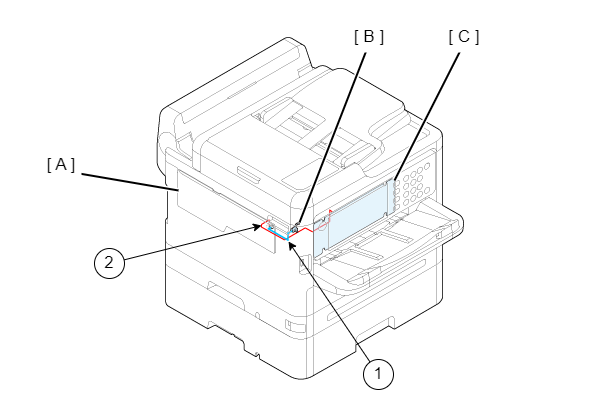

Housing related
| Cable No. | Connector | |
|---|---|---|
| 1 | Main Board (A) (CN609) | Cover Open Sensor (B) |
| 2 | Main Board (A) (CN42) | Panel Board (C) (CN101) |
