Lubrication 4
| Corresponding Part | Main Frame/CR Guide Frame |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | A: 0.7g (2 line x 300 mm) B: 0.3g (1 line x 300 mm) |
| Lubrication Tool | ⌀1 mm syringe |

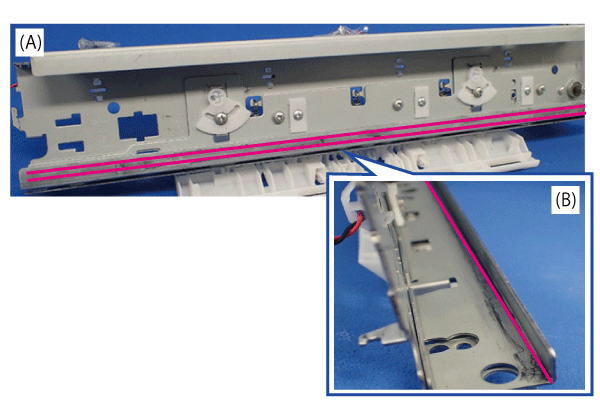

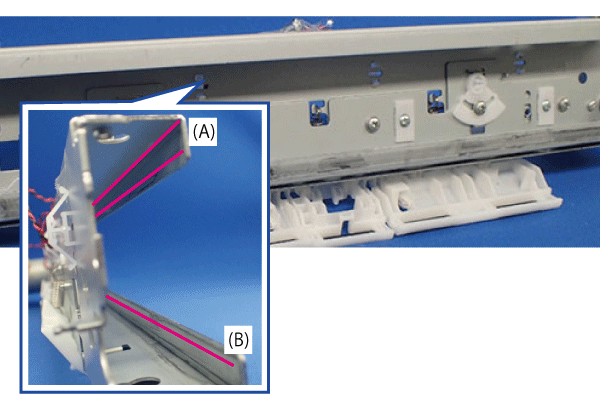

| Lubrication Manner | Apply with a syringe as shown in the figure. After application, spread by moving CR Unit to the right and to the left (from home side to full side) three times slowly. |
| Precautions | If clumps of grease are seen on both sides of the frame, remove them. |
