Ink supply related

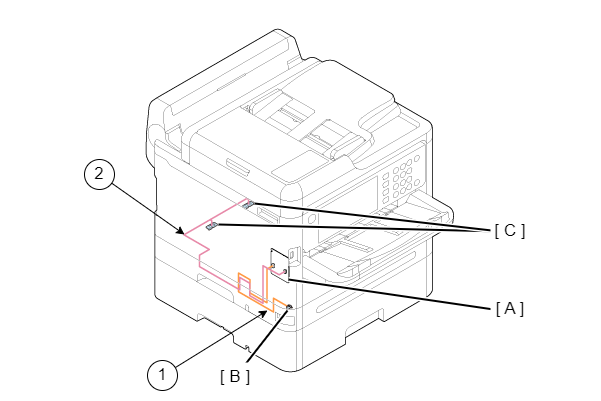

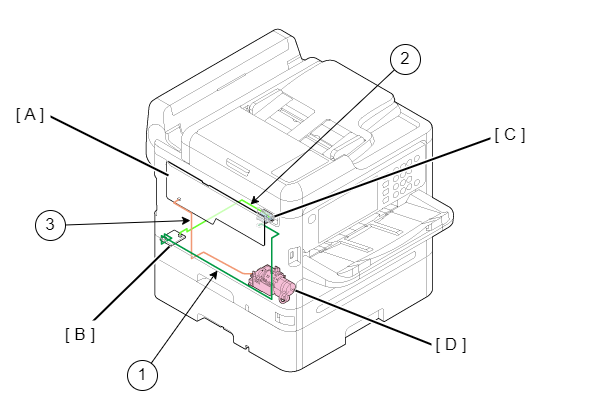

| Cable No. | Connector | |
|---|---|---|
| 1 | Relay Board (A) (CN22) | Front Cover Open Sensor (B) |
| 2 | Relay Board (A) (CN30) | Ink End Sensor (Bk) (C) |
| Cable No. | Connector | |
|---|---|---|
| 1* | Main Board (A) (CN8) | CSIC Board (B) (CN1) |
| 2* | CSIC Board (B) (CN3) | Ink Pack Sensor (Bk) (C) |
| 3 | Main Board (A) (CN601) | Decompression Motor (G) |
*: FFC

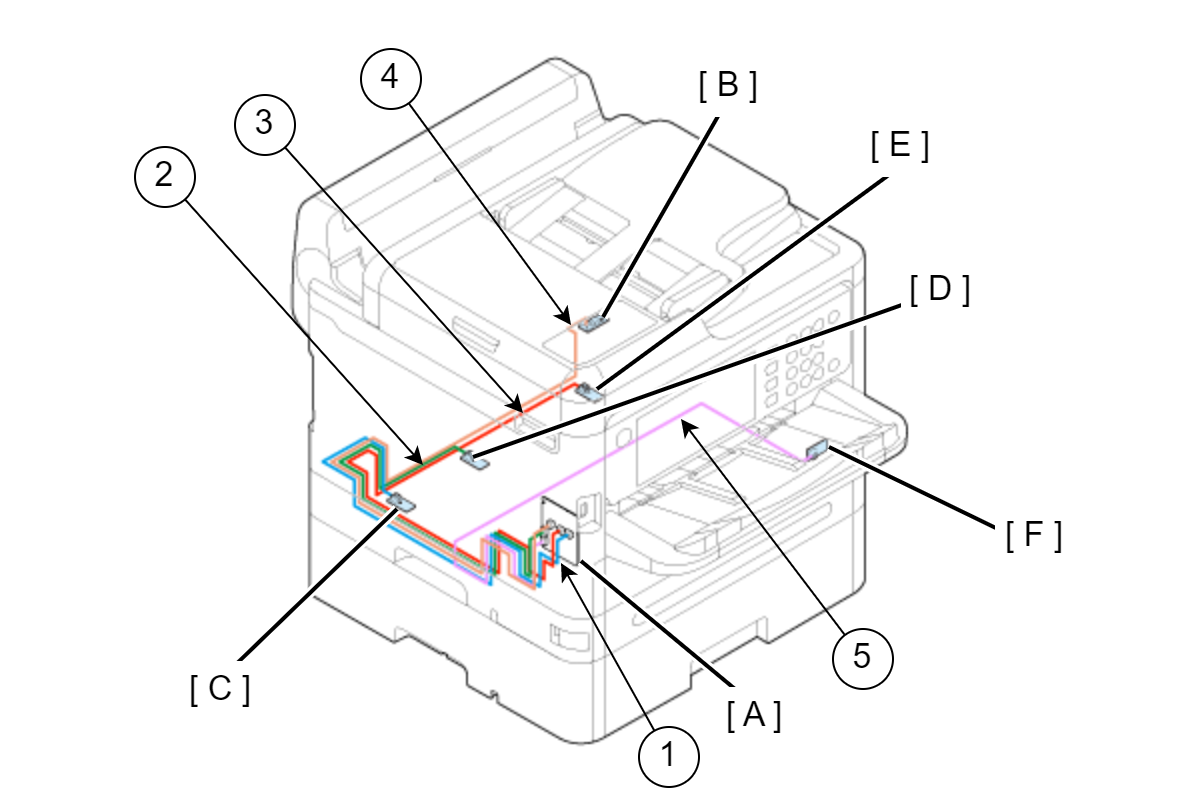

| Cable No. | Connector | |
|---|---|---|
| 1 | Relay Board (A) (CN54) | Ink Leak Sensor (C) |
| 2 | Relay Board (A) (CN11) | Ink Leak Sensor (D) |
| 3 | Relay Board (A) (CN55) | Ink Leak Sensor (E) |
| 4 | Relay Board (A) (CN10) | Temperature and Humidity Sensor (B) |
| 5 | Relay Board (A) (CN12) | Ink Leak Sensor (F) |
