Carriage related

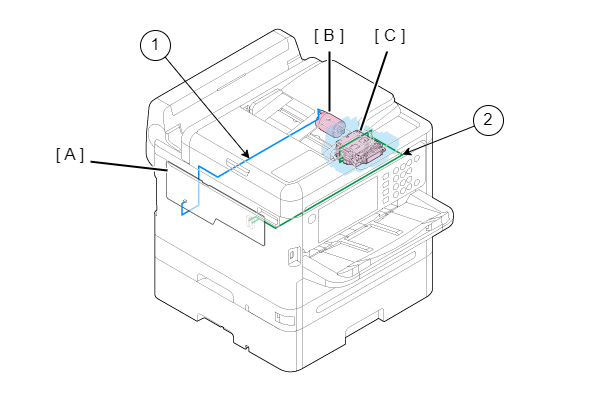

| Cable No. | Connector | |
|---|---|---|
| 1 | Main Board (A) (CN72) | CR Motor (B) |
| 2* | Main Board (A) (CN66, CN67) | Printhead (C) |
*: FFC

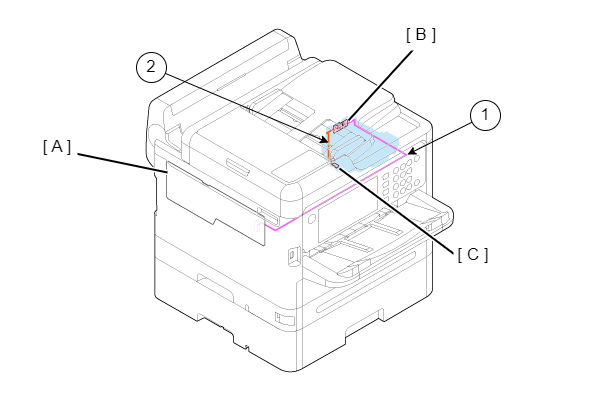

| Cable No. | Connector | |
|---|---|---|
| 1* | Main Board (A) (CN68) | CR Encoder (B) (CN1) |
| 2* | CR Encoder (B) (CN2) | PW Sensor (C) |
*: FFC
