Paper skew adjustment

Required Tool
  • Plain Paper (A4)

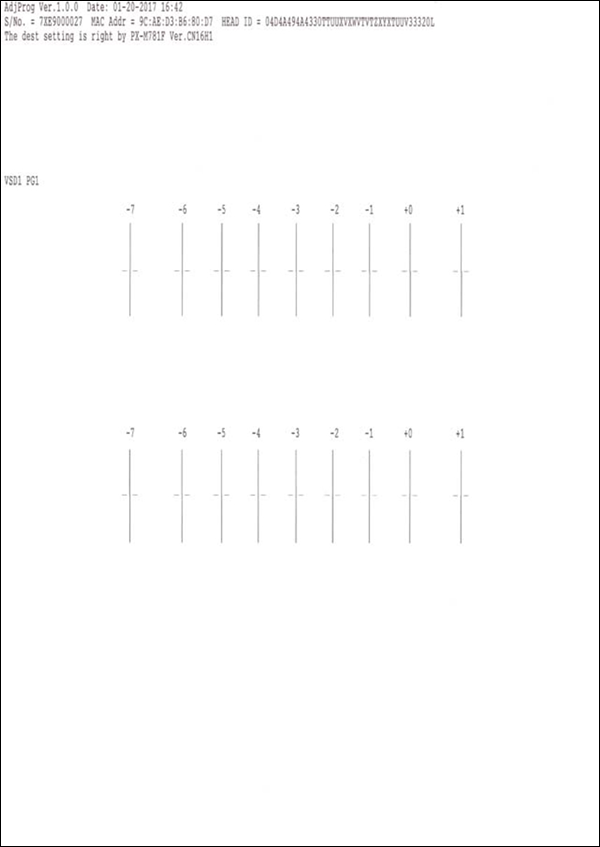

Adjustment pattern

Judgment

From among the printed patterns, select the pattern where the above and below lines are the straightest.

Procedure

  1. Start the Adjustment Program, and select “Paper skew adjustment”.

  2. Load paper into the Paper Cassette (C1).

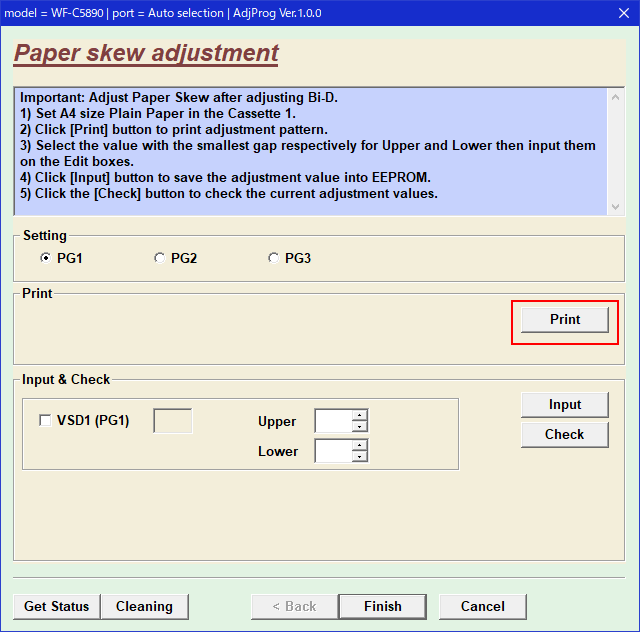

  3. Press the Print button to print the adjustment pattern.

  4. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

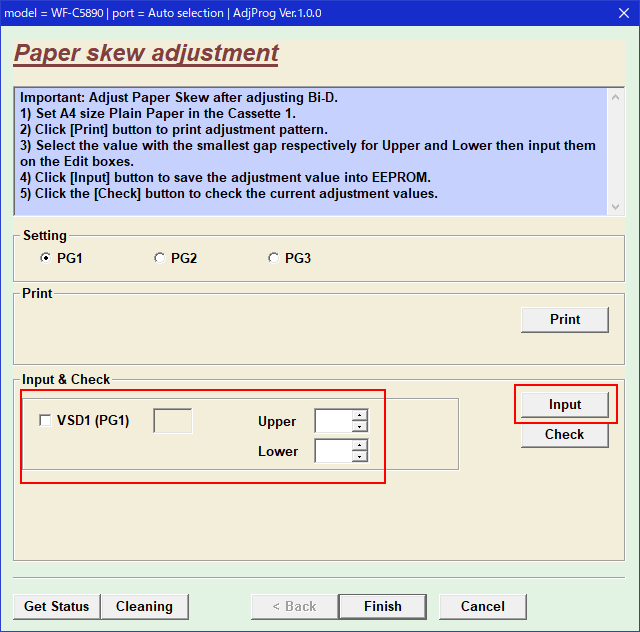

  5. Enter the adjustment value.

  6. Check that an adjustment value is entered, press the Input button, and save the adjustment value in the printer.

Check Point / チェックポイント

If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value, following which again print the adjustment pattern and determine the adjustment value.
