Fax Function Check Report
Self check of Fax function is available.
Perform Fax Function Check to check the basic items of fax function and line connection.
Print Procedure
| Manual | [Setup] > [System Administration] > [Fax Settings] > [Fax Function Check]= perform the check, then select [Print] to print the result. |
|---|
Remote check is also available using FAX Utility.

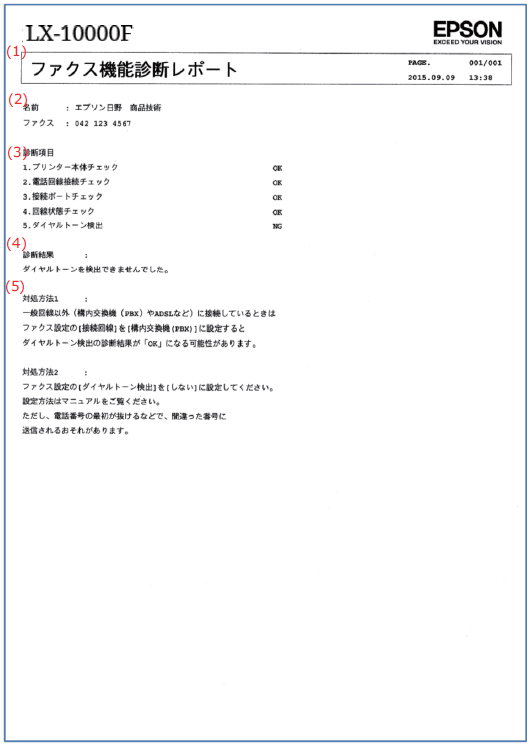

Output Sample
This sample is an example of a different model and may differ from the actual one.
| (1) | Title etc. | Same as Fax log. |
|---|---|---|
| (2) | Name, Fax | Same as Fax log. |
| (3) | Check Items | For the description of check item, see “Fax Function Check Operation flow”. “5. Dial Tone Detection” is also checked even when it is disabled in Fax Settings. |
| (4) | Check Result | Displays the check result. |
| (5) | Remedy | Displays the remedy. |
