APG offset adjustment
Required Tool
---
Procedure
Start the Adjustment Program, and select “APG offset adjustment”.

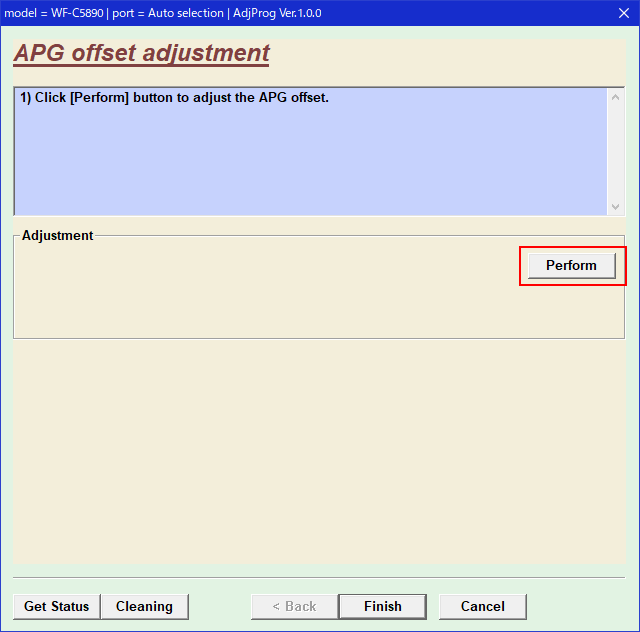

Press the Perform button to execute the “APG offset adjustment”.
