Initialize PW sensor deterioration counter
Required Tool
---
Procedure

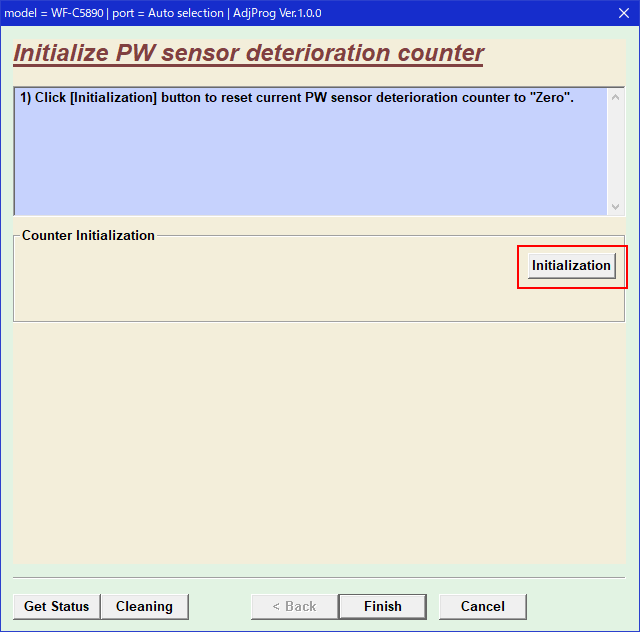

- Start the Adjustment Program, and select “Initialize PW sensor deterioration counter”.
- Press the Initialization button, and initialize the concerned counter.
