Panel Assy

Adjustment / 調整

When replacing/removing this part, refer to the following pages and make sure to perform the specified operations including the required adjustments.

  1. Remove the four screws and then remove the Rear Housing Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Assembly / 組み立て

    Attach the two dowels of the Rear Housing Assy (A) to the positioning holes on the Housing Left (B) and the Housing Right (C).
  2. Disengage the hook, and remove the Maintenance Box Cover (A).
  3. Open the ADF/SCN Unit and remove the screw securing the Housing Right (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  4. Remove the three screws securing the Housing Right (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  5. Lift the Housing Right (A) upward to release the two hooks on the front side of the Housing Right (A).

  6. Remove the dowels to the rear, and lift up the Housing Right (A) to remove it.

    Assembly / 組み立て

    Insert the eight tabs on the Housing Right (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).
  7. Open the ADF/SCN Unit and remove the screw securing the Housing Left (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  8. Remove the two screws securing the Housing Left (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

  9. Lift the Housing Left (A) upward to release the two hooks each on the front side and rear side of the Housing Left (A), and then remove the Housing Left (A).

    Assembly / 組み立て

    Insert the eight tabs on the Housing Left (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).
  10. Remove the six screws securing the Housing Upper (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  11. Lift the Housing Upper (A) and remove the Housing Upper (A) toward you.

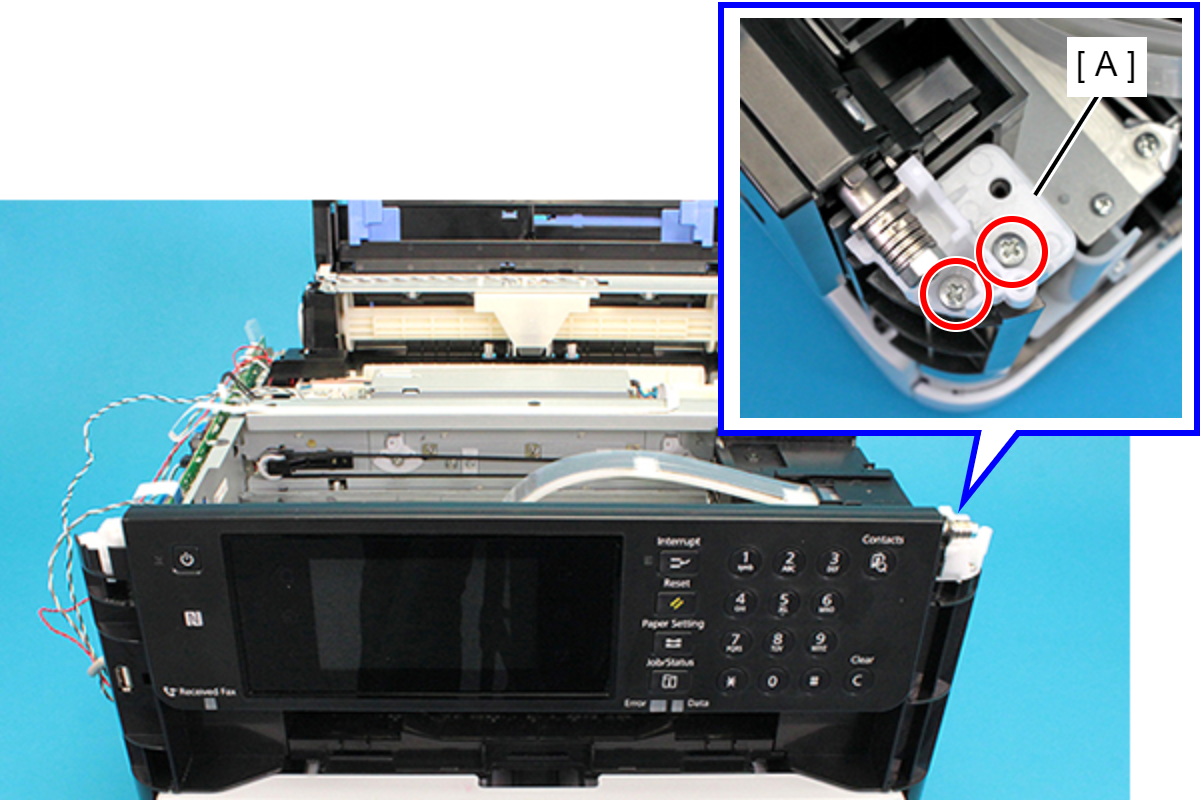

  12. Remove the two screws, then remove the Right Panel Holder (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Caution / 注意

    The FFC (B) is connected to the interior of the Panel Assy (A).

    Accordingly, when using the following procedure to remove the Panel Assy (A), ensure that it is not pulled excessively.

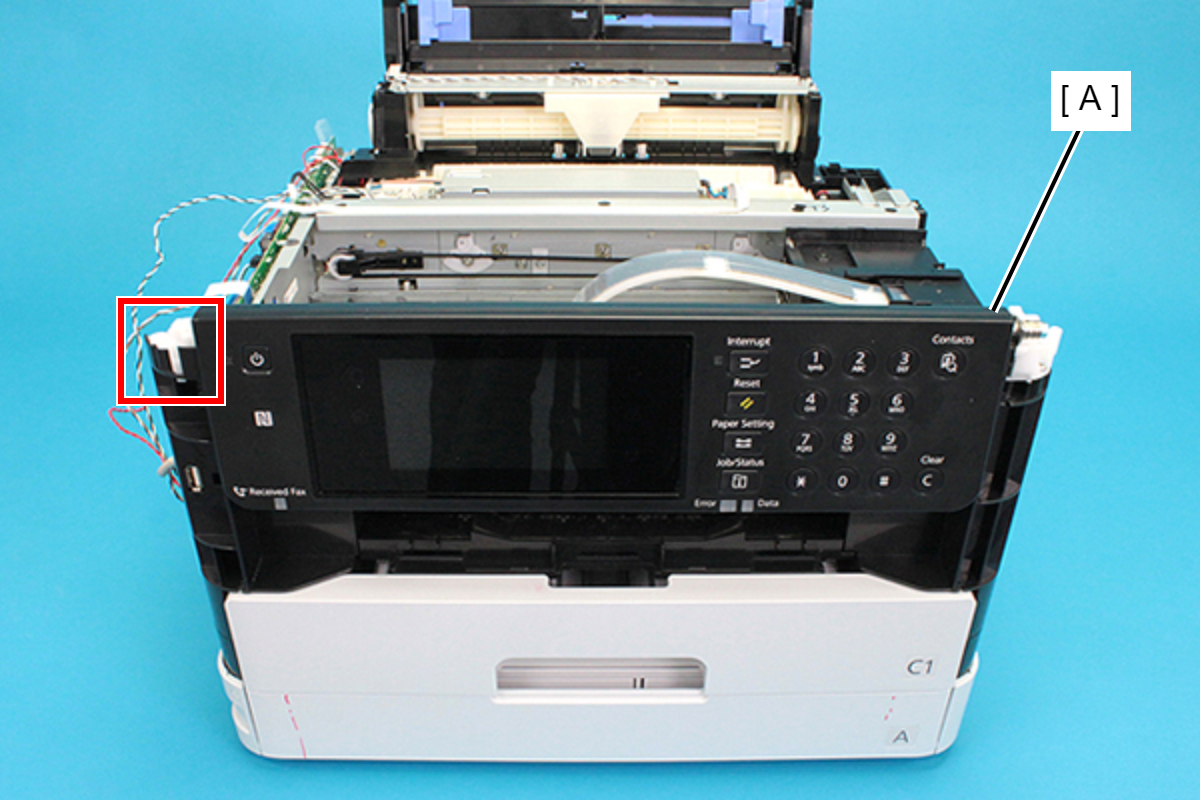

  13. Release the shaft of the Panel Assy (A) from the bearing, then remove the Panel Assy (A).

    Caution / 注意

    When using the following procedure to place the Panel Assy, take care not to scratch the front surface of the Panel Assy.

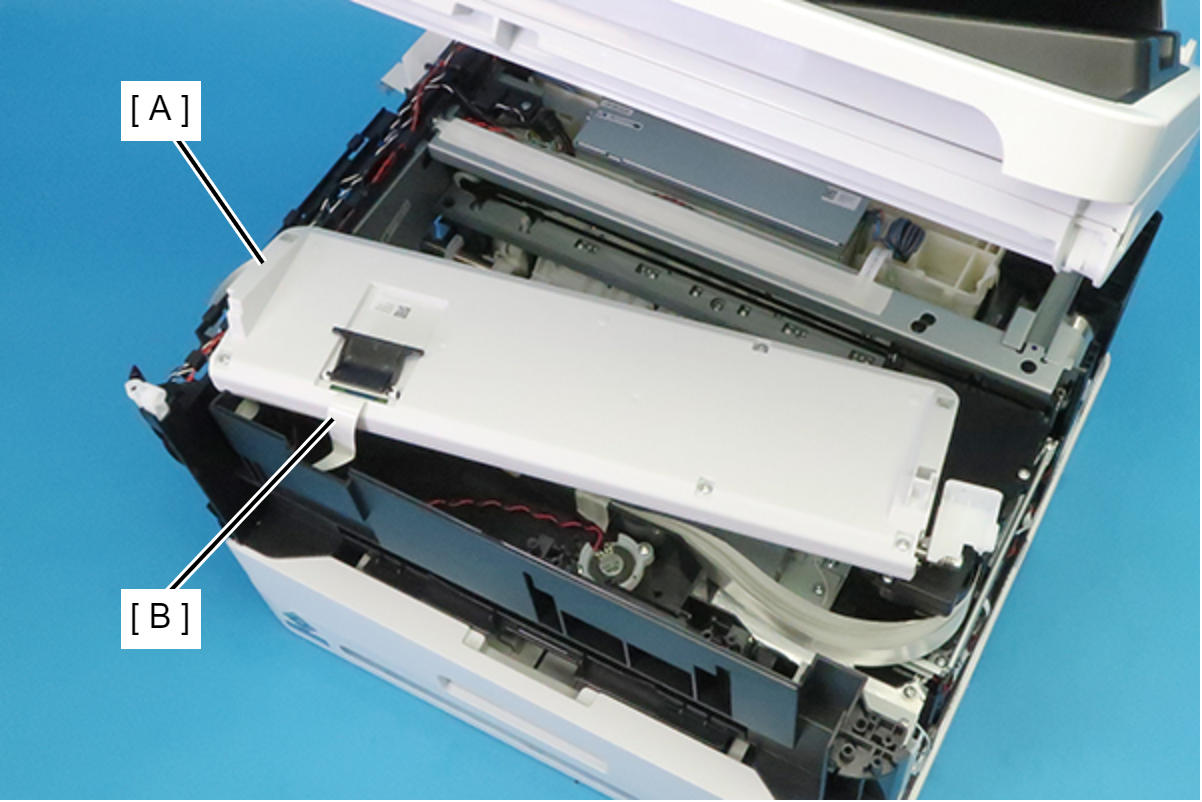

  14. Turn the Panel Assy (A) over and place it on top of the printer.

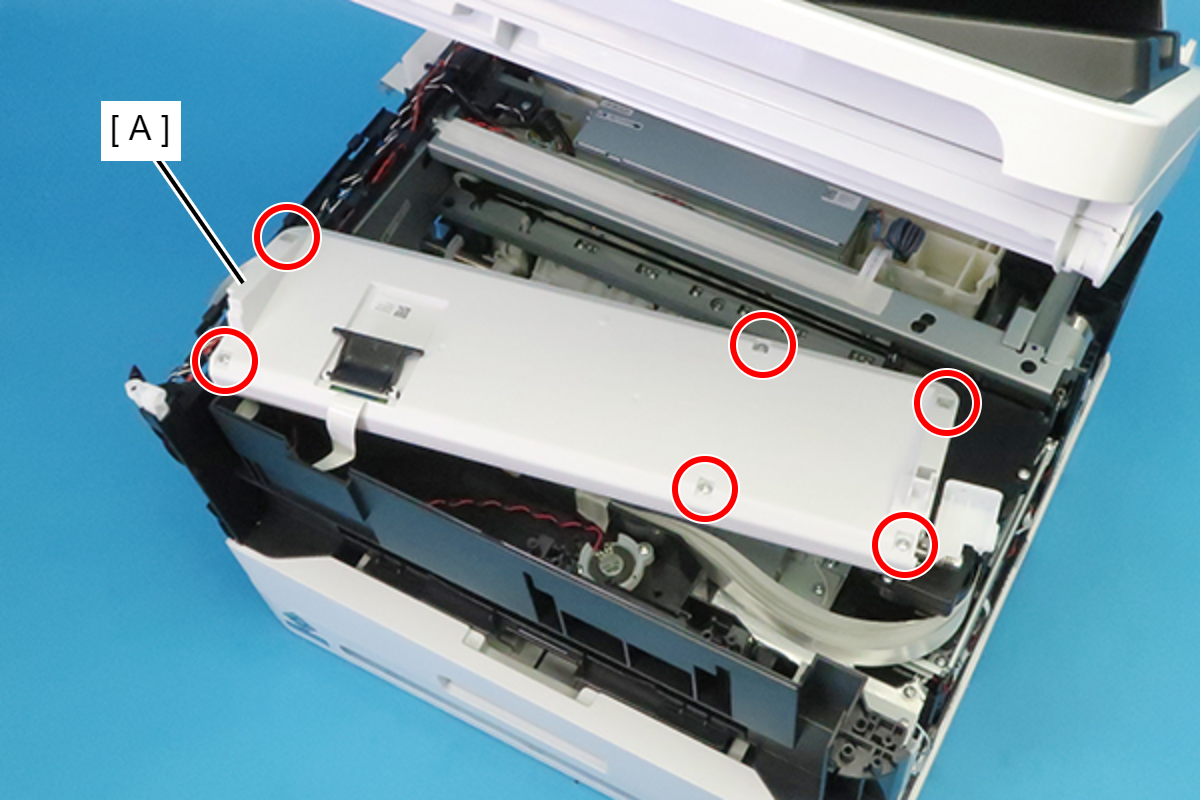

  15. Remove the six screws securing the Panel Housing (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

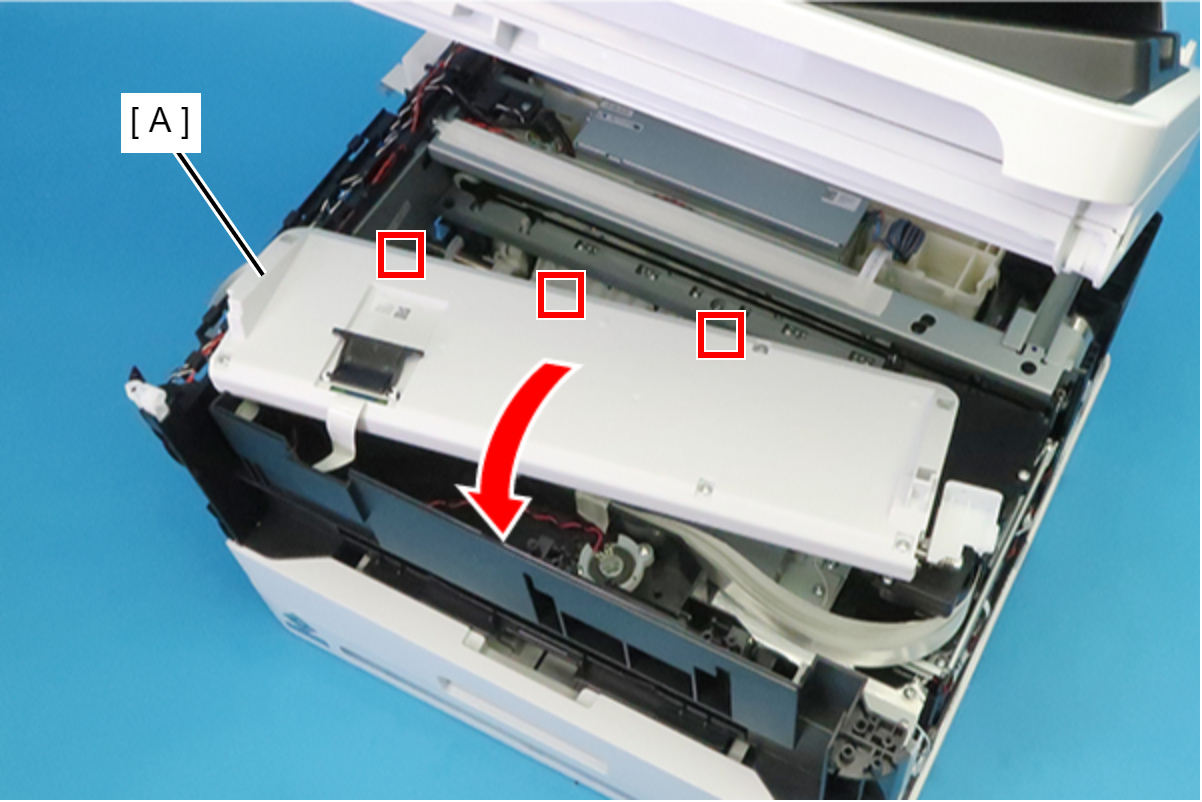

  16. Disengage the three hooks and open the Panel Housing (A) in the direction of the arrow.

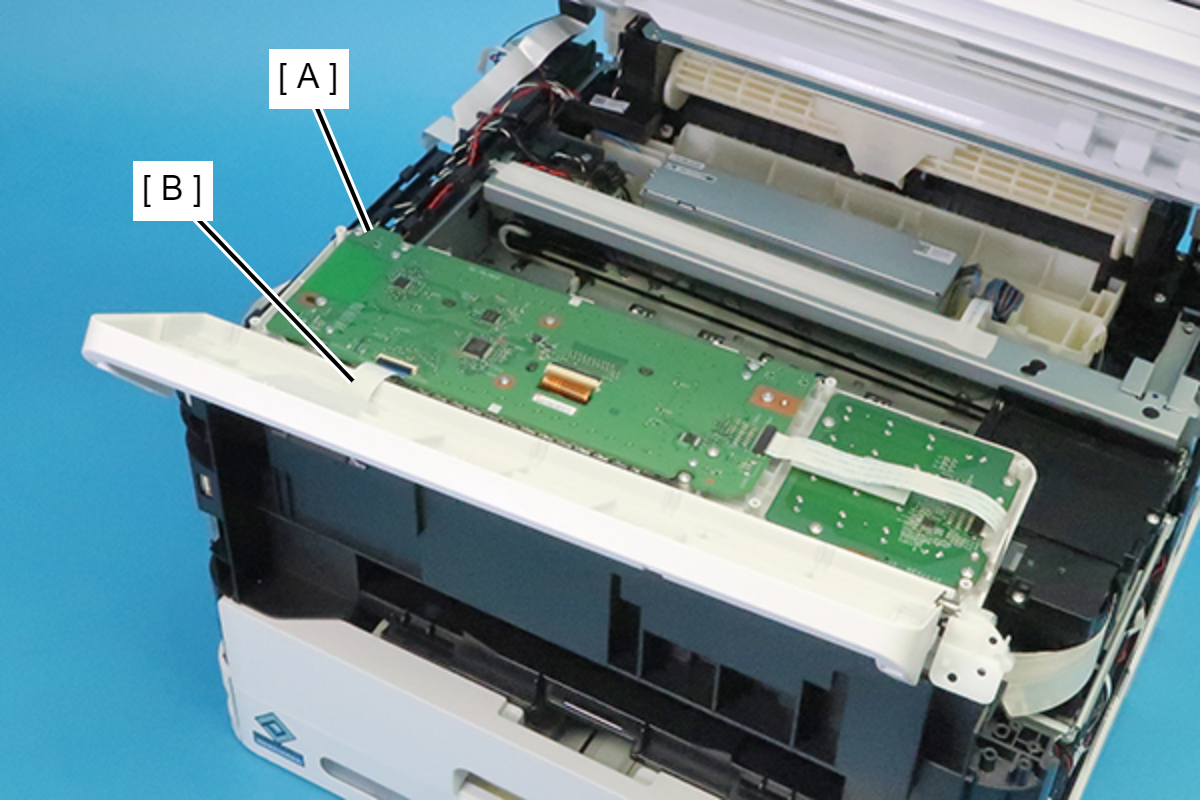

  17. Release the connector lock, and disconnect the FFC (B) from the connector (CN111) on the Panel Board (A).

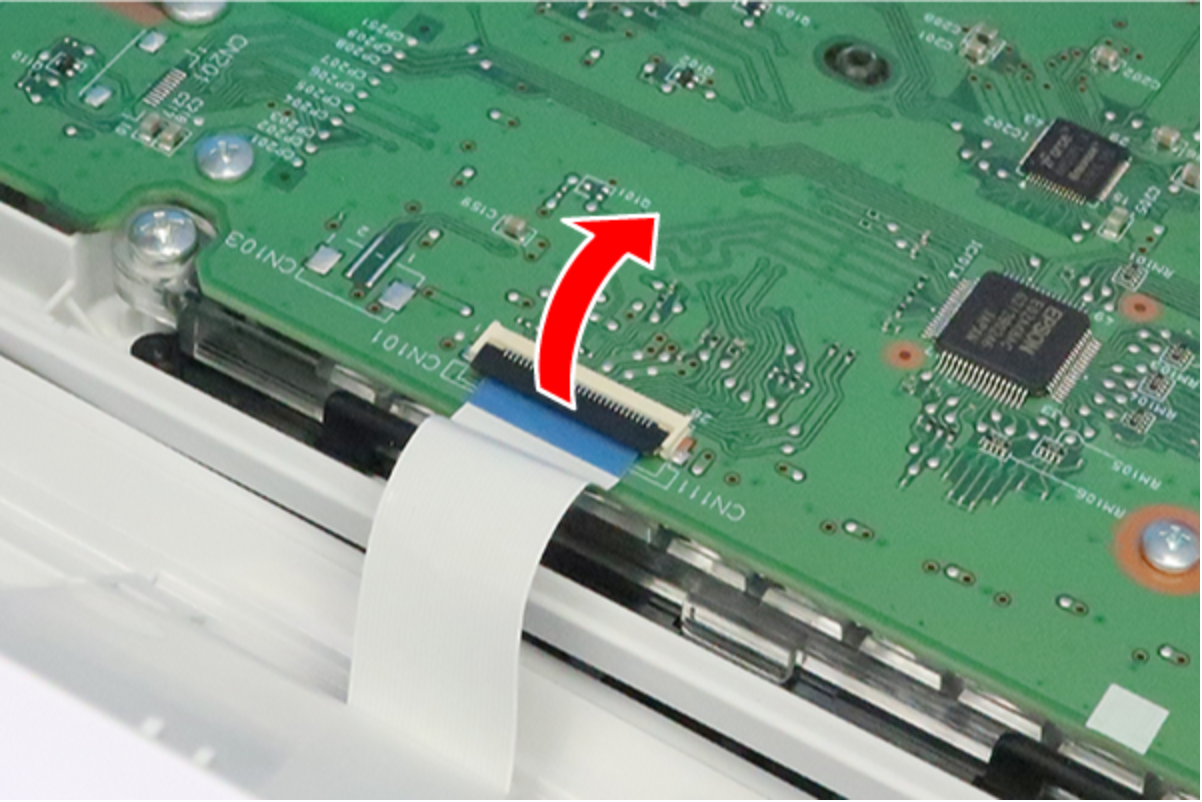

    Check Point / チェックポイント

    Release the connector (CN111) on the Panel Board by opening the connector lock in the direction of the arrow.

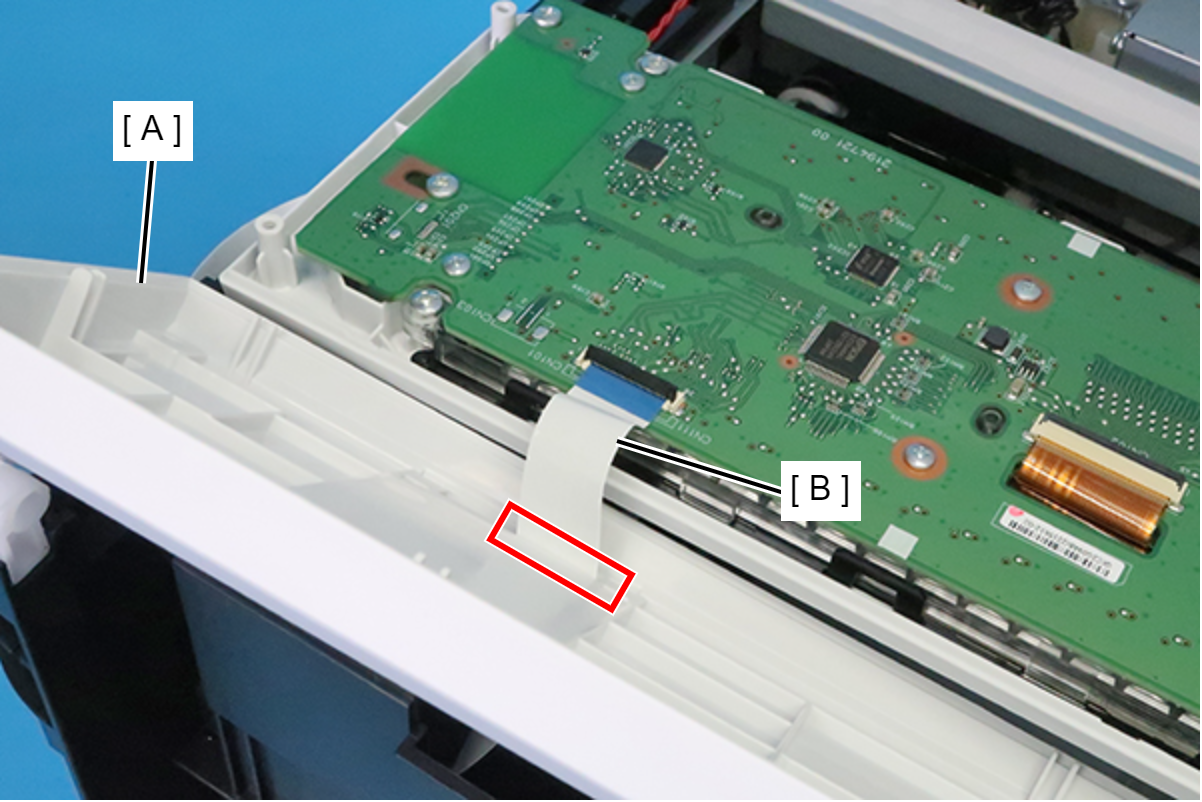

  18. Pull out the FFC (B) from the hole on the Panel Housing (A) to remove the Panel Assy.
