Waste ink pad counter
Required Tool
---
Procedure

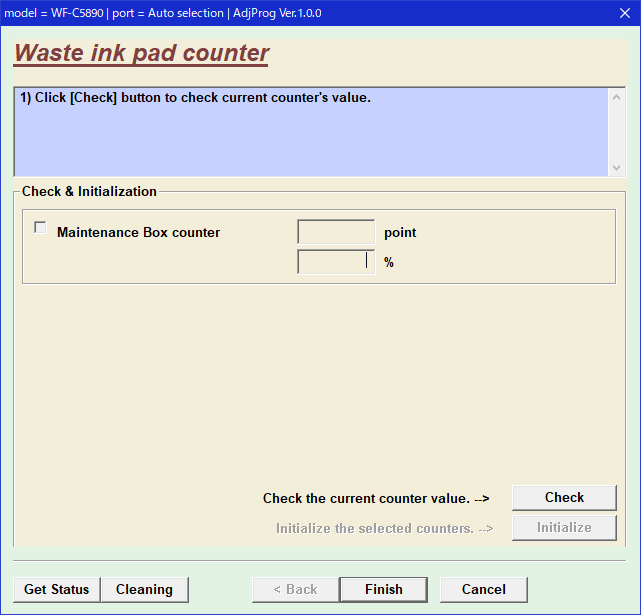

- Start the Adjustment Program, and select “Waste ink pad counter”.
- Press the Check button to check the current counter value.
