WF-M5899 Series, WF-M5399 Series Service Manual
WF-M5899 Series, WF-M5399 Series Service Manual
Revision History
Introduction
Notice:
About This Manual
Product Descriptions
Structure/Operating Principles
Installation and Setup
Troubleshooting
Disassembly & Assembly
Modes & Tools for Service
Adjustments & Additional Operations
Maintenance/Inspection
Appendix
PRECAUTIONS
Symbols Used in this Manual
Product Descriptions
Product Descriptions
Printer Specifications
Printer Specifications
Supported Paper
Printing Specifications
Copying Specifications (WF-M5899 Series only)
ADF Specifications (WF-M5899 Series only)
Scanner Specifications (WF-M5899 Series only)
Network Specifications/Fax Specifications
Network specifications
FAX Specifications (WF-M5899 Series only)
Options Specifications
Consumables Information
Structure/Operating Principle
Parts Names
WF-M5899 Series
WF-M5399 Series
Motor, Sensor, Clutch, and Solenoid Specifications
Printer Main Unit
Motors and solenoids
Ink detection and cover detection system sensors
Encoder sensors and PW sensor
Paper feed and conveyance system sensors and other sensors
Optional Paper Cassette
Motors and sensors
Scanner
Motors and sensors
ADF
Motors and sensors
Printhead
Head angular mecha adjustment
Carriage Mechanism
Shifting PG (APG Mechanism)
APG Lever actions
PG type
Paper Loading/Paper Feed Mechanism
Paper Loading/Feed Path
Detail of Paper Loading/Feed Mechanism
Ink Supply Mechanism
Operating principles
Ink leak detection function
Ink System Mechanism
Operation Principle
Scanner / ADF Mechanism
Scanner Mechanism
ADF Mechanism
Schematics (Block Diagrams) / Wiring Diagrams
Block Wiring Diagram
Connection Diagram
Housing related
ADF/SCN related
Ink supply related
Ink System related
Carriage related
Paper feed related
Electric circuit component related
Options
Installation and Setup
Troubleshooting
Overview
Preliminary Check
Troubleshooting Workflow
Troubleshooting
Normal Errors
Fatal Errors
ADF/SCN error
ADF PID excess speed detection (error code: 100001)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ADF PID reverse detection (error code: 100002)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ADF PID lock detection (error code: 100003)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ADF PID excess load (error code: 100005)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ADF PID driving time (error code: 100006)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
HP detection failure (error code: 100016)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Contact detection distance exceeded (error code: 100017)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Measurement failure (error code: 100020)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LED light failure (error code: 100032)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
MAIN-B connection error (error code: 100048)
Occurrence condition
Suspected cause
Troubleshooting
MAIN-B ROM level mismatch error (error code: 100050)
Occurrence condition
Suspected cause
Troubleshooting
Paper jam error (error code: 100054)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB PID excess speed detection (flatbed) (error code: 100065)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB PID reverse detection (error code: 100066)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB PID lock detection (error code: 100067)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB PID excess load (error code: 100069)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB PID driving time (error code: 100070)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB BS+ excess speed detection (flatbed) (error code: 100073)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB BS+ reverse detection (error code: 100074)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB BS+ lock detection (error code: 100075)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB BS+ excess load (error code: 100077)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FB BS+ driving time (error code: 100078)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR error
CR PID driving time error (error code: 000020)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR PID excess load error (error code: 000021)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR PID excess speed error (error code: 000022)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR PID reverse error (error code: 000023)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR PID lock error (error code: 000024)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR PID underspeed error (error code: 000025)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR load position driving time error (error code: 000030)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR load position excess load error (error code: 000031)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR load position reverse error (error code: 000033)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR load position excess speed error (error code: 000032)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CR PID excess speed error 2 (error code: 000027)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF error
PF PID driving time error (error code: 000040)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF PID excess load error (error code: 000041)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF PID excess speed error (error code: 000042)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF PID reverse error (error code: 000043)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF PID lock error (error code: 000044)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF load position driving time error (error code: 000050)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF load position excess load error (error code: 000051)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF load position excess speed error (error code: 000052)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PF load position reverse error (error code: 000053)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF error
ASF PID driving time error (error code: 000060)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF PID excess load error (error code: 000061)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF PID excess speed error (error code: 000062)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF PID reverse error (error code: 000063)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF PID lock error (error code: 000064)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF load position driving time error (error code: 000070)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF load position excess load error (error code: 000071)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF load position excess speed error (error code: 000072)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
ASF load position reverse error (error code: 000073)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Additional ASF error
2nd ASF PID driving time error (error code: 000080)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF PID excess load error (error code: 000081)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF PID excess speed error (error code: 000082)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF PID reverse error (error code: 000083)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF PID lock error (error code: 000084)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF load position driving time error (error code: 000090)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF load position excess load error (error code: 000091)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF load position excess speed error (error code: 000092)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
2nd ASF load position reverse error (error code: 000093)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF PID driving time error (error code: 000540)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF PID excess load error (error code: 000541)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF PID excess speed error (error code: 000542)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF PID reverse error (error code: 000543)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF PID lock error (error code: 000544)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF load position driving time error (error code: 000550)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF load position excess load error (error code: 000551)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF load position excess speed error (error code: 000552)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
3rd ASF load position reverse error (error code: 000553)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF PID driving time error (error code: 000560)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF PID excess load error (error code: 000561)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF PID excess speed error (error code: 000562)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF PID reverse error (error code: 000563)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF PID lock error (error code: 000564)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF load position driving time error (error code: 000570)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF load position excess load error (error code: 000571)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF load position excess speed error (error code: 000572)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
4th ASF load position reverse error (error code: 000573)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS error
IS PID driving time error (error code: 000100)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS PID excess load error (error code: 000101)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS PID excess speed error (error code: 000102)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS PID reverse error (error code: 000103)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS PID lock error (error code: 000104)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS load position driving time error (error code: 000110)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS load position excess load error (error code: 000111)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS load position excess speed error (error code: 000112)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
IS load position reverse error (error code: 000113)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Ink leak error (error code: 034841)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Additional LIFT error
LFT2 PID driving time error (error code: 000180)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT2 PID excess load error (error code: 000181)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT2 PID excess speed error (error code: 000182)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT2 PID lock error (error code: 000184)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT3 PID driving time error (error code: 000200)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT3 PID excess load error (error code: 000201)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT3 PID excess speed error (error code: 000202)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT3 PID lock error (error code: 000204)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT4 PID driving time error (error code: 000220)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT4 PID excess load error (error code: 000221)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT4 PID excess speed error (error code: 000222)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
LFT4 PID lock error (error code: 000224)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Emergency stop error caused by cover opening (error code: 030004)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Printhead electrical error
X-Hot detect error (pre printing) (error code: 031001)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
X-Hot detect error (after flushing) (error code: 031002)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Transistor temperature error (error code: 031003)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Head temperature error (error code: 031004)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Printhead fuse blown error (error code: 031006)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
VBS over-voltage error (error code: 031008)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
HCS error (error code: 031011)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Additional cassette FW error
Over adding connection error (error code: 032001)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Unsupported additional cassette connection error (error code: 032002)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition contact state error 1 (Stop IR) (error code: 032051)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition contact state error 2 (except Stop_IR) (error code: 032052)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition recovery mode error (error code: 032101)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 1 (error code: 032151)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 2 (error code: 032152)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 3 (error code: 032153)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 4 (error code: 032154)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 5 (error code: 032155)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 6 (error code: 032156)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 7 (error code: 032157)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 8 (error code: 032158)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 9 (error code: 032159)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 10 (error code: 032160)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 11 (error code: 032161)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Addition communication error 12 (error code: 032162)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CSIC error
Other ink device error (error code: 033003)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Other ink device error (Defective SOC) (error code: 033004)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Other ink device error (Defective Flash) (error code: 033005)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CRCM access error (read) (error code: 033006)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CRCM access error (write) (error code: 033007)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CRCM access error (firmware failure) (error code: 033008)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Print not allowed when printing special jobs (error code: 033009)
Suspected cause
CSIC access error (hardware failure) (error code: 033010)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
CSIC access error (hardware failure) (error code: 033011)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Home position seek error (error code: 034001)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Motor out of control (error code: 034003)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
FW error
Error caused by other than printer device (error code: 060001)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Driver mismatch error (error code: 060002)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Error due to PCD verify command (error code: 060003)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
PCD SOC versions mismatch error (error code: 060008)
Suspected cause
WiFi board failure (error code: 202620)
Suspected cause
Related parts
Troubleshooting
PLD board failure (error code: 203201)
Suspected cause
Related parts
Troubleshooting
Information Collection at System Error
Troubleshooting from Failure Symptom
ADF/scanner trouble
Image defect
Occurrence condition
Suspected cause
Related parts
Image defect
Paper feeding failure
Occurrence condition
Suspected cause
Related parts
Paper feeding failure
Ink bleed
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Nozzles missing
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Blank printout (blank paper ejected)
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Print position offset in CR operation direction
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Print position offset in feed direction
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Print smudges
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Lines not smooth and ruled-line deviation
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Double feeding
Occurrence condition
Suspected cause
Related parts
Troubleshooting
The product cannot be powered on
Occurrence condition
Suspected cause
Related parts
Troubleshooting
White or black bands
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Paper damaged or bent
Occurrence condition
Suspected cause
Related parts
Troubleshooting
Fax Troubleshooting
Reports / Logs
Reports/Logs related to Fax communication result
Fax Log
Print Procedure
Print Settings
Output Sample
Indications of destination number (in priority order)
Case example
Protocol trace
Print Procedure
Output Sample
How to read the Command / Response log
Example) Type = Reception
DIS (DTC) / DCS perspective
DIS (DTC) Capability Bit Table
DCS Bit Assignment for Capabilities
Fax Function Check Report
Print Procedure
Output Sample
Error code list
Telephone line based faxing
IP Faxing
Service Parameters
FAX Maintenance Mode
Target range for initialization
Entering Fax Maintenance Mode
How to change settings in FAX Maintenance Mode 1 (select setting item)
Example of setting change
Fax parameter list Option channel 1 (CH1)
Option channel 1 (CH1)
Fax Parameter List Optional Channels 2 and 3 (CH2, CH3)
Optional channels 2 and 3 (CH2 and CH3)
Fax related user special parameters.
User Special Mode starting method
Emergency retrieval of received fax documents (FAX to PC)
Emergency Retrieval of Fax Received Originals (FAX to Memory)
Troubleshooting
For telephone line based faxing
Step 1: Check and identify the symptom of trouble accurately
Step 2: Check the error, and identify its cause
Step 3: Correct the trouble.
Required Product Information for Fax Trouble Reporting
Troubleshooting from fax function diagnosis
Troubleshooting from error code
For IP faxing
IP Faxing Troubleshooting
Disassembly/Reassembly
Repair Work Overview
Precautions
Orientation Definition
Recommended Tools
Disassembly Flowchart
WF-M5899 Series Disassembly Flowchart
Exterior Housing/Covers
Ink Supply Mechanism
ADF/SCN Mechanism
Electric Circuit Components
Ink System Mechanism
Carriage Mechanism
Paper Feed Mechanism (1/2)
Paper Feed Mechanism (2/2)
Option
WF-M5399 Series Disassembly Flowchart
Exterior Housing/Covers
Ink Supply Mechanism
Electric Circuit Components
Ink System Mechanism
Carriage Mechanism
Paper Feed Mechanism (1/2)
Paper Feed Mechanism (2/2)
Option
Parts Layout Diagrams
Exterior Housing/Covers
WF-M5899 Series
WF-M5399 Series
Ink Supply Mechanism
ADF/SCN Mechanism
Ink System Mechanism
Carriage Mechanism
Paper Feed Mechanism
Options
Electric Circuit Components
Operations Before/After Parts Exchange
Removing the Ink Packs
Removing the Maintenance Box
Unlocking the CR Unit
Unlocking the CR Unit (WF-M5899 Series)
Unlocking the CR Unit (WF-M5399 Series)
Disassembly & Assembly
Housing (WF-M5899 Series)
Maintenance Box Cover
ASF Front Cover
Housing Left
Housing Right
Housing Upper
Panel Assy
Cover Open Sensor
Housing (WF-M5399 Series)
Maintenance Box Cover
Rear Housing
Housing ASF
Housing Left
Housing Right
Printer Cover
Housing Top
Panel Assy
Cover Open Sensor
Ink Supply Mechanism
RIPS Front Cover
Bind Screw2.5 x 20 (w/washer) (WF-M5899 Series)
Bind Screw2.5 x 20 (w/washer) (WF-M5399 Series)
Guide Cover (WF-M5899 Series)
Guide Cover (WF-M5399 Series)
RIPS Unit (WF-M5899 Series)
RIPS Unit (WF-M5399 Series)
Temperature and Humidity Sensor (WF-M5899 Series)
Temperature and Humidity Sensor (WF-M5399 Series)
Ink Leak Sensor (WF-M5899 Series)
Ink Leak Sensor (WF-M5399 Series)
Front Cover Open Sensor (WF-M5899 Series)
Front Cover Open Sensor (WF-M5399 Series)
RIPS Unit Lower (WF-M5899 Series)
RIPS Unit Lower (WF-M5399 Series)
RIPS Cover Lock Lever (WF-M5899 Series)
RIPS Cover Lock Lever (WF-M5399 Series)
CSIC Board (WF-M5899 Series)
CSIC Board (WF-M5399 Series)
Decompression Pump (WF-M5899 Series)
Decompression Pump (WF-M5399 Series)
ADF/SCN Mechanism (WF-M5899 Series only)
Document Mat
ADF Document Support
ADF Paper Feed Roller Unit
ADF Front Cover
Rear ADF Cover
ADF/SCN Unit
Hinge Assy (Right)
Hinge Assy (Left)
Electric Circuit Components
Main Board (WF-M5899 Series)
Main Board (WF-M5399 Series)
Power Supply Assy (WF-M5899 Series)
Power Supply Assy (WF-M5399 Series)
Outlinger Board
Wireless Lan Module (WF-M5899 Series)
Wireless Lan Module (WF-M5399 Series)
Fax Assy
PDL Board (WF-M5899 Series)
PDL Board (WF-M5399 Series)
Ink System
Upper Cap FFC Cover (WF-M5899 Series)
Upper Cap FFC Cover (WF-M5399 Series)
Ink System Unit (WF-M5899 Series)
Ink System Unit (WF-M5399 Series)
Carriage Mechanism
CR Scale Spring (WF-M5899 Series)
CR Scale Spring (WF-M5399 Series)
CR Scale (WF-M5899 Series)
CR Scale (WF-M5399 Series)
Head Upper Cover (WF-M5899 Series)
Head Upper Cover (WF-M5399 Series)
Ink Tube Joint Cover (WF-M5899 Series)
Ink Tube Joint Cover (WF-M5399 Series)
Bind Screw3 x 12 (w/washer) (WF-M5899 Series)
Bind Screw3 x 12 (w/washer) (WF-M5399 Series)
Head Screw Assy (WF-M5899 Series)
Head Screw Assy (WF-M5399 Series)
Printhead (WF-M5899 Series)
Printhead (WF-M5399 Series)
Head FFC Assy (WF-M5899 Series)
Head FFC Assy (WF-M5399 Series)
Ink Supply Tube (WF-M5899 Series)
Ink Supply Tube (WF-M5399 Series)
Extension Spring 27.7 (WF-M5899 Series)
Extension Spring 27.7 (WF-M5399 Series)
CR Motor (WF-M5899 Series)
CR Motor (WF-M5399 Series)
CR Unit (WF-M5899 Series)
CR Unit (WF-M5399 Series)
CR Encoder (WF-M5899 Series)
CR Encoder (WF-M5399 Series)
CR Timing Belt (WF-M5899 Series)
CR Timing Belt (WF-M5399 Series)
PW Sensor (WF-M5899 Series)
PW Sensor (WF-M5399 Series)
Paper Feed Mechanism
Rear Unit
Paper Cassette 1st Assy
PF Encoder Board (WF-M5899 Series)
PF Encoder Board (WF-M5399 Series)
PF Scale (WF-M5899 Series)
PF Scale (WF-M5399 Series)
Star Wheel Unit (WF-M5899 Series)
Star Wheel Unit (WF-M5399 Series)
ASF Housing Assy (WF-M5899 Series)
ASF Housing Assy (WF-M5399 Series)
Rear ASF Assy (WF-M5899 Series)
Rear ASF Assy (WF-M5399 Series)
Paper Guide Upper Assy Spring (WF-M5899 Series)
Paper Guide Upper Assy Spring (WF-M5399 Series)
Paper Guide Upper Assy (WF-M5899 Series)
Paper Guide Upper Assy (WF-M5399 Series)
PE Assy(WF-M5899)
PE Assy (WF-M5399 Series)
PE Sensor (WF-M5899 Series)
PE Sensor (WF-M5399 Series)
Options
E-ring (plastic)
One-way Gear
Lift Up Sector Gear 40T
Lift Up Gear 30T
Paper Feed Detector Lever
Torsion Spring 0.9
Vertical Feed Roller
Rear Lower Cover Assy
Optional Paper Cassette Rear Cover
Optional Paper Cassette Right Cover
Optional Paper Cassette Rear Cover Slider
Paper Guide Sub
Optional Paper Cassette Left Cover
Hopper Drive Assy
ASF Encoder Assy
Optional Paper Cassette Main Board Assy
Lift Motor
ASF Motor
Modes & Tools for Service
Modes for Service
Menu configuration
Service mode startup
Adjustments & Additional Operations
List of Tools/Software/Consumables for Adjustments
Adjustment Program
Tools and Jigs
Repair Parts Adjustment/Checks Items and Order
ADF/SCN Mechanism
Electric Circuit Components
Ink Supply Mechanism
Ink System Mechanism
Carriage Mechanism
Paper Feed Mechanism
Adjustments and Check Items Purpose
Mechanical Adjustments and Inspections
Software Adjustments and Inspections
Adjustments and Check Items Details
Mechanical Adjustments and Inspections
PG adjustment
Tools
Preparing the thickness gauge
Application procedure of Teflon tape
PG adjustment procedure
Ink leak check
Leak check procedure
Software Adjustments and Inspections
Initialize Setting
EEPROM data copy
Required Tool
Procedure
Initial settings
Required Tool
Procedure
Head ID Input
Required Tool
Procedure
Initialize PF deterioration offset
Required Tool
Procedure
Initialize PW sensor deterioration counter
Required Tool
Procedure
Adjustment (Mechanical)
Motor heat protection control
Required Tool
Parts
Procedure
Scanner motor heat protection control
Required Tool
Parts
Procedure
PE detector confirmation
Required Tool
Procedure
Adjustment (Mechanical Print Adjustment)
Head angular mecha adjustment
Required Tool
Adjustment pattern
Judgment
Preparation
Procedure
Adjustment (Print Adjustment by Program)
PTS delay adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
Head angular adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
Bi-D adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
Paper skew adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
PW/First dot position adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
PF/EJ adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
PF band adjustment
Required Tool
Adjustment pattern
Judgment
Procedure
Adjustment (Program)
PE adjustment
Required Tool
Procedure
APG offset adjustment
Required Tool
Procedure
Nozzle rank categorize
Required Tool
Procedure
Maintenance
Head cleaning
Required Tool
Procedure
Ink eject
Required Tool
Procedure
Head ink eject
Required Tool
Procedure
Ink charge
Required Tool
Procedure
Head ink charge
Required Tool
Procedure
Waste ink pad counter
Required Tool
Procedure
Temperature and humidity sensor check
Required Tool
Procedure
Touch panel check
Required Tool
Procedure
Unlock the CR unit
Required Tool
Procedure
Shipping setting
Required Tool
Procedure
Printer startup mode selection
Required Tool
Procedure
Appendix
Final check pattern print
Required Tool
Procedure
EEPROM dump
Required Tool
Procedure
Printer information check
Required Tool
Procedure
Paper feed test
Required Tool
Procedure
Maintenance/Inspection
Overview
Storing
Moving or Transporting the Printer
WF-M5899 Series transport preparations
WF-M5399 Series transport preparations
Life/Periodical Replacement Parts
Cleaning
Exterior parts such as housing
Inside the printer
Rubber or plastic rollers in the paper feed mechanism such as LD Roller/Pickup Roller
Scanner Glass
Ink System Unit (Wiper and Cap)
Tools
Cleaning procedure
Lubrication
Lubrication points list
Lubrication 1
Lubrication 2
Lubrication 3
Lubrication 4
Lubrication 5
Lubrication 6
Lubrication 7
Lubrication 8
Lubrication 9
Lubrication 10
Appendix
Repair Work Time List (MTTR)
WF-M5899 Series
WF-M5399 Series
Panel Menu Map
WF-M5899 Series
WF-M5399 Series
Part Names Used In This Manual
WF-M5899 Series
WF-M5399 Series
Optional Paper Cassette
Abbreviations List
Exploded Diagram/Parts List
#
Initialize PF deterioration offset
#
Required Tool
---
#
Procedure

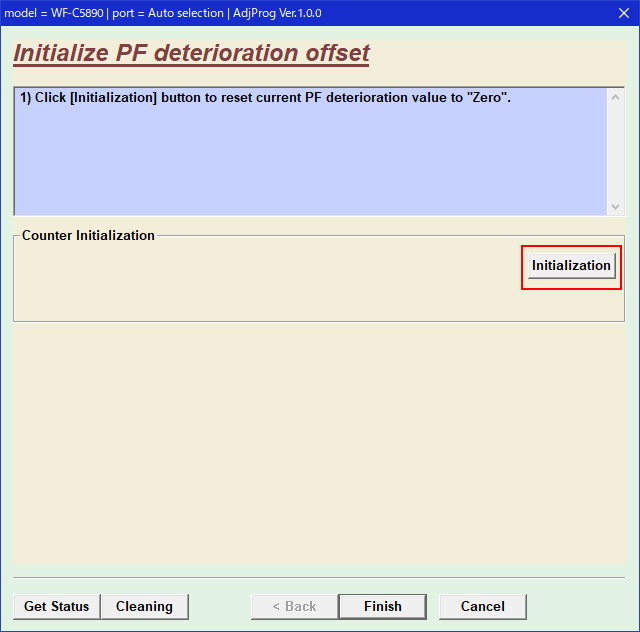

Start the Adjustment Program, and select “Initialize PF deterioration offset”.
Press the Initialization button, and initialize the concerned counter.
