Paper feed test
Required Tool
- Plain Paper (A4)
Procedure

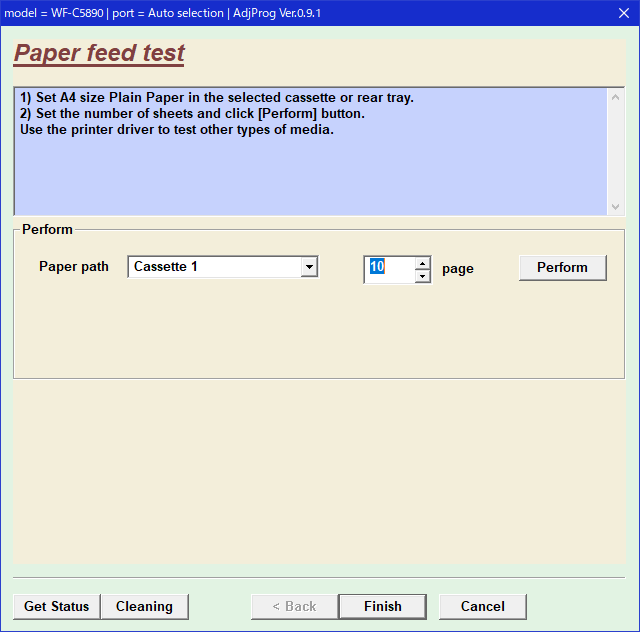

- Start the Adjustment Program, and select “Paper feed test”.
- Select “Paper path” and set the number of sheets, and then press the Perform button.
